109-9023, 135-5777-SL Deck Belt | Fits 72" Deck Exmark Lazer Z X, Next Lazer Z Series & More | Aramid Cord | 219"

109-9023 Deck Belt | 219"

Key Features

• Heavy-duty construction for high-torque lawn mower applications.
• Heat and oil-resistant synthetic rubber compound.
• High-strength tensile cords designed to minimize belt stretch.
• Outer wrap fabric provides increased durability and reduced slippage.

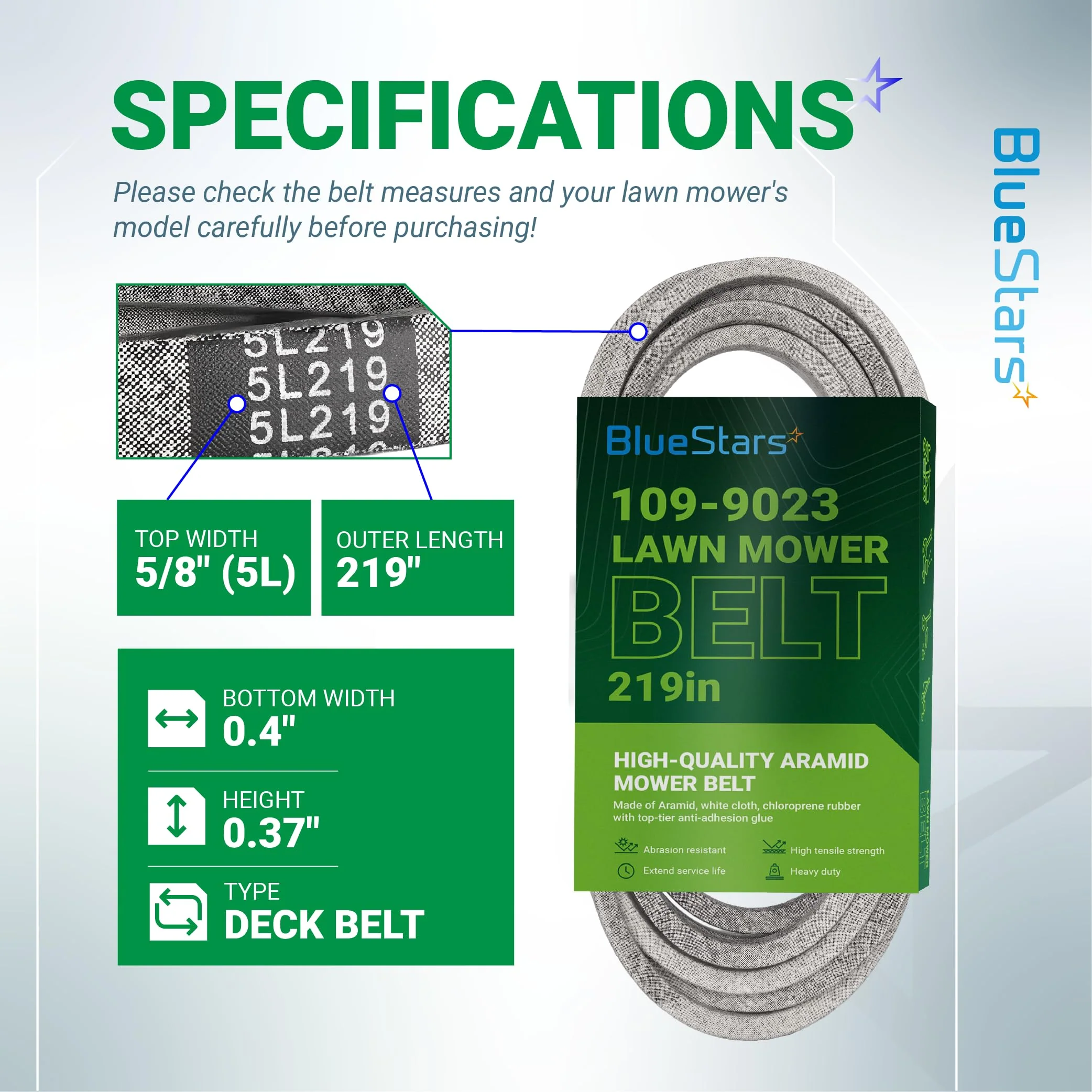

• Dimensions: 5/8 inch width x 219.25 inch effective length.

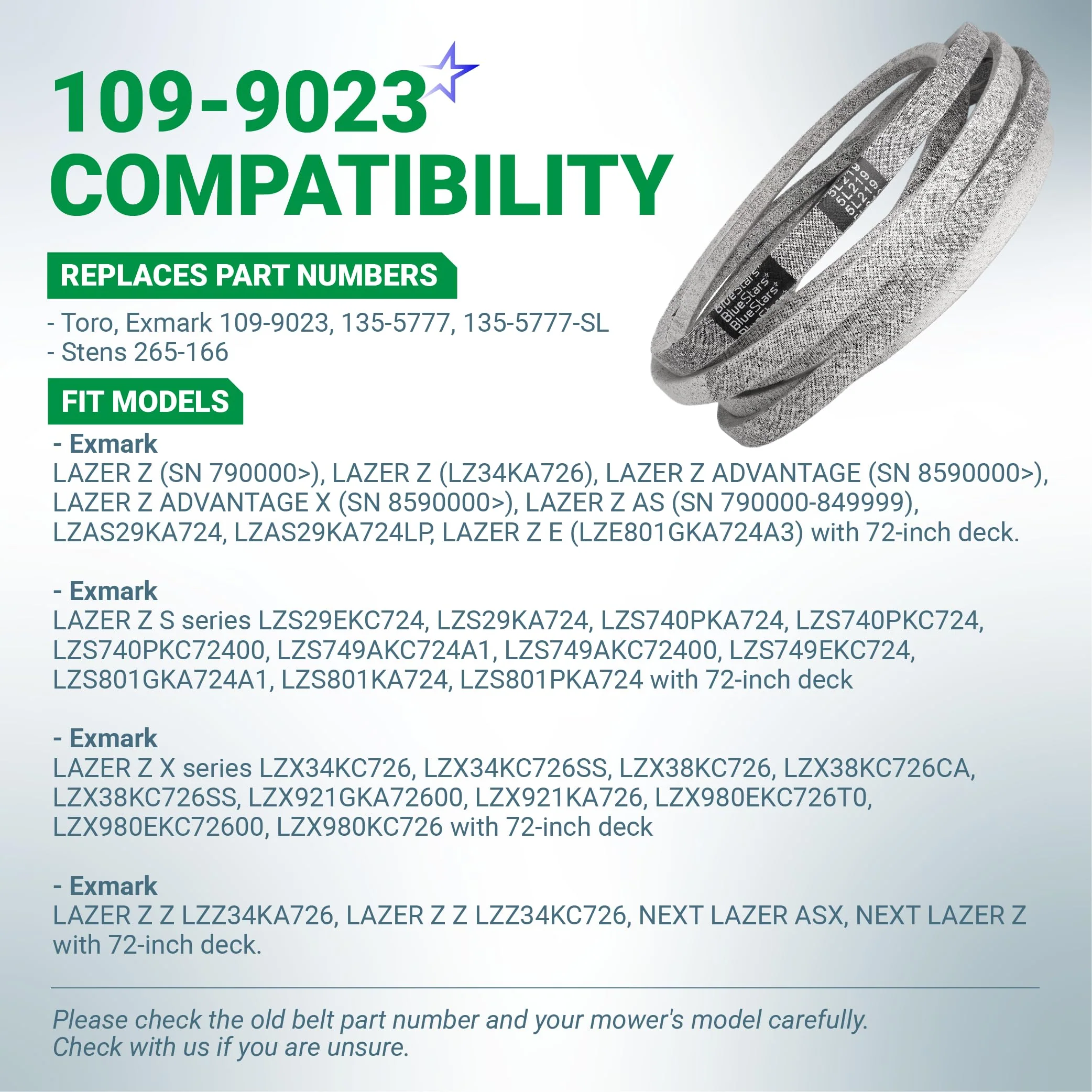

Replaces / Cross-Reference Part Numbers

• 109-9023
• 1099023
• 109-9023-SL
• 135-5777
• 135-5777-SL
• 14366
• 265-166
• B11099023
• P-1099023
• 810-CBL2489T

Compatibility & Fitment

• Fits Exmark Lazer Z X-Series zero-turn mowers with 72-inch cutting decks.
• Fits Exmark Next Lazer Z series zero-turn mowers with 72-inch cutting decks.

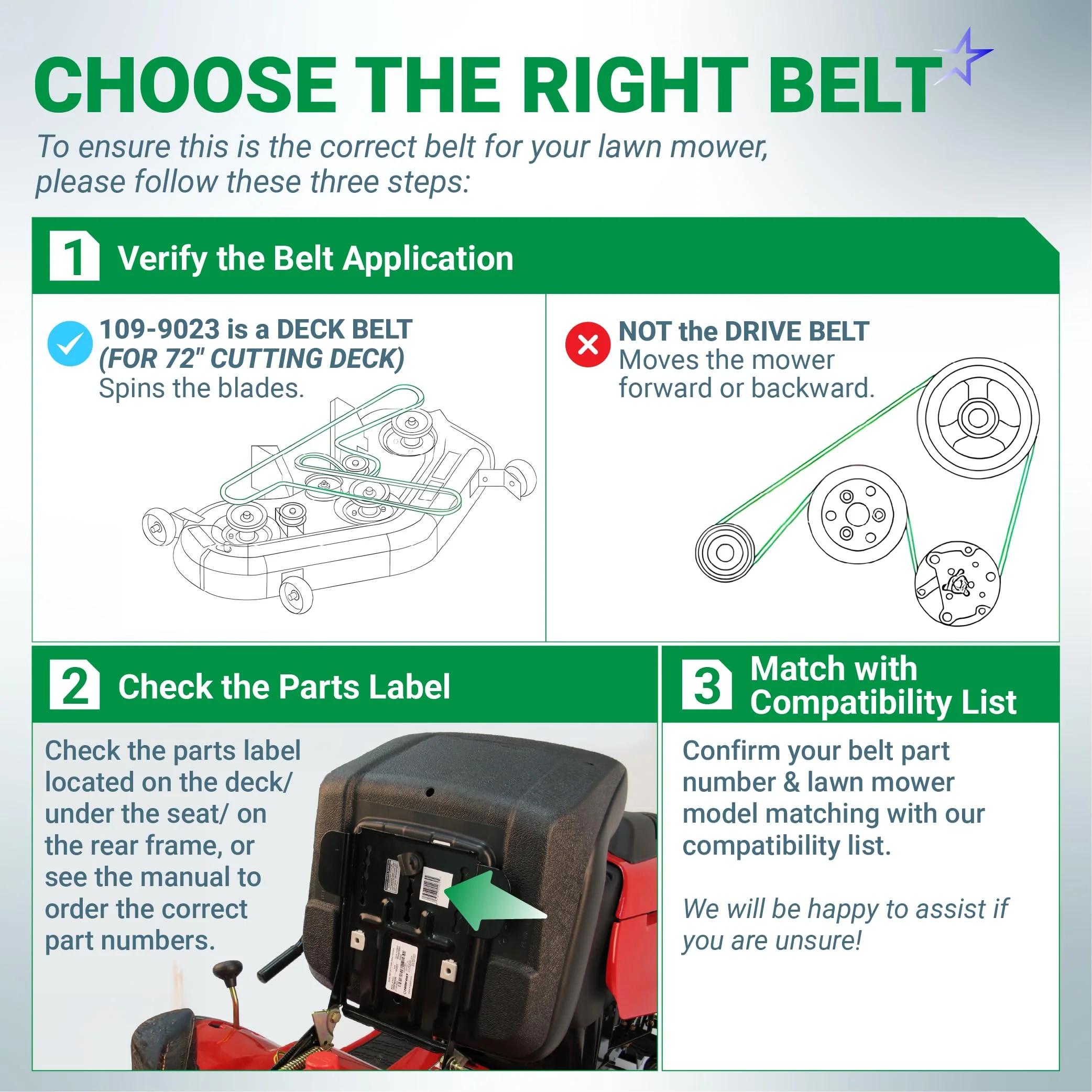

• Verify deck size and part number against your owner's manual before purchase.

When to Replace

• Visible fraying, cracks, or chunking along the belt edges.
• Excessive slippage or squealing during deck engagement.
• Significant thinning or elongation that prevents proper tensioning.
• Evidence of hardening or glazing due to prolonged heat exposure.

Installation Tips

• Lower the mower deck to the lowest position to improve access to pulleys.
• Remove the belt shields/covers to clear debris and provide enough space for routing.
• Release tension on the idler pulley assembly using a breaker bar or socket wrench.
• Verify that the belt is correctly seated in all pulley grooves before applying full tension.
• Cycle the deck engagement once and re-check tension to ensure the belt has seated properly.
