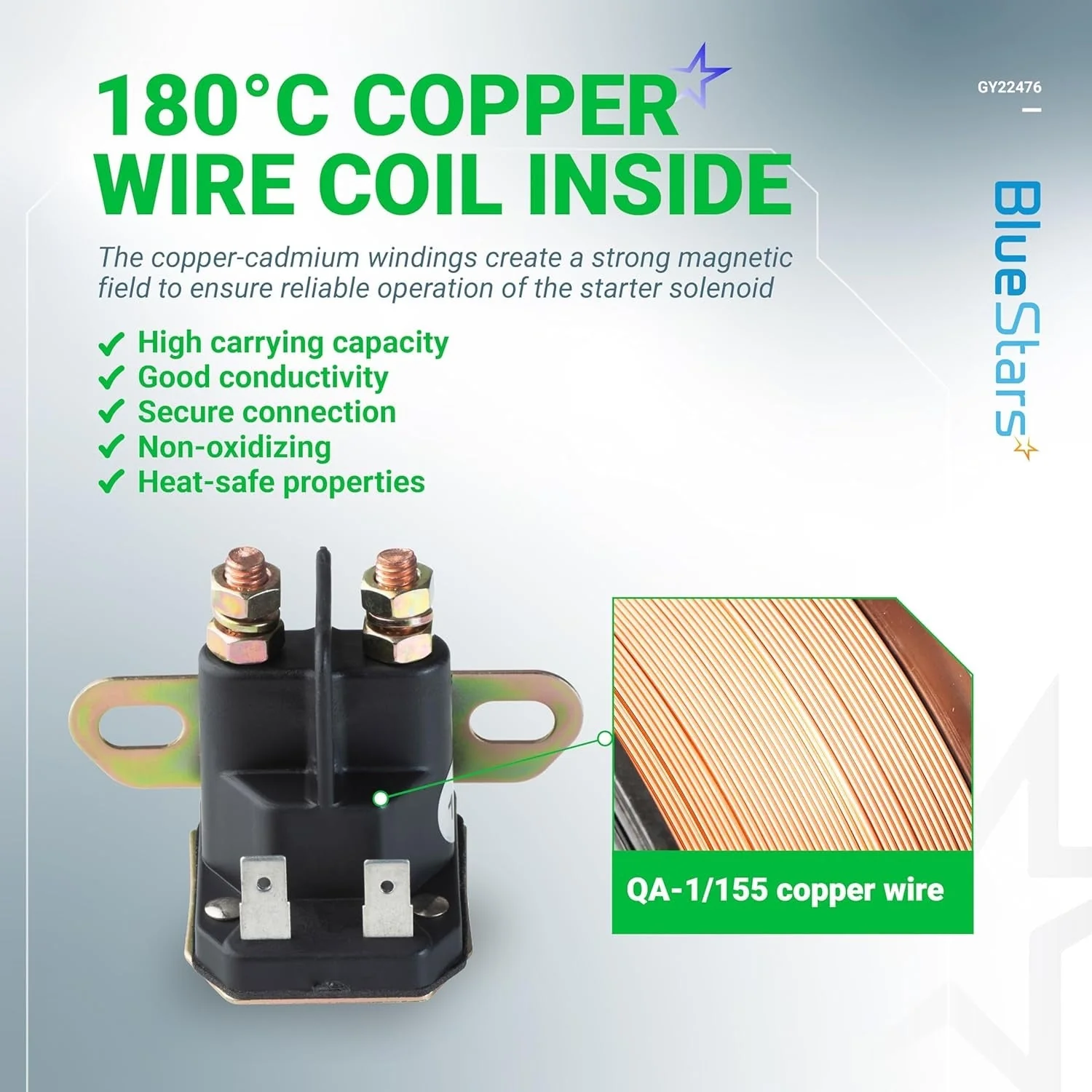

GY22476 AUC15346 Starter Solenoid (12V) - Fits John Deere Tractor D100 D105 D110 D120

GY22476 / AUC15346 Starter Solenoid 12V

Key Features

• Voltage: 12V DC
• Duty Cycle: Intermittent

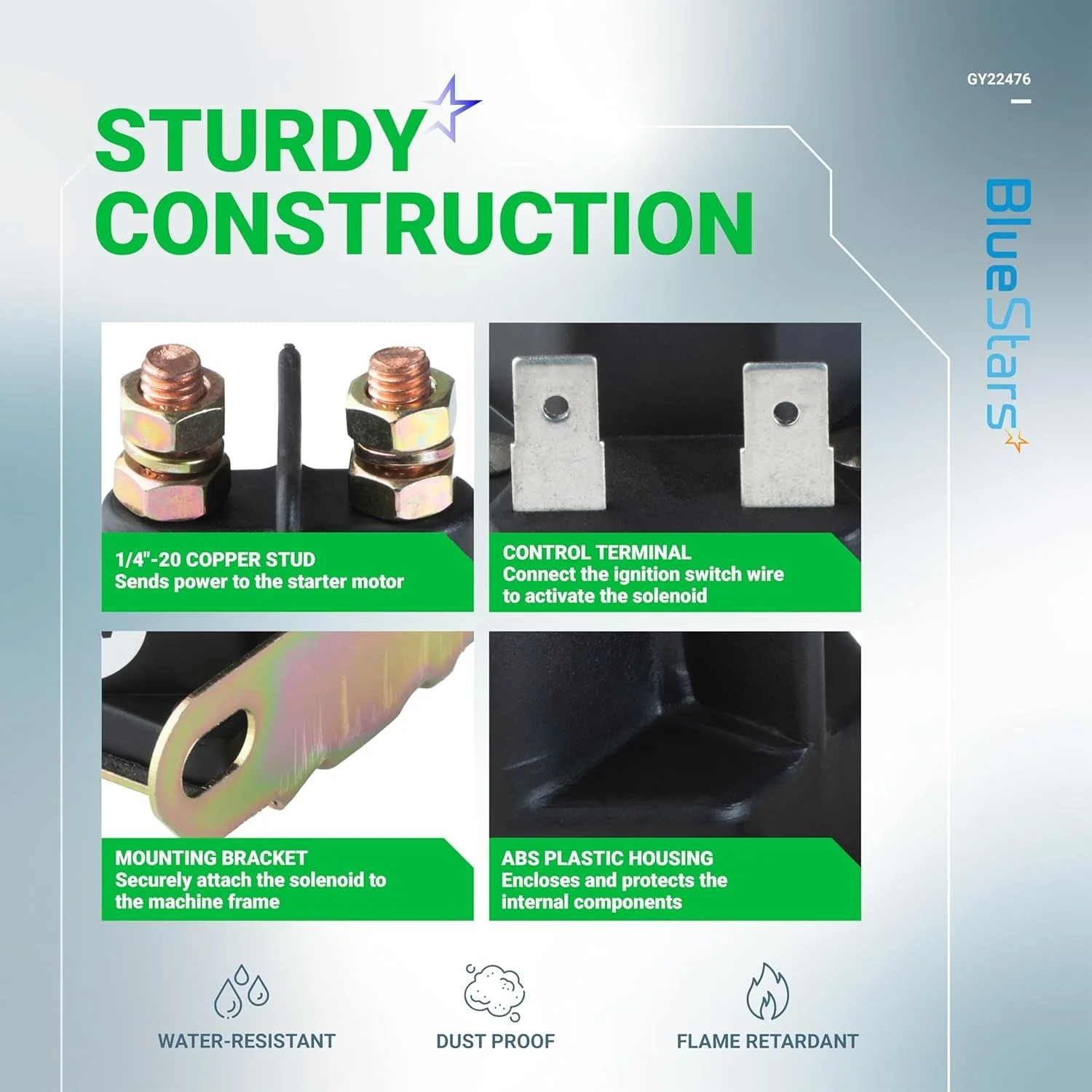

• Terminal Count: 4
• Battery Terminal: 1/4"-20
• Spade Terminal: 1/4"

Replaces / Cross-Reference Part Numbers

• GY22476
• AUC15346
• AM138068
• 435-151

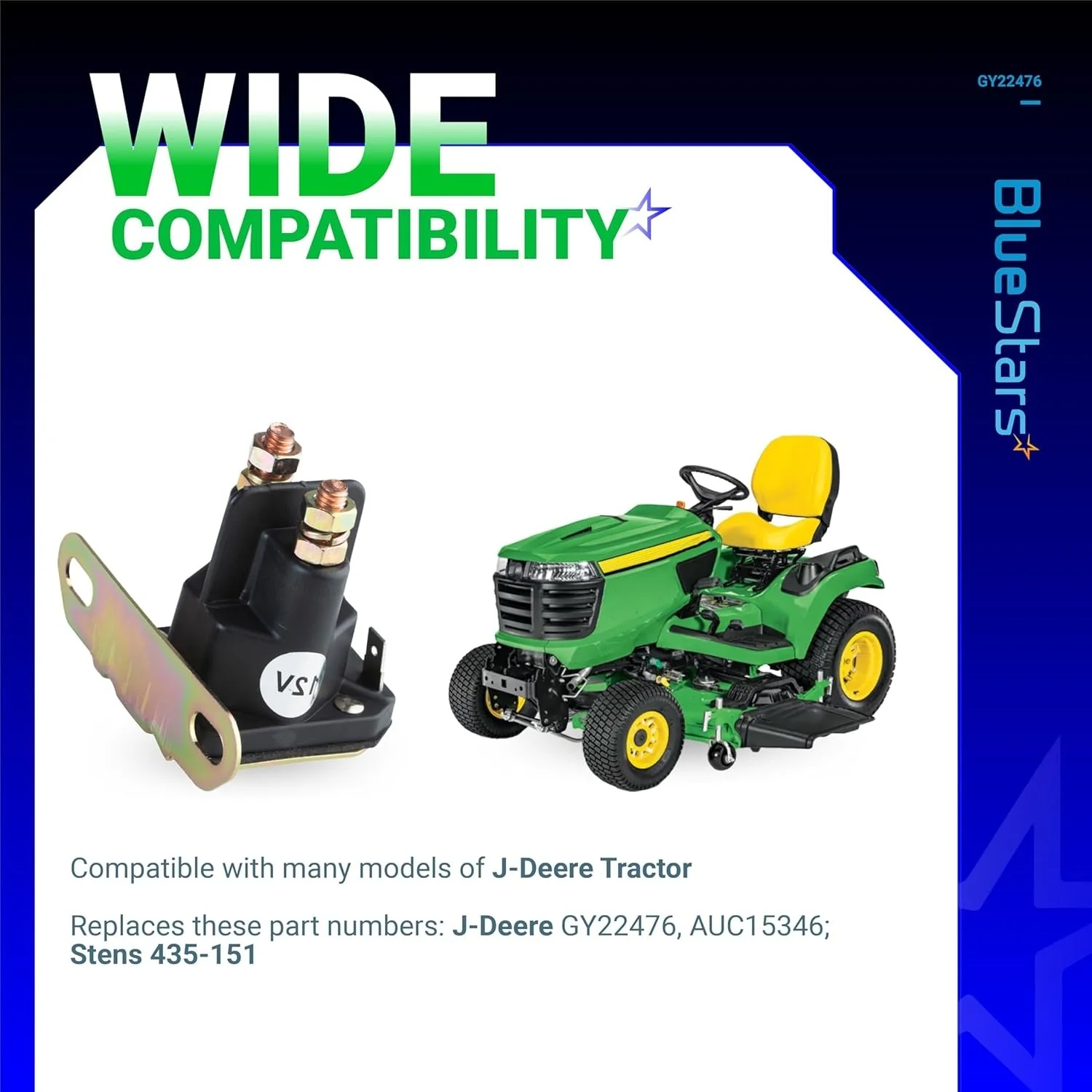

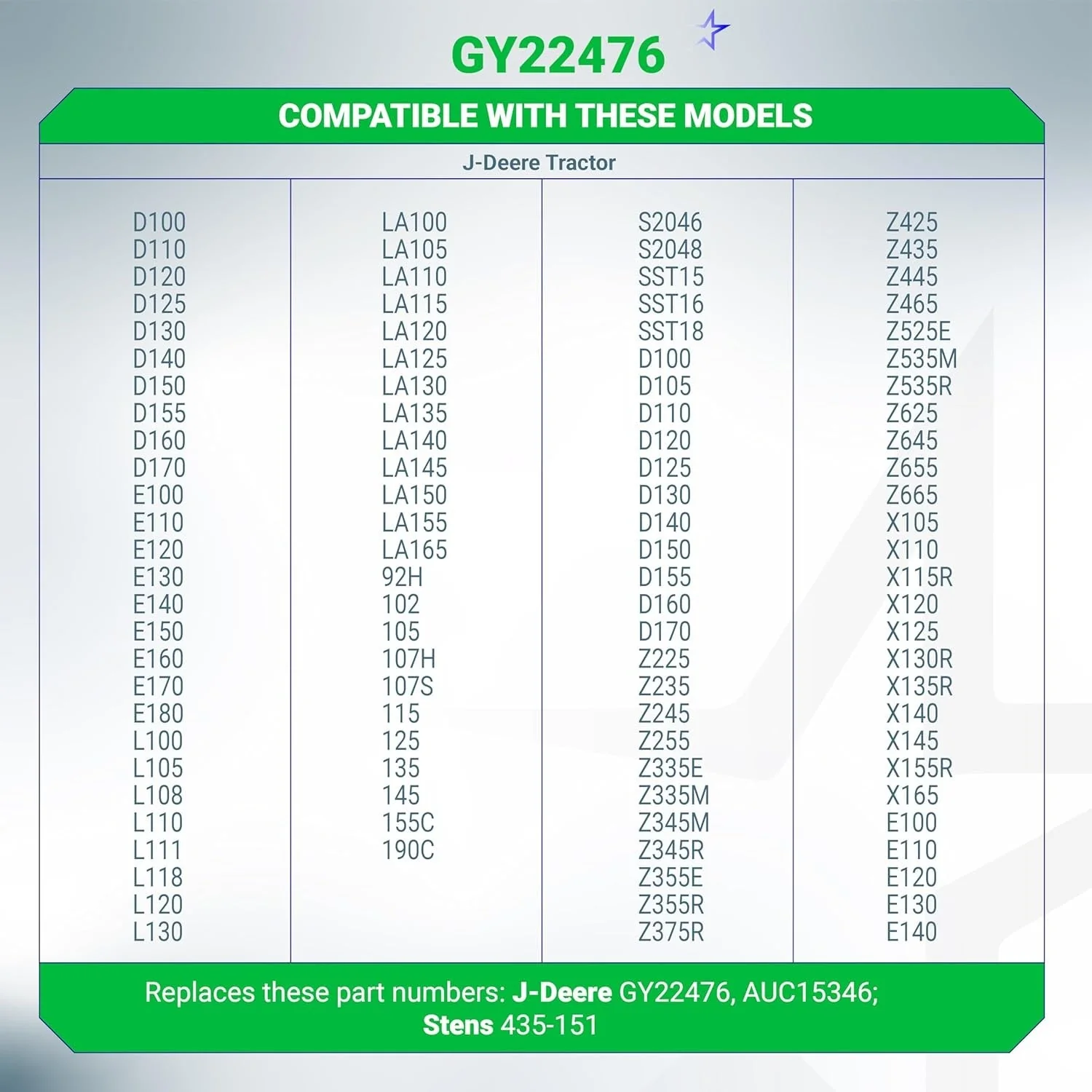

Compatibility & Fitment

• Fits John Deere D Series: D100, D105, D110, D120, D125, D130, D140, D150, D155, D160, D170
• Fits John Deere E Series: E100, E110, E120, E130, E140, E150, E160, E170, E180
• Fits John Deere L Series: L100, L105, L108, L110, L111, L118, L120, L130
• Fits John Deere LA Series: LA100, LA105, LA110, LA115, LA120, LA125, LA130, LA135, LA140, LA145, LA150, LA155, LA165, LA175
• Fits John Deere LT and LTR Series: LT150, LT160, LT170, LT180, LTR155, LTR166, LTR180
• Fits John Deere S Series: S2046, S2048, S2348
• Fits John Deere Z Series: Z225, Z235, Z245, Z255, Z335E, Z335M, Z345M, Z345R
• Fits John Deere Tractor Models: 102, 105

When to Replace

• Engine makes a single, sharp clicking sound but does not turn over.
• No sound or click when the ignition key is turned.
• The starter motor runs continuously, even after the engine has started.
• Intermittent starting problems where the engine starts sometimes but not others.

Installation Tips

• Always disconnect the negative battery terminal before beginning work.
• Photograph or label the wire positions on the old solenoid before removal.
• Ensure all new electrical connections are clean, free of corrosion, and securely tightened.
• Verify the new solenoid is mounted securely to its bracket.
• After installation, reconnect the battery and test the starting system.
