[1/4" Inverted Male Flare] PO2 12" inch Pigtail Propane Hose Connector, Connects QCC1 with Acme Nut for 2-Stage Auto Changeover Regulator

[1/4" Inverted Male Flare] PO2 12" inch Pigtail Propane Hose Connector, Connects QCC1 with Acme Nut - for 2-Stage Auto Changeover Regulator, Connects Propane Cylinder to RV Van Trailer Tank

Key Features

• Length: 12 inches

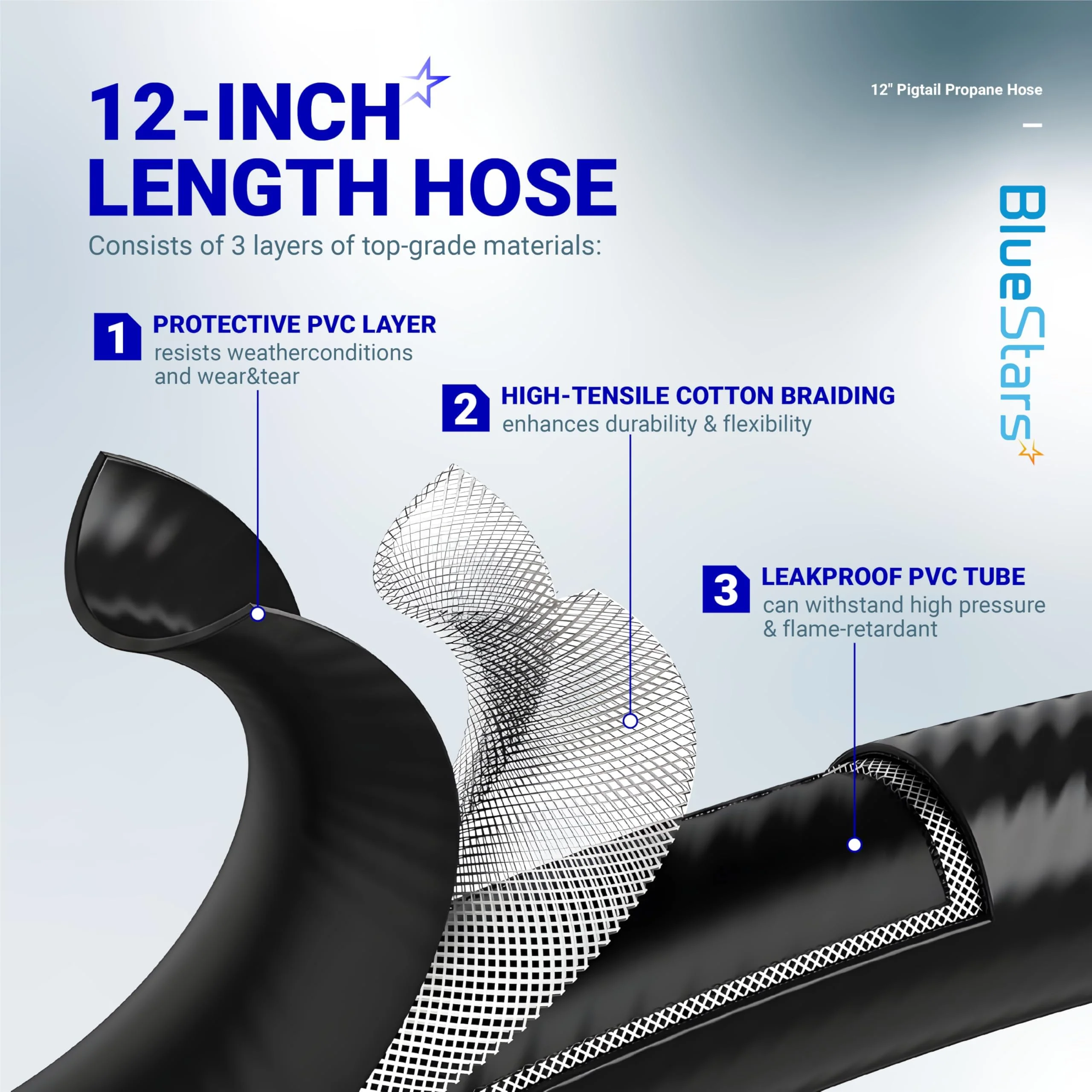

• Hose Material: Flexible thermoplastic

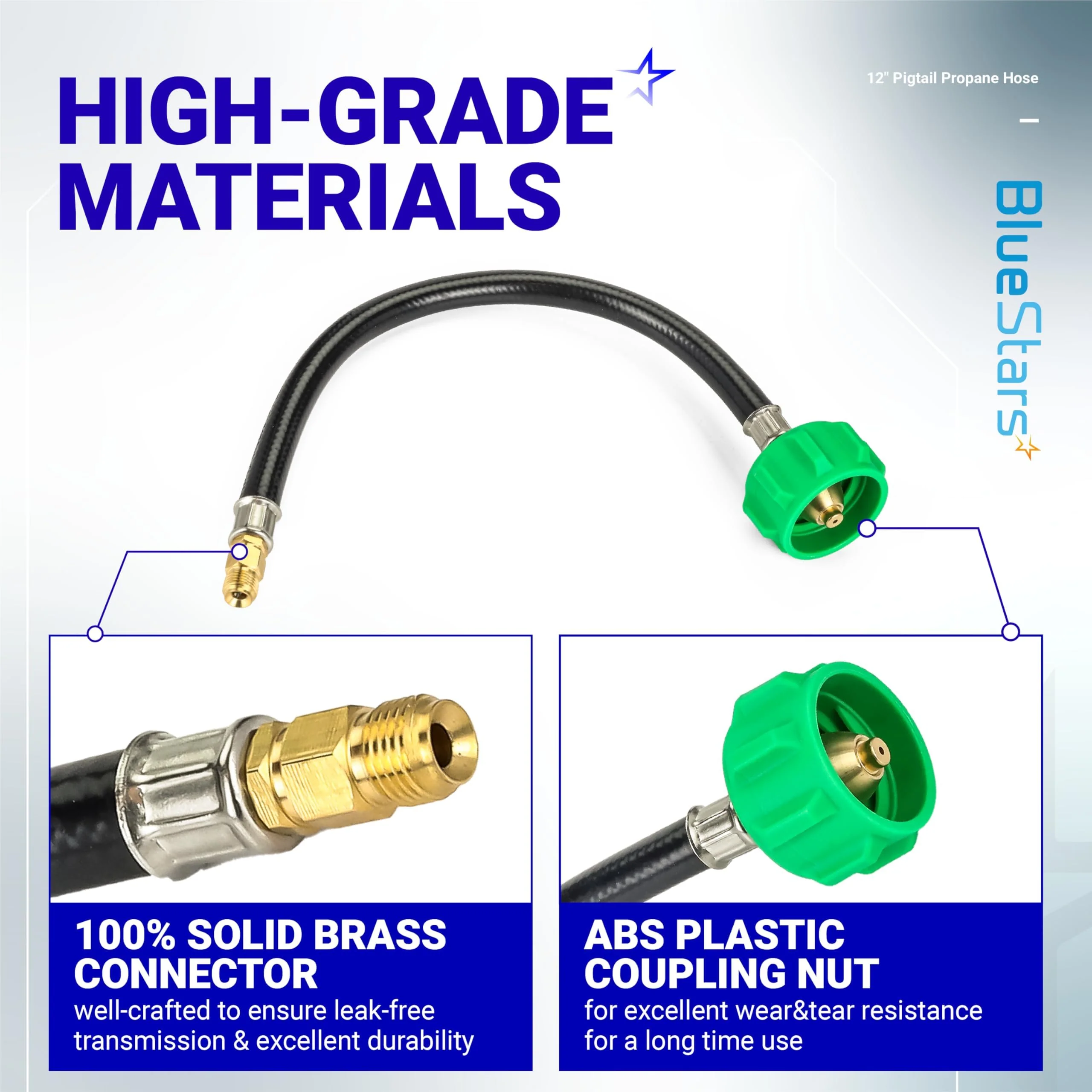

• Fittings Material: Solid brass for durability and corrosion resistance

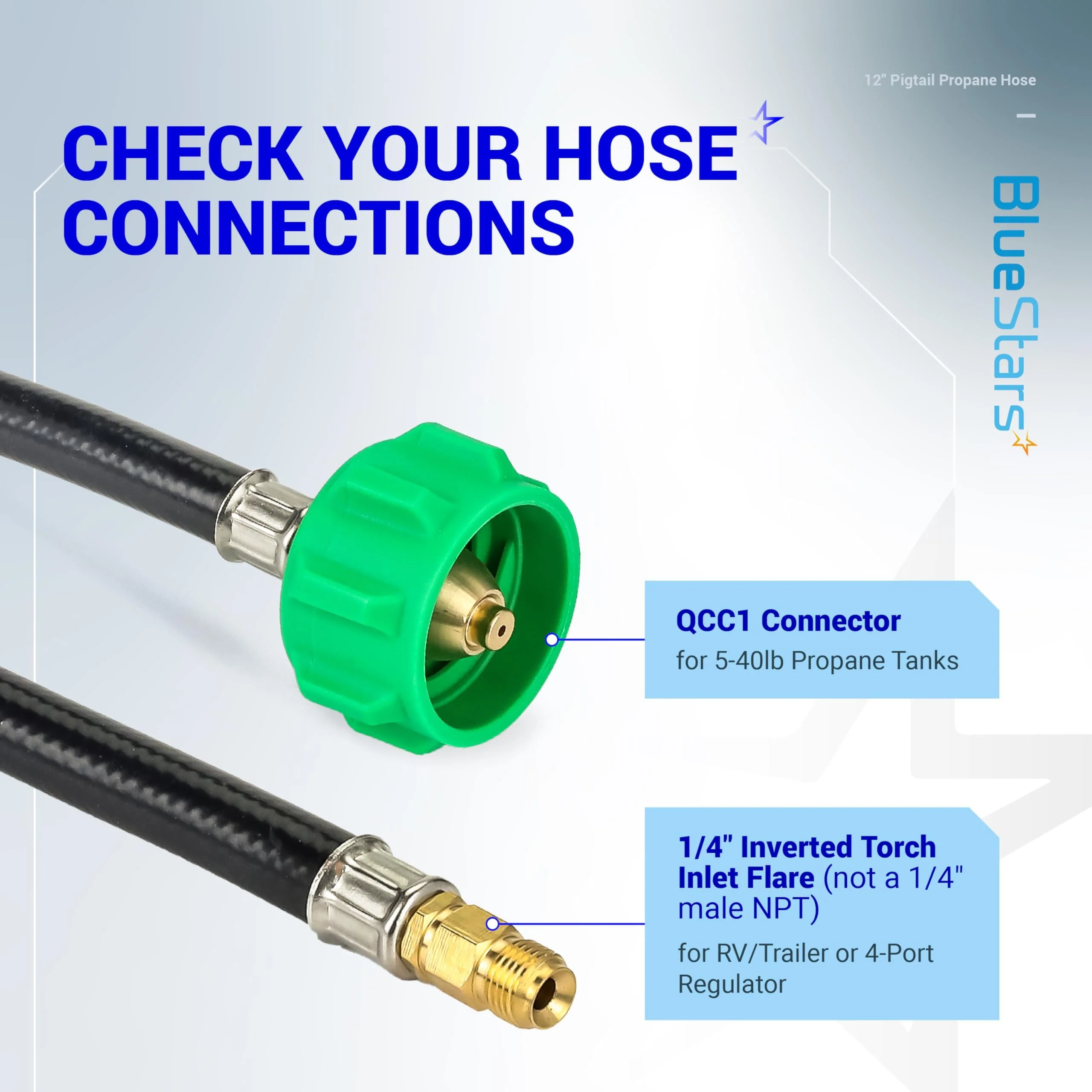

• Tank Connection: QCC1 (Type 1) with large plastic Acme nut for hand-tightening

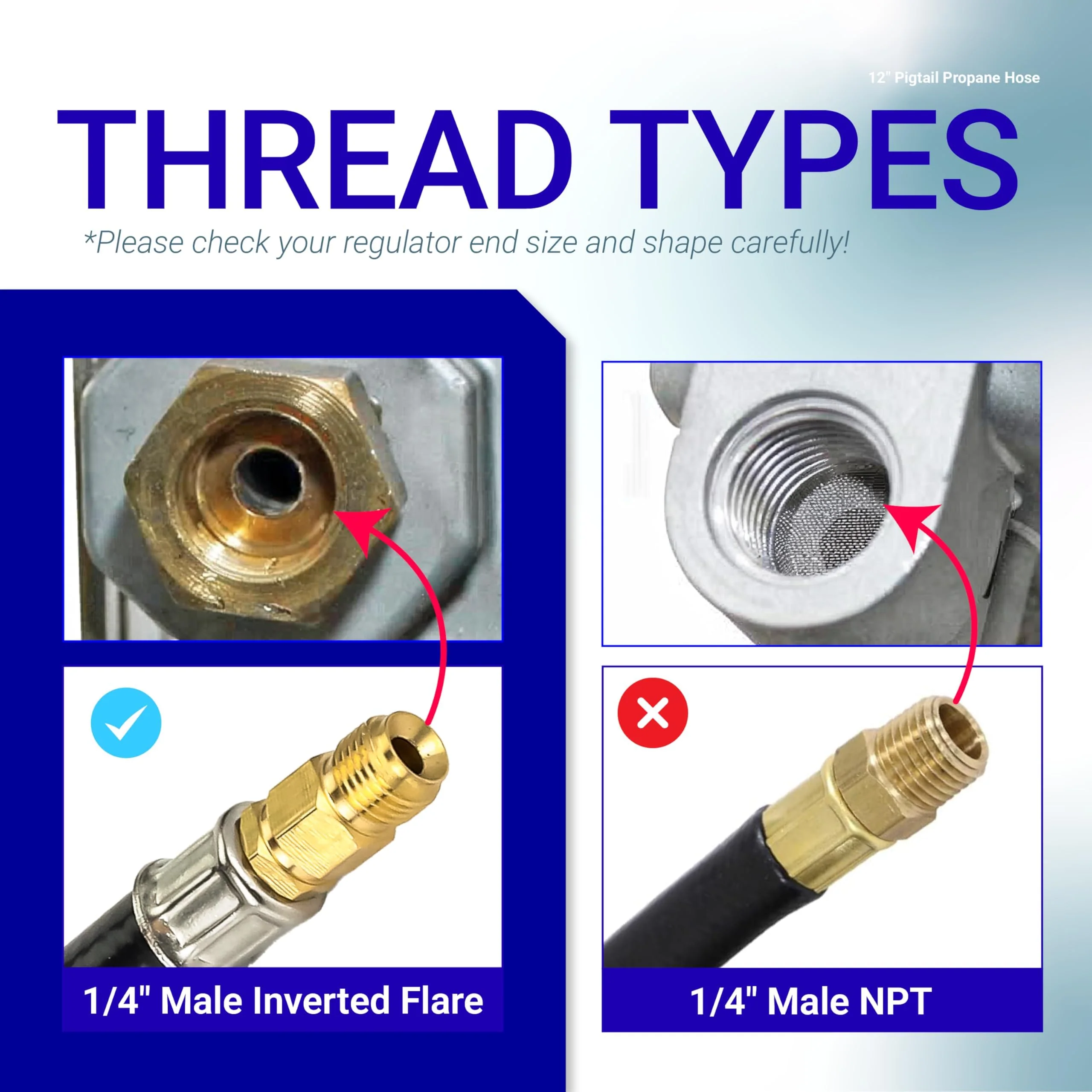

• Regulator Connection: 1/4" Inverted Male Flare
• Pressure Rating: 350 PSI maximum working pressure
• Safety Feature: Integrated excess flow safety device

Replaces / Cross-Reference Part Numbers

• Model: PO2
• Replaces other 12-inch pigtail hoses with a QCC1 tank connection and a 1/4-inch inverted male flare regulator fitting.

Compatibility & Fitment

• Designed for use with two-stage automatic changeover LP regulators on RVs, campers, and travel trailers.
• Connects standard 5 lb to 40 lb propane cylinders with QCC1/Type 1 valves to a regulator's 1/4" female inverted flare inlet.
• Not for use in high-pressure applications upstream of a regulator.

When to Replace

• Visible signs of wear, such as cracks, abrasions, cuts, or brittleness in the hose material.
• After any propane leak is detected at the hose or its fittings.
• If fittings are corroded, damaged, or will not seal properly.
• As part of routine maintenance, typically every 5 to 7 years, depending on use and exposure to elements.

Installation Tips

• Ensure the propane cylinder valve is fully closed before installation or removal.
• Hand-tighten the green or black Acme nut onto the propane cylinder valve. Do not use tools.
• Use a wrench to secure the 1/4" inverted flare fitting to the regulator inlet port. Use a second wrench to hold the regulator fitting to prevent damage.
• After installation is complete, slowly open the cylinder valve and check all connections for leaks using a soap and water solution.
• Position the hose to prevent sharp bends, kinks, and contact with hot surfaces or sharp edges.
