1501216MA 301172 Shear Pins, Spacers & Nuts - For Murray Craftsman AYP Snapper Simplicity 2-Stage Snow Blower - 10 Sets

1501216MA / 301172 Shear Pins, Spacers & Nuts

Key Features

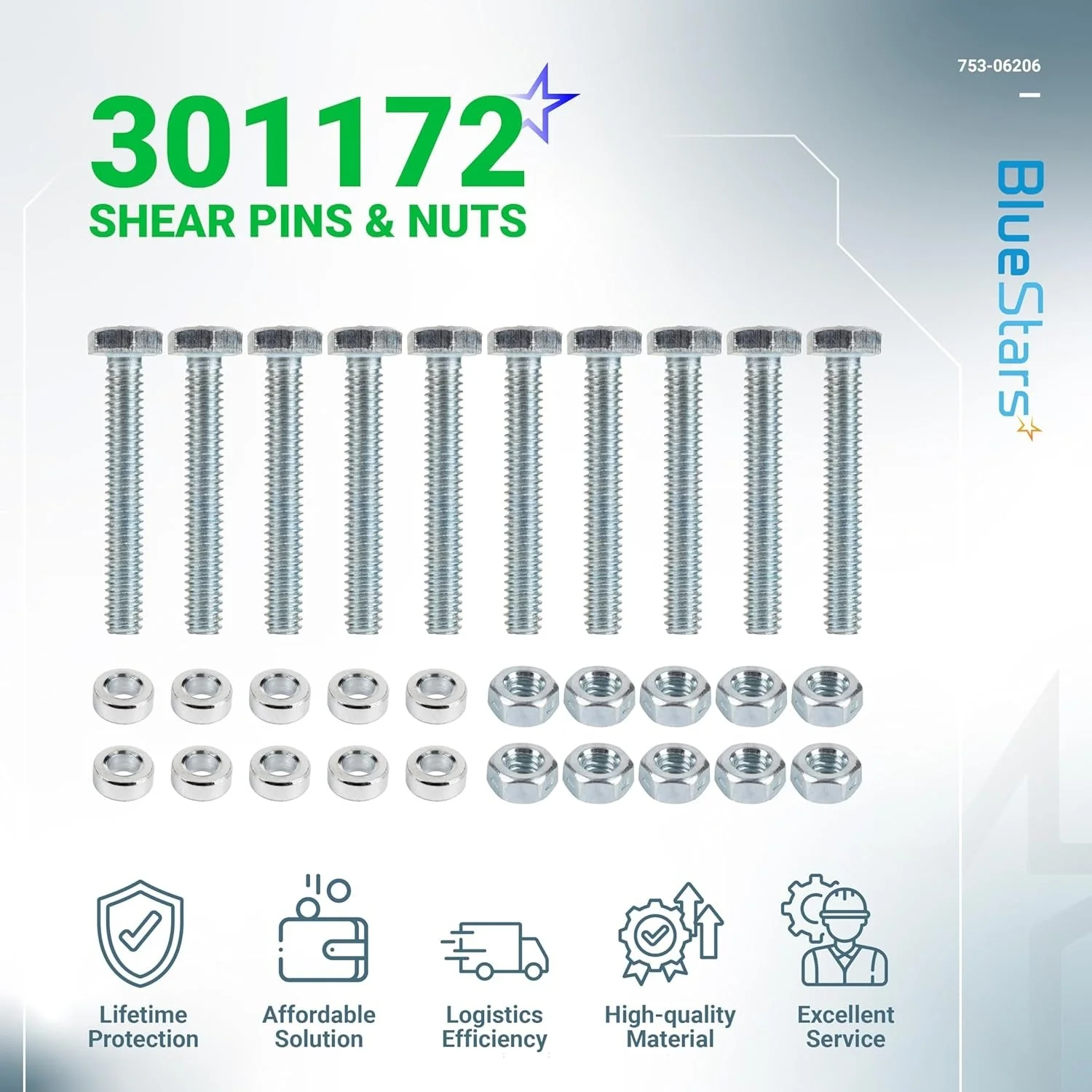

• Package includes 10 shear pins and 10 nuts.

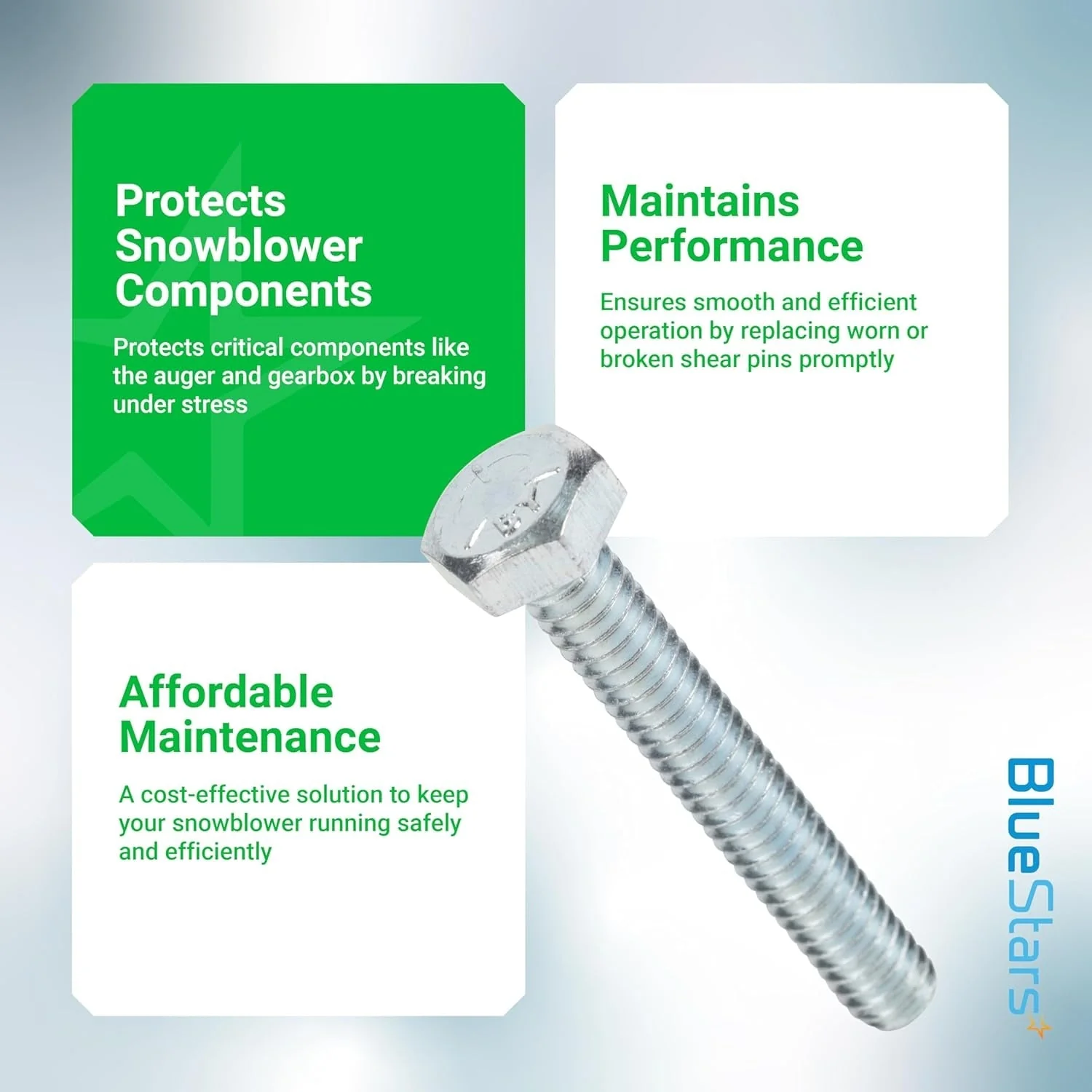

• Engineered to shear under excessive stress, protecting the snow blower's gearbox and auger from damage.
• Constructed from durable metal for reliable performance in harsh conditions.
• Direct replacement for specified original equipment manufacturer (OEM) part numbers.

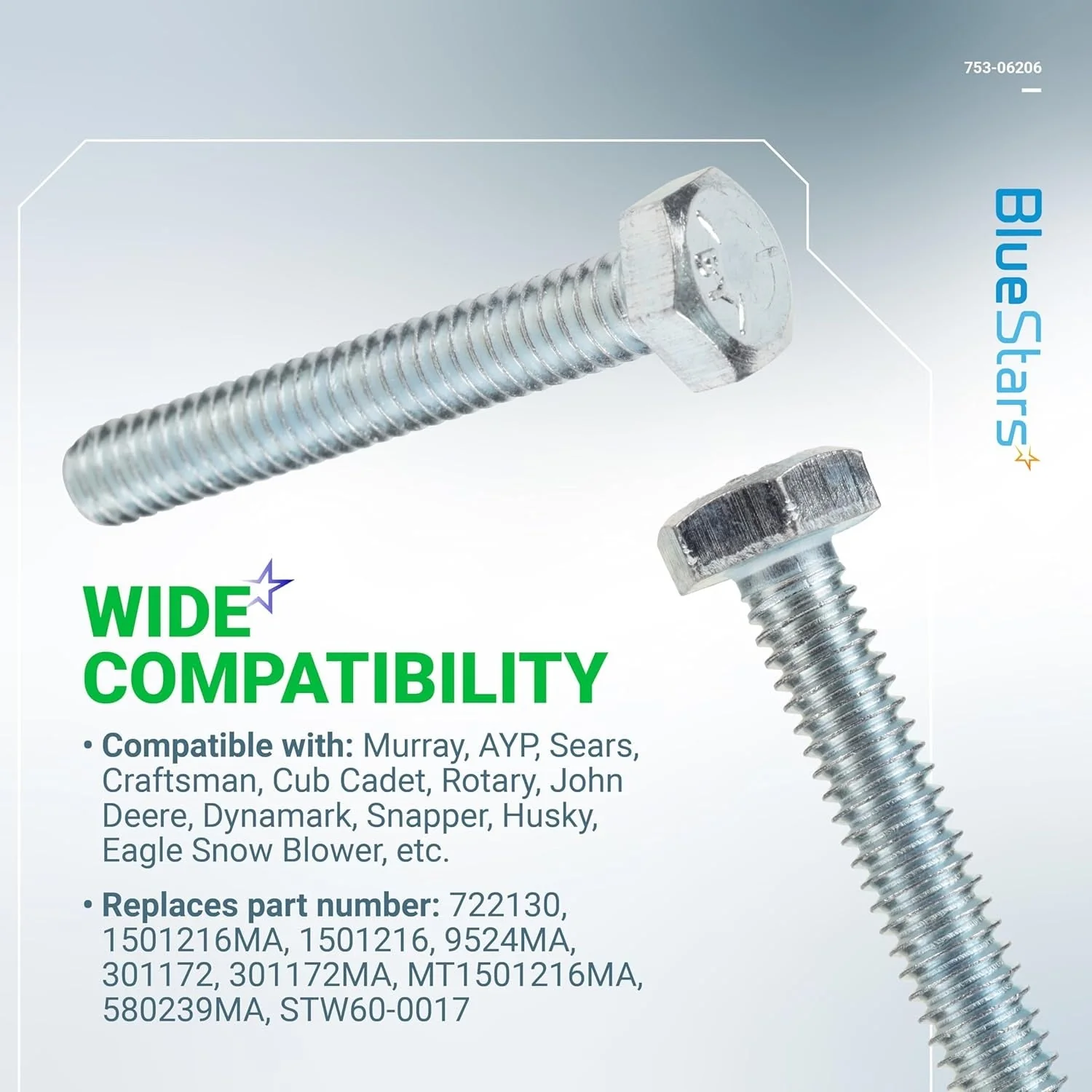

Replaces / Cross-Reference Part Numbers

• Murray / Briggs & Stratton: 1501216MA, 500026MA, 722130, 88951MA, 9524MA
• AMF / Dynamark / Noma: 301172
• Simplicity / Allis Chalmers: 703057
• Oregon: 80-748
• Rotary: 8938

Compatibility & Fitment

• Fits select snow blower models from brands including AMF, AYP, Briggs and Stratton, Craftsman, Dynamark, Husky, John Deere, NOMA, Sears, Simplicity, and Snapper.
• Verify compatibility by matching your existing part number with the numbers listed in the cross-reference section.

When to Replace

• Replace immediately after a pin has sheared from impact with a hard object like ice, rocks, or pavement.
• Inspect pins regularly and replace if they are bent, heavily corroded, or missing.
• It is recommended to keep a spare set on hand for rapid field repairs during the winter season.

Installation Tips

• Before starting, disconnect the spark plug wire from the spark plug for safety.
• Align the hole in the auger shaft with the corresponding hole in the auger blade assembly.
• Insert the shear pin through the aligned holes.
• Secure the pin in place with the provided nut. Avoid over-tightening.
• Refer to your equipment's owner's manual for model-specific diagrams and instructions.
