02483859 24599 Double Roller Skid Shoe for Ariens ST524 ST824 ST1024 ST1332 Deluxe Platinum Compact Pro Sno-Thro, John Deere MTD Snow Blower - 2 Pack

02483859 / 24599 Snow Blower Double Roller Skid Shoe

Key Features

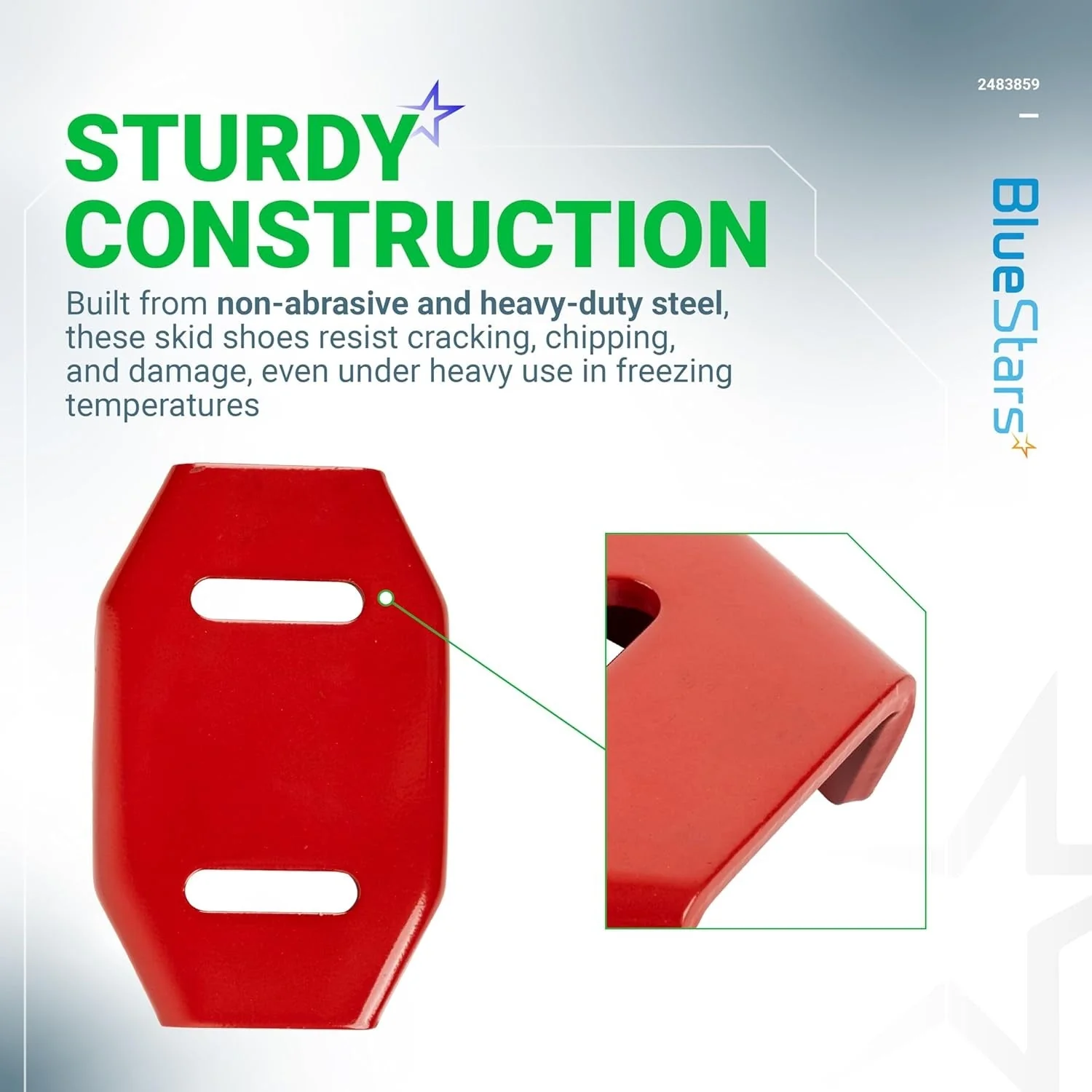

• Durable steel construction for cold-temperature operation
• Reversible design doubles the service life
• Protects the auger housing and scraper bar from damage
• Dimensions:
  • Width: 3 5/8 inches
  • Length: 5 3/4 inches
  • Mounting Hole Center to Center: 3 inches
  • Slot Length: 1 1/16 inches

Replaces / Cross-Reference Part Numbers

• Ariens: 02483859, 24599, 01016500, 02483851
• John Deere: M124413, M144012
• MTD: 05002-0637
• Stens / Oregon / Rotary: 780-286, 73-028, 5568

Compatibility & Fitment

• Fits a wide range of Ariens snow blowers from 20 to 36 inches, including but not limited to: Classic, Compact, and Deluxe series models.
• Also compatible with select John Deere and AMP models.
• Direct fit for models requiring part number 02483859.

When to Replace

• Skid shoe is worn thin, cracked, or broken.
• Uneven wear is causing the auger housing to tilt.
• The shoe is bent or warped, preventing proper height adjustment.
• The scraper bar is making direct contact with the ground surface.

Installation Tips

• Ensure the snow blower is turned off and the spark plug is disconnected before starting work.
• Raise the auger housing with a block of wood for easier access to the skid shoes.
• Use original mounting hardware if it is in good condition; replace if corroded or stripped.
• Adjust both skid shoes to the same height. Set a small gap (approx. 1/8 inch) between the scraper bar and a flat, level surface for clearing paved driveways. Increase the gap for gravel or uneven surfaces.
