40 uF MFD 450 VAC CBB60 50/60 Hz Run Capacitor with Screw - Fits AC Motors, Electric Motors, Water Pumps

40 uF/MFD/Microfarad 450 VAC Volts CBB60 50Hz/60Hz

Key Features

• Model: CBB60
• Capacitance: 40 Microfarad (µF)
• Voltage Rating: 450 VAC
• Frequency: 50Hz / 60Hz
• Capacitance Tolerance: ±5%
• Operating Temperature: -40°C to +85°C
• Termination: 2 wire leads

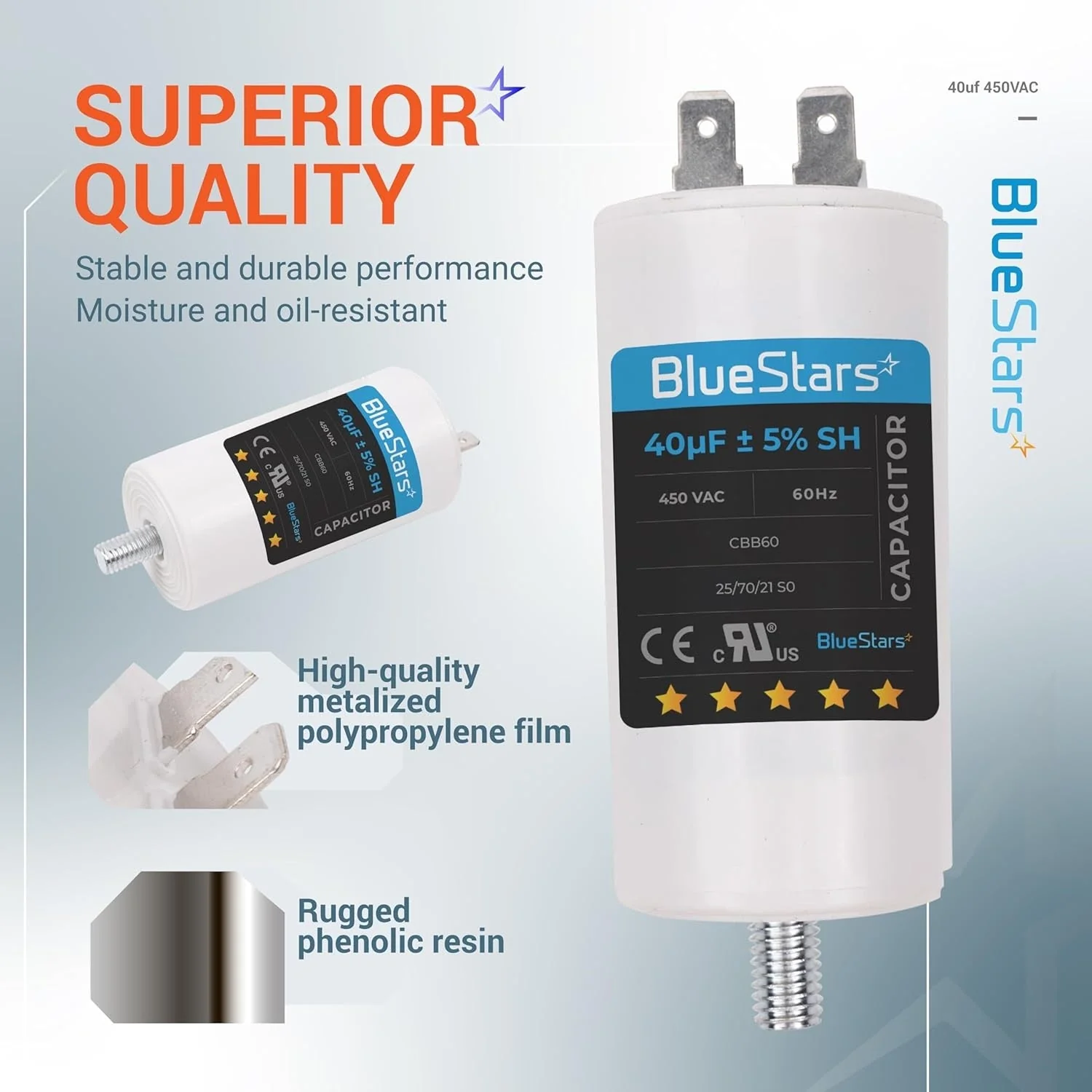

• Construction: Metallized polypropylene film in a cylinder-shaped housing

Replaces / Cross-Reference Part Numbers

• Replaces any CBB60 run capacitor with matching capacitance and voltage specifications.
• Verify that the µF value (40) and VAC rating (450 or lower) match the original part.

Compatibility & Fitment

• For starting and continuous operation of single-phase AC motors.

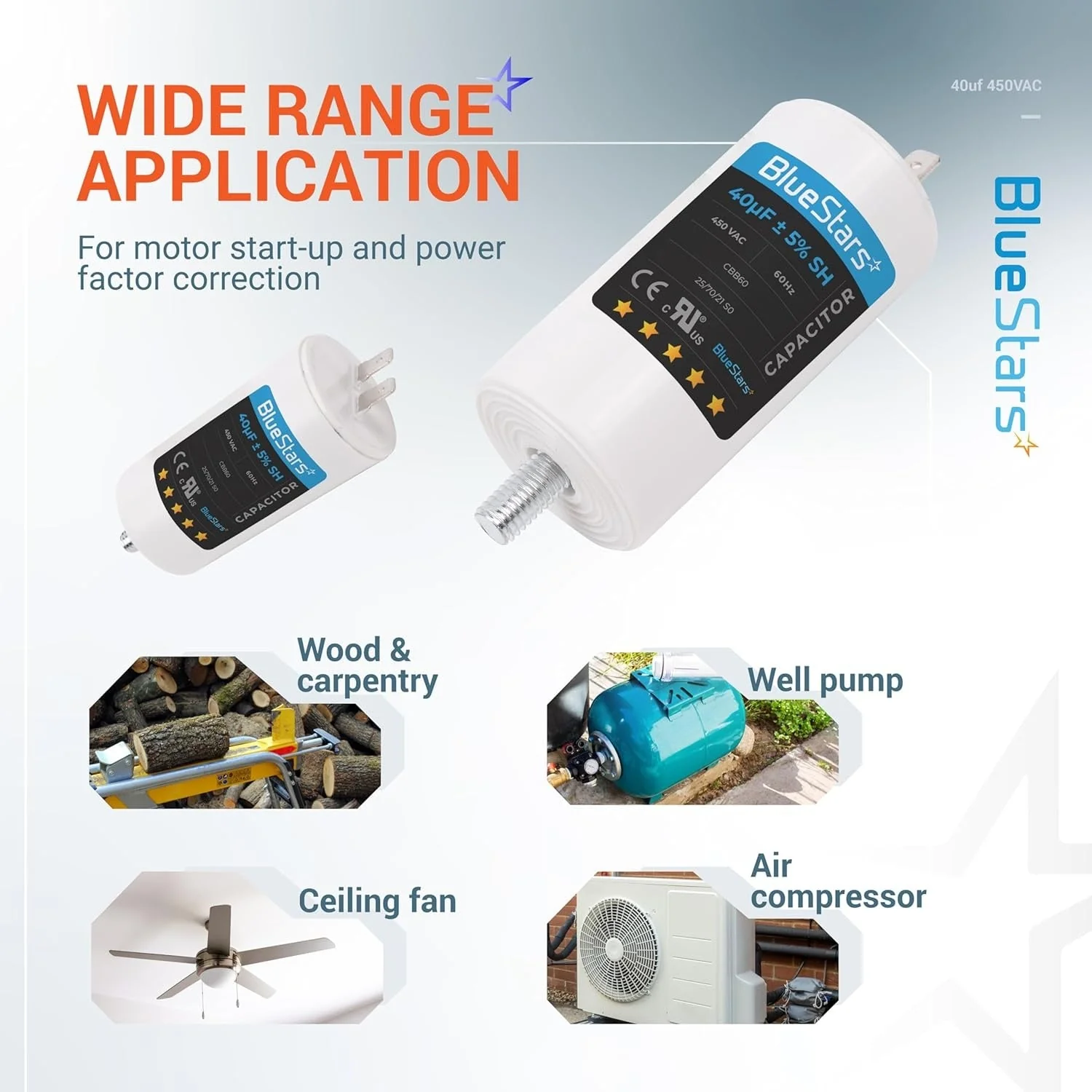

• Suitable for applications including water pumps, washing machines, air conditioners, fans, and various electric motors.

When to Replace

• Motor fails to start, hums, or is slow to reach operating speed.
• Motor overheats or runs intermittently.
• Visible damage to the existing capacitor, such as bulging, swelling, or leaks.

Installation Tips

• Disconnect all electrical power to the equipment before installation.
• Safely discharge the old capacitor by shorting the terminals with an insulated tool.
• The replacement capacitor's voltage rating must be equal to or greater than the original.
• This is a non-polarized capacitor; wires can be connected to either terminal.
• Ensure the physical dimensions are suitable for the mounting location.
