48568 1/4" Inline Fuel Shut Off Valve Kit - Fits Scag 48568 Oregon 07-403 180 Degree Ball Valve Heavy Duty Inline Cut

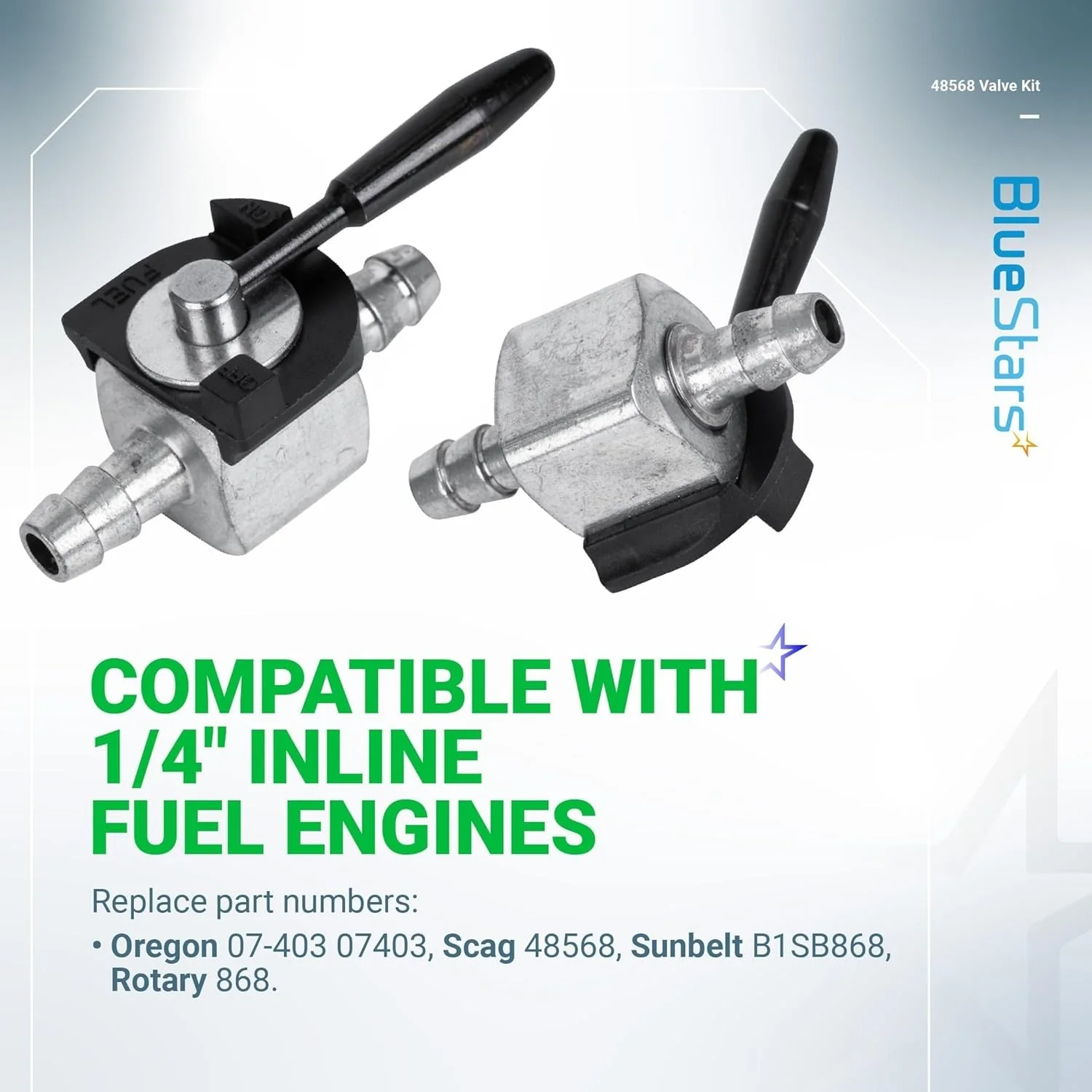

48568 1/4" Inline Fuel Shut Off Valve Kit

Key Features

• Fits standard 1/4 inch inside diameter fuel line.
• Constructed from cadmium-plated steel for corrosion resistance.
• Straight-through design with 180-degree on/off lever.
• Suitable for gasoline and diesel fuel applications.
• Kit includes: 1 valve, 1 fuel line, and 2 clamps.

Replaces / Cross-Reference Part Numbers

• 48568
• 07-403
• 07403
• 868
• B1SB868


Compatibility & Fitment

• Universal fit for small engines requiring an inline 1/4" fuel shut-off.
• Commonly used on lawn mowers and other outdoor power equipment.

When to Replace

• Existing valve is leaking fuel from the body, lever, or connections.
• Valve is seized, clogged, or difficult to operate.
• Visible cracks, corrosion, or physical damage to the valve housing.
• During routine fuel system maintenance or fuel line replacement.

Installation Tips

• Before installation, drain the fuel tank or clamp the fuel line to prevent spillage.
• Ensure fuel lines are pushed completely over the barbed nipples.
• Position clamps just behind the barb on each nipple and tighten securely.
• After installation, open the valve and check for any leaks before starting the engine.
