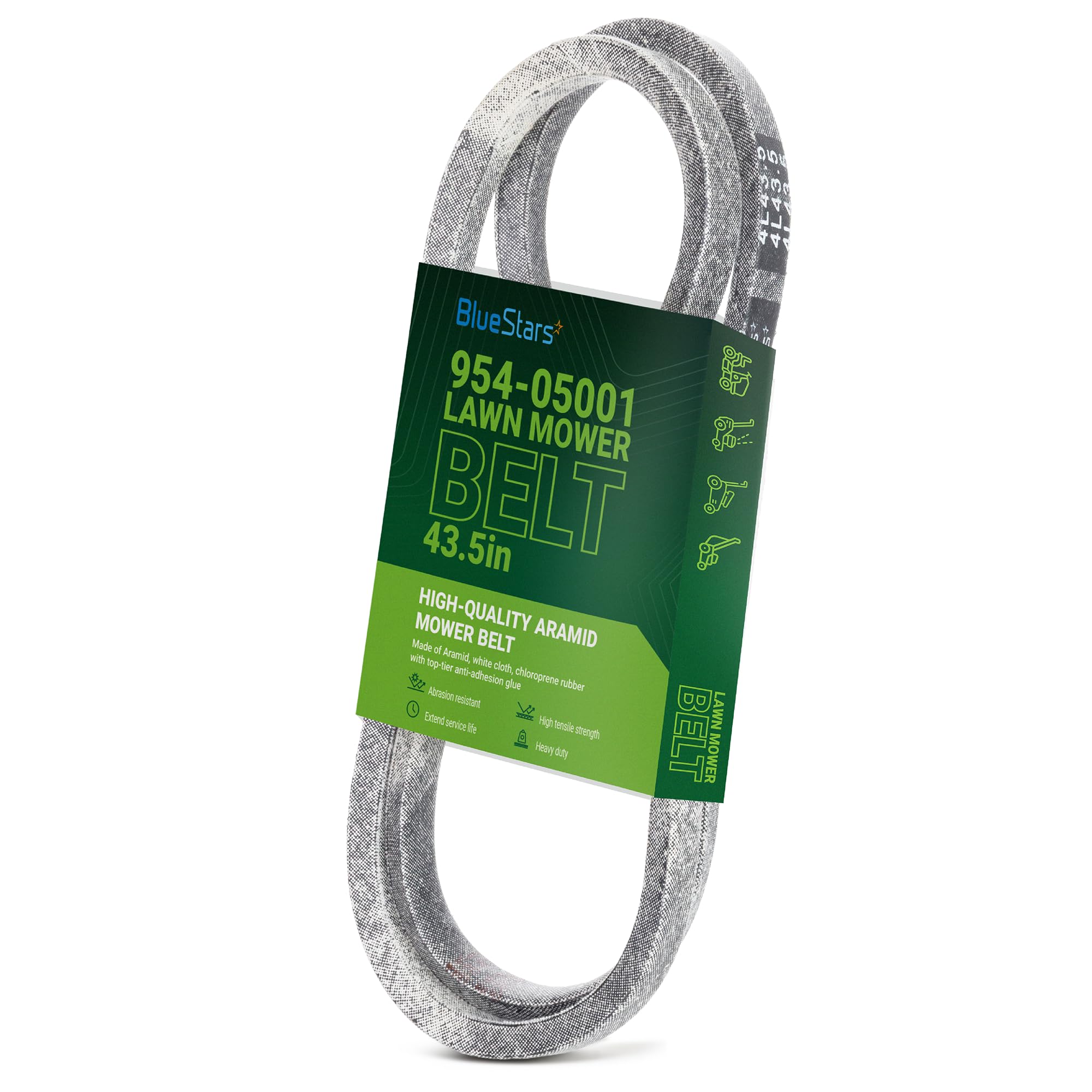

954-05001, 754-05001 Deck Belt | Fits 30" Deck Troy-Bilt TB30R TB30 CC30 CR30 & More | Aramid Cord | 43.5"

954-05001, 754-05001 Deck Belt | 43.5"

Key Features

• Type: Deck Belt
• Application: Engages the mower blades by connecting the engine pulley to the deck pulley.

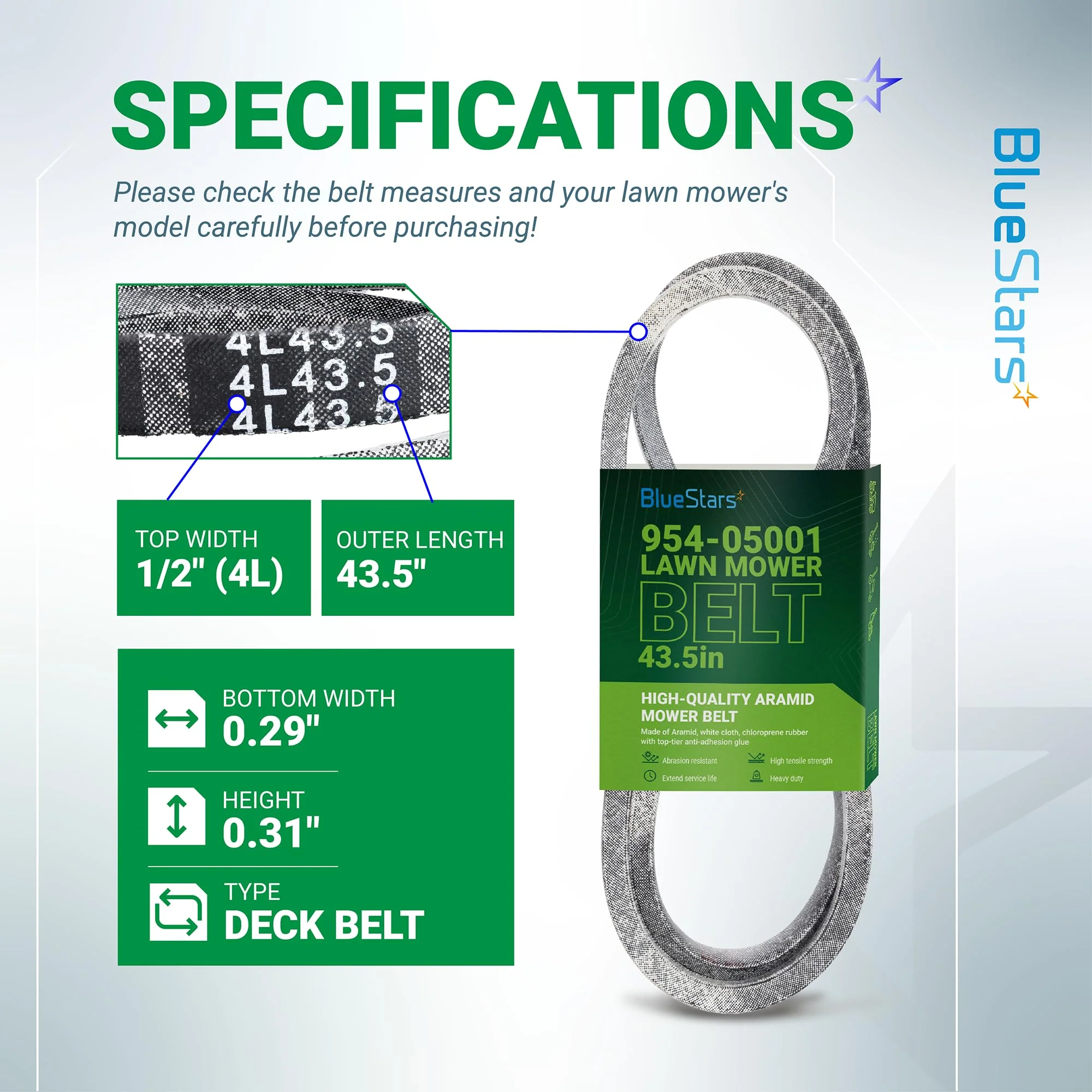

• Dimensions: 1/2 inch width, 43.5 inch outer circumference.

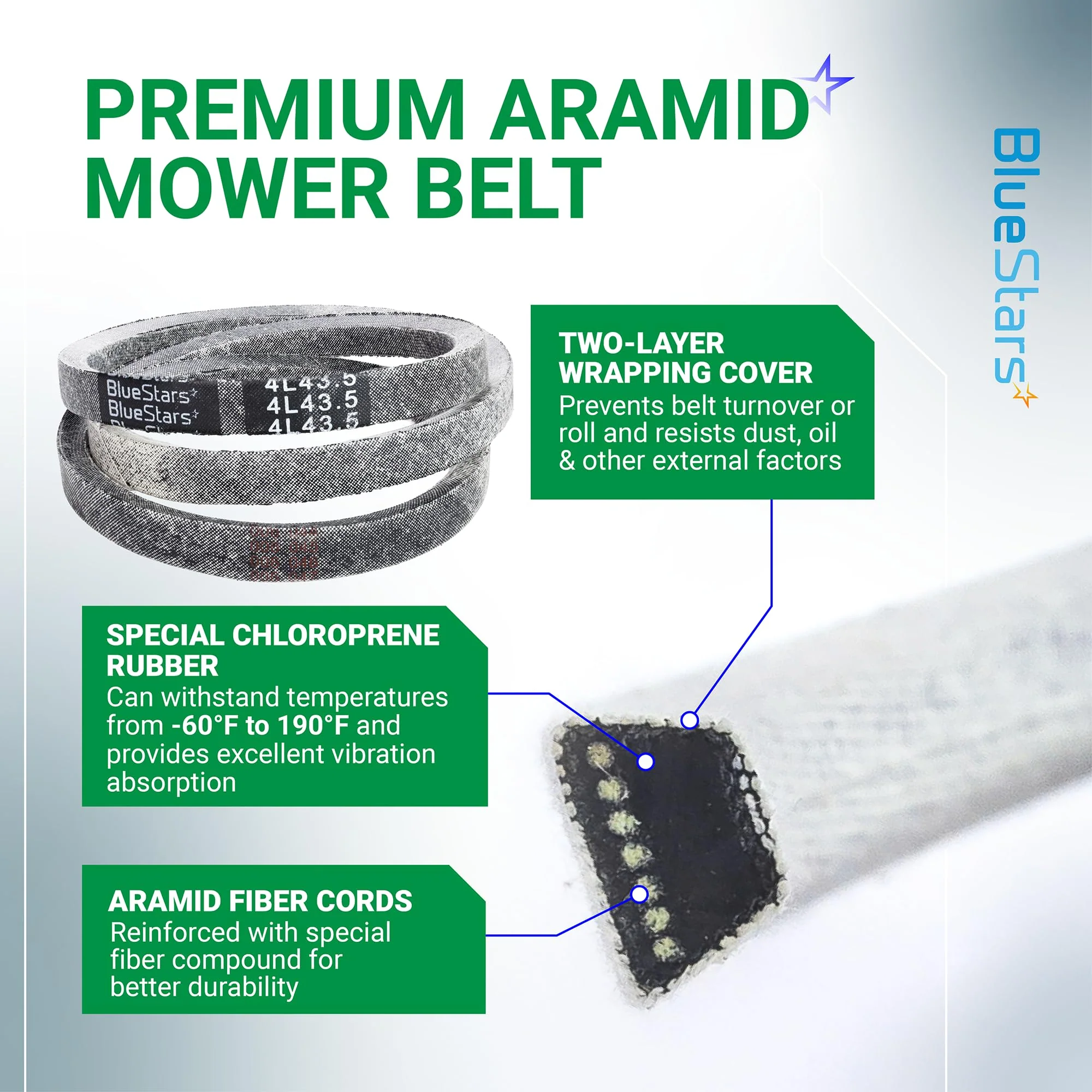

• Construction: Engineered for durability and resistance to wear, heat, and oil.

Replaces / Cross-Reference Part Numbers

• 954-05001
• 754-05001
• 490-501-Y065
• 490-501-M065
• CMXGZAM501065
• 266-252

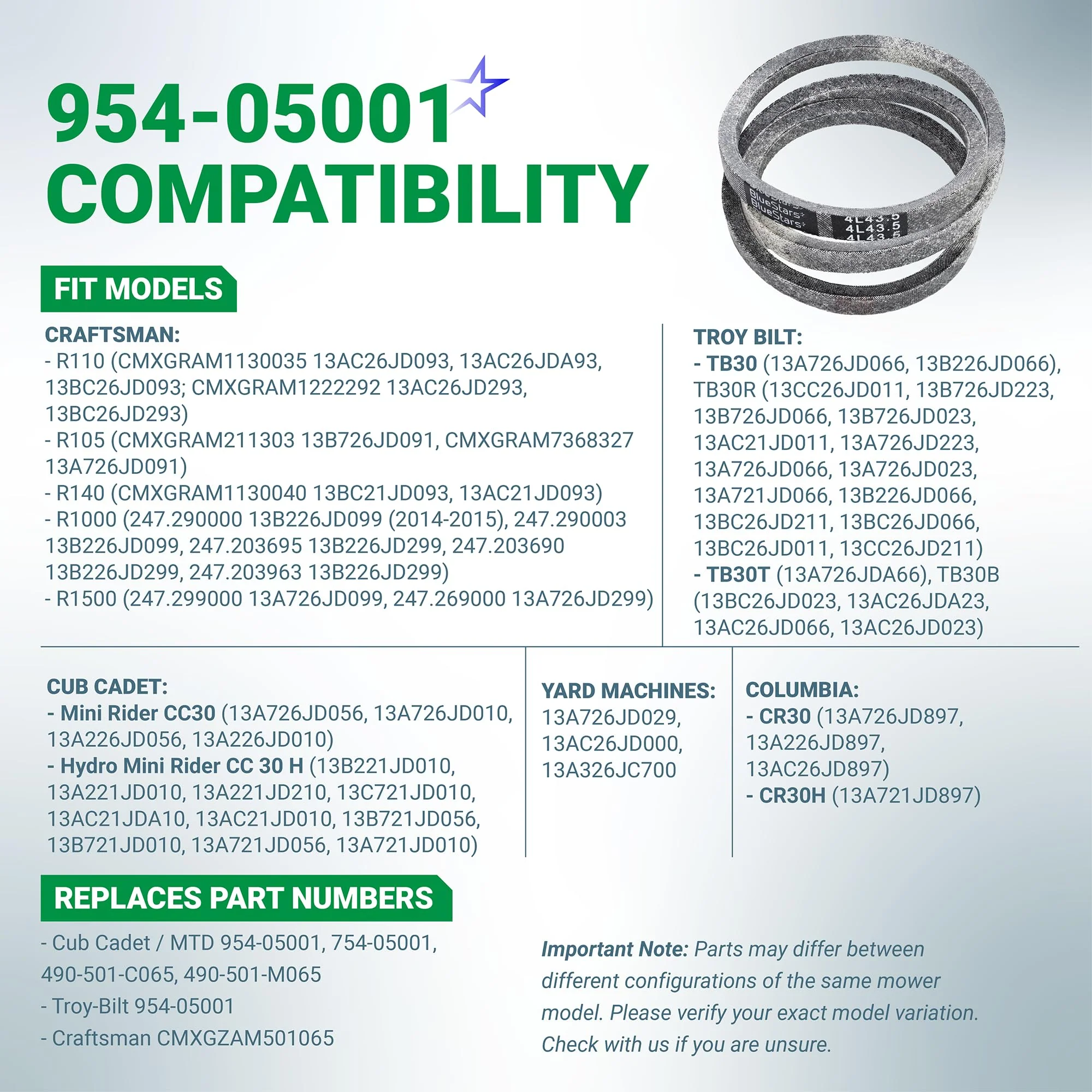

Compatibility & Fitment

• Deck Size: Designed for 30-inch cutting decks.
• Cub Cadet Models: TB30R, TB30, CC30, CC30H, CR30
• Craftsman Models: R110, R1000
• Also fits select MTD and Troy-Bilt riding mowers with 30-inch decks.

When to Replace

• Visible signs of wear such as cracking, fraying, glazing, or stretching.
• Squealing or slipping noises during mower operation.
• Inconsistent blade speed or failure of blades to engage.
• Uneven or poor quality of cut.

Installation Tips

• Before installation, disconnect the spark plug wire for safety.

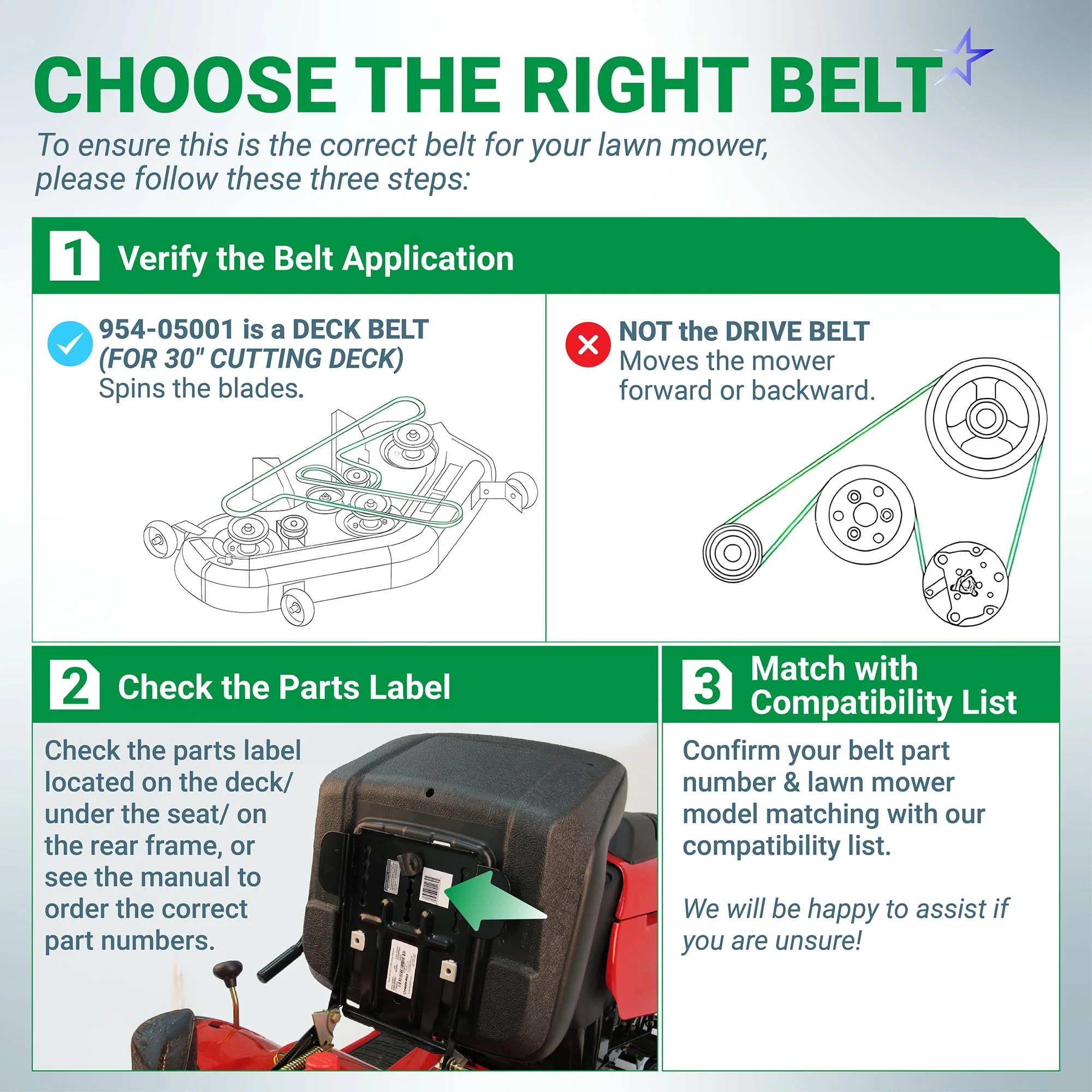

• Refer to your mower's operator manual for the specific belt routing diagram and replacement procedure.
• Inspect pulleys for damage, debris, or excessive wear before installing the new belt.
• Ensure the new belt is properly seated in all pulley grooves.
• Verify correct tension after installation; the belt should not be too loose or too tight.
