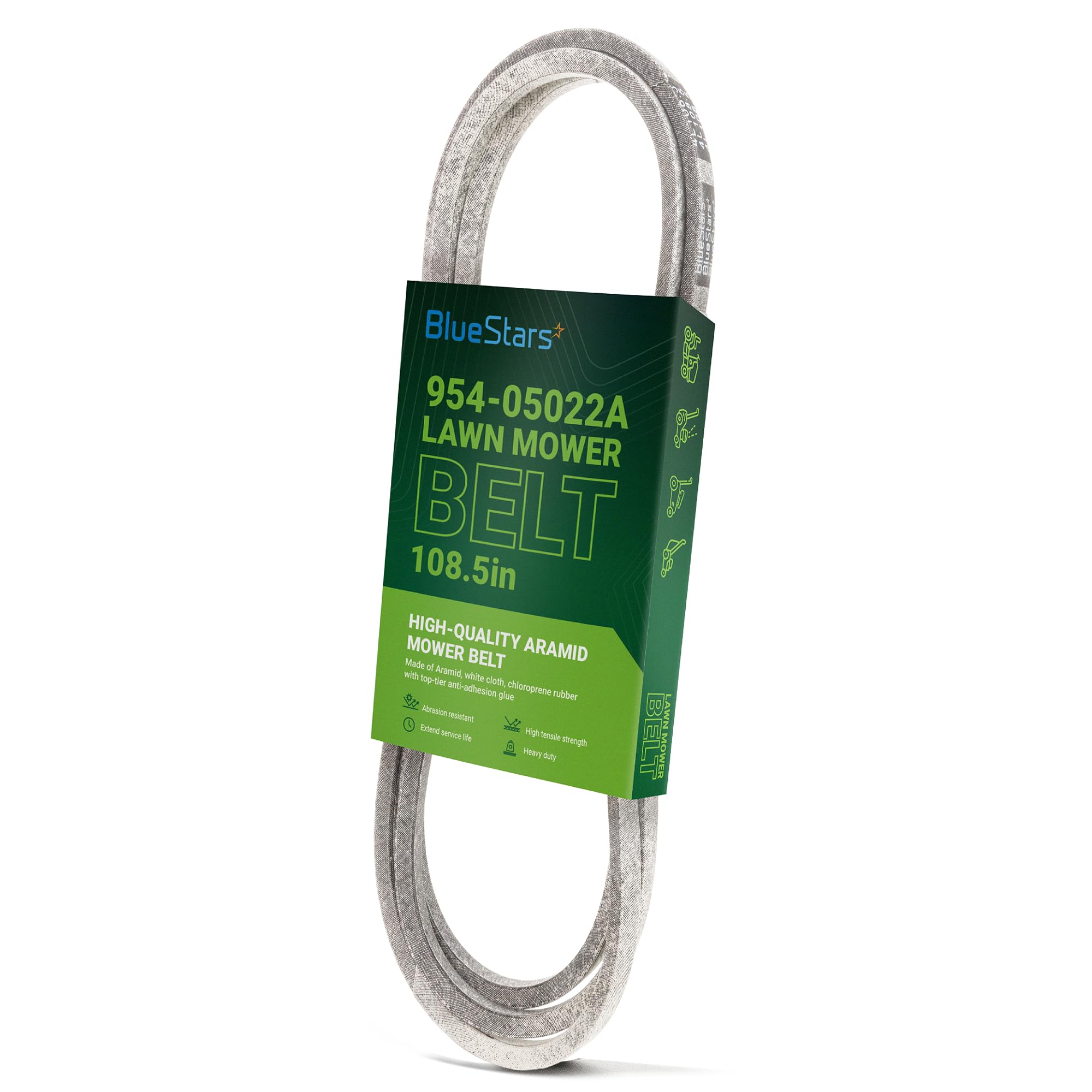

954-05022A Deck Belt | Fits 46" Deck Cub Cadet XT1 LT46 XT2 LX46 & More | Aramid Cord | 108.5"

954-05022A Deck Belt | 108.5"

Key Features

• Type: Deck Drive Belt
• Function: Transfers power from the engine pulley to the mower deck spindles
• Width: 1/2 inch
• Length: 108.5 inches

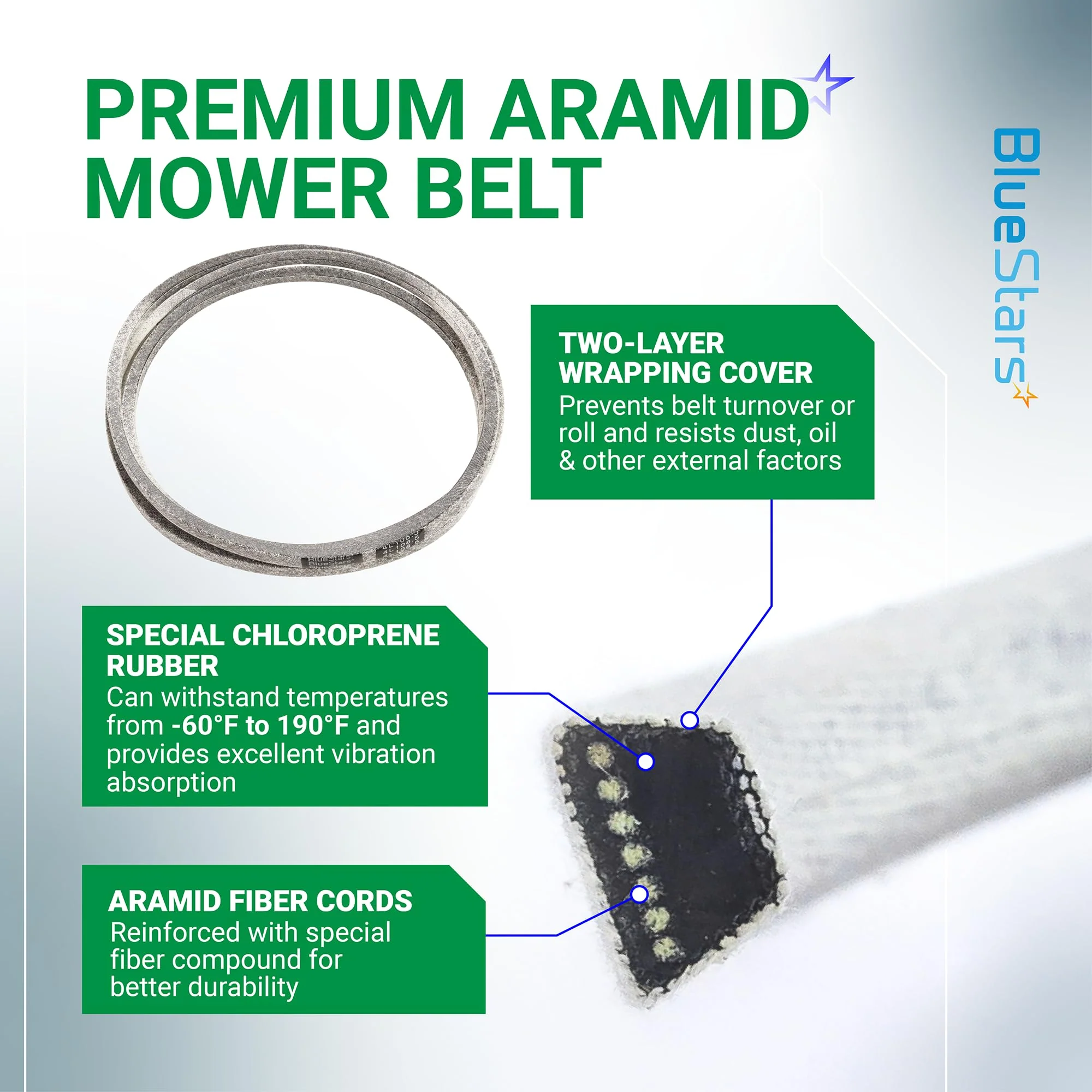

• Material: Durable synthetic rubber compound construction for wear resistance

Replaces / Cross-Reference Part Numbers

• 754-05022A
• 954-05022
• 754-05022
• 490-501-C063
• 490-501-F063
• 490-501-M063
• CMXGZAM501063
• 75-714
• 265-195
• 810-CBL2344T

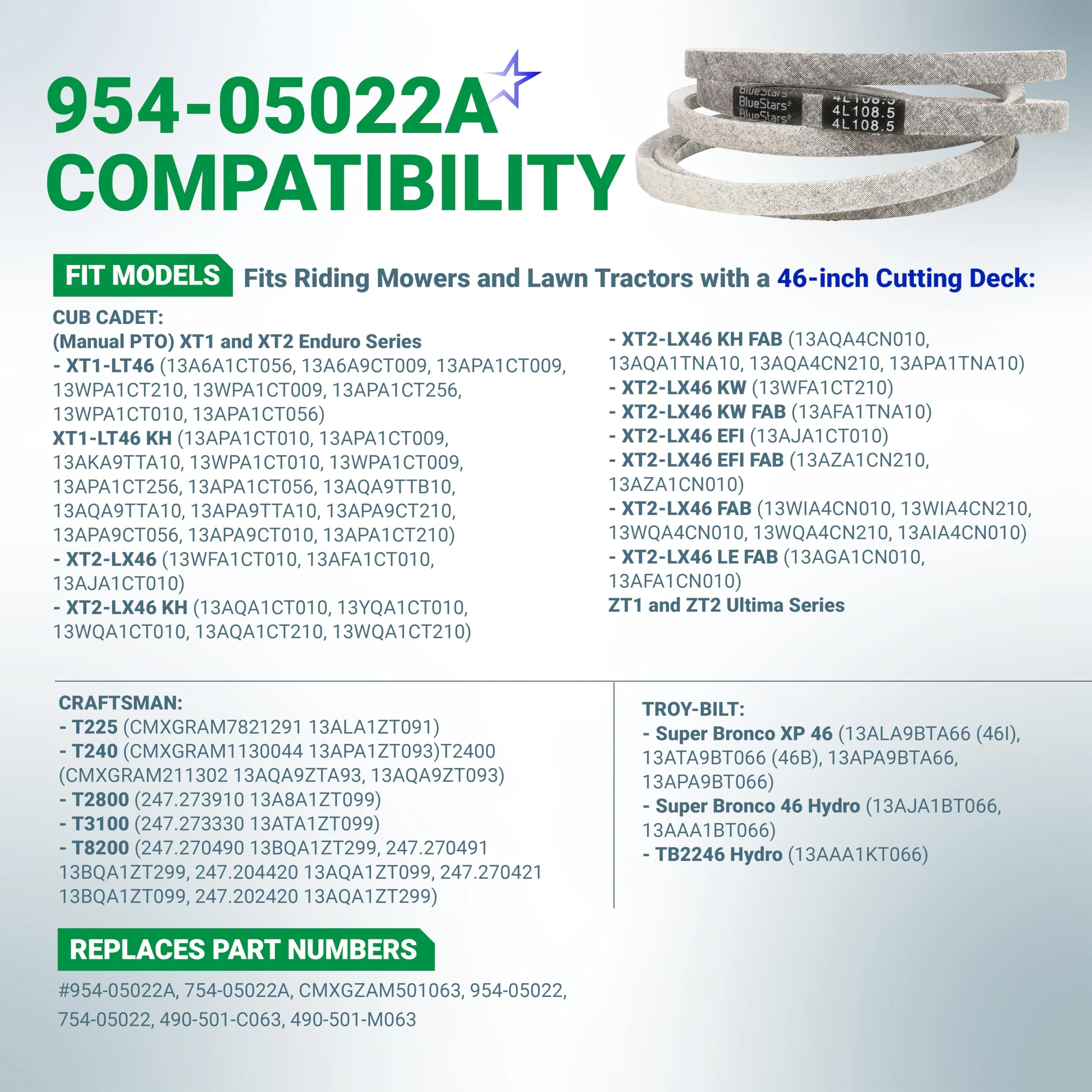

Compatibility & Fitment

• Deck Size: Fits select lawn tractors and riding mowers with 46-inch cutting decks (2015 and newer)
• Brands: Cub Cadet, Craftsman, MTD, Troy-Bilt
• Cub Cadet Models: XT1-LT46, XT2-LX46, XT2-LX46 KW, Enduro Series, ZT1, ZT2
• Craftsman Models: T240, T2400, T2800, T3100

When to Replace

• Visible wear such as cracking, glazing, fraying, or splitting
• Belt slipping, causing inconsistent blade speed or an uneven cut
• Audible squealing or chirping from the deck area during operation
• The belt has stretched and no longer maintains proper tension
• Complete belt failure or breakage

Installation Tips

• Before installation, disconnect the spark plug wire and engage the parking brake for safety.
• Refer to your mower's operator manual for the correct belt routing diagram.
• Ensure all pulleys are clean, free of debris, and spin freely.
• Verify that all belt guides and keepers are in place and properly adjusted.
• After installation, check for correct tension and alignment before starting the mower.
