194346, 532194346 Ground Drive Belt | Fits AYP, Husqvarna, Ariens, Murray & More | Aramid Cord | 97-3/8"

194346, 532194346 Ground Drive Belt | 97-3/8"

Key Features

• Heavy-duty V-belt designed to transfer rotational power from the engine drive pulley to the transmission to effectively propel the mower forward.
• Constructed with high-strength internal tensile cords to resist shock loads, severe stretching, and snapping under heavy operating tension.
• Features a durable outer protective cover to withstand harsh friction, cutting, and exposure to oil, dirt, and outdoor contaminants.

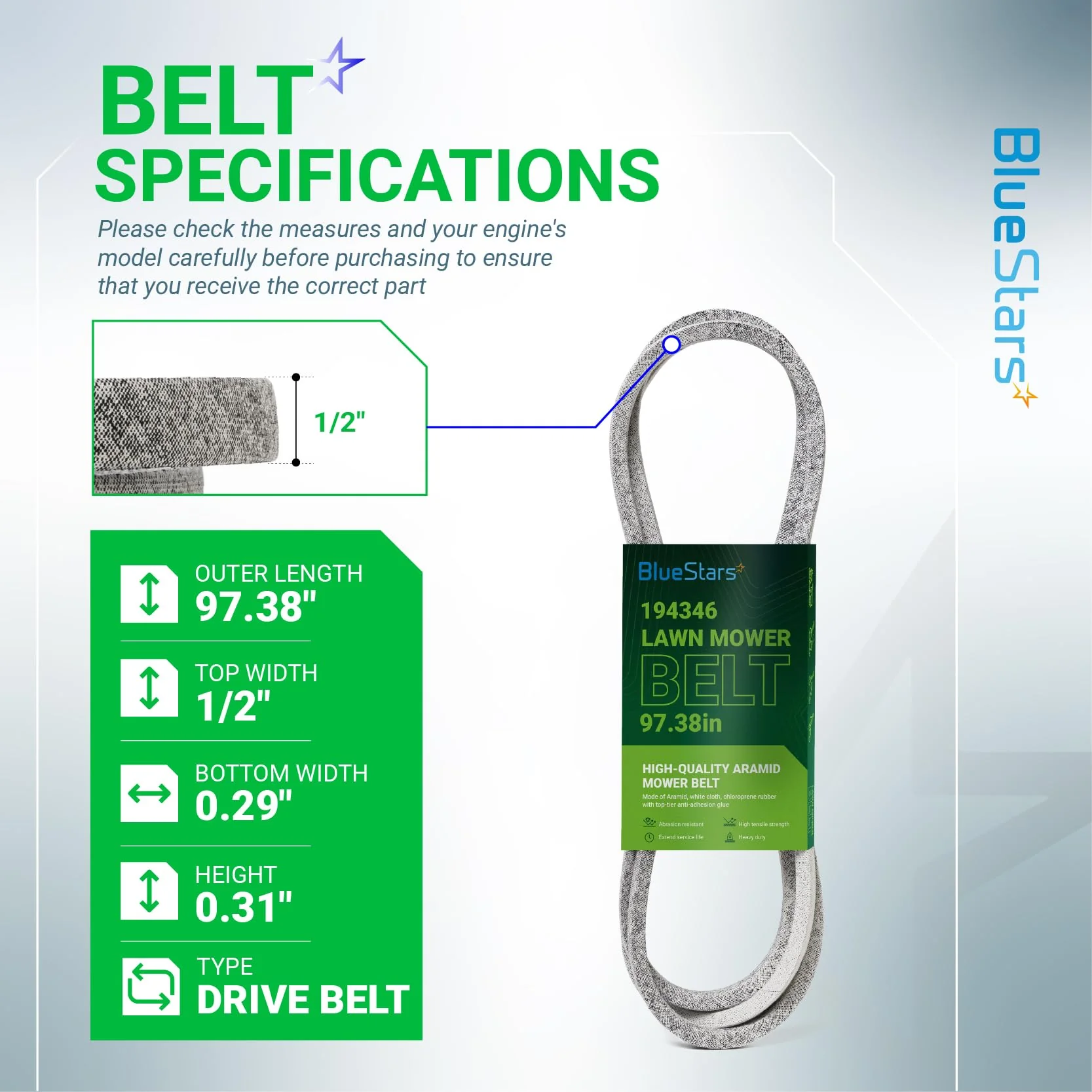

• Measures exactly 1/2-inch in width and 97-3/8 inches in outside circumference to match precise original equipment geometry.

Replaces / Cross-Reference Part Numbers

• 194346
• 532194346
• 21546332
• 265-576
• 15-227
• 810-CBL2376T
• 230-0646


Compatibility & Fitment

• Compatible with select riding lawn mowers and yard tractors manufactured by AYP, Husqvarna, Ariens, Craftsman, Poulan, and Murray.
• Fits specific Husqvarna tractor models including: LT2216, PB19546LT, and PB2042YT.
• Fits specific Ariens tractor models including: 936037, 936064, 936070, 936079, 936080, 936087, 936091, 936092, 936093, 936094, and 936101.
• Commonly utilized on tractor decks ranging from 42-inch to 54-inch configurations.

When to Replace

• The tractor experiences a loss of ground speed, slips when climbing mild inclines, or completely fails to drive forward.
• The mower lunges or jerks violently when engaging the transmission gears.
• The outer rubber casing of the existing belt is deeply cracked, glazed, frayed, or missing chunks of material.
• A loud squealing or continuous burning rubber smell is present while the drive system is actively engaged.

Installation Tips

• Park the mower on a level surface, set the parking brake, and disconnect the spark plug wire to prevent accidental engine starts.
• Take a digital photograph or refer to the underside mower diagram to strictly follow the correct belt routing path around the drive, transmission, and idler pulleys.

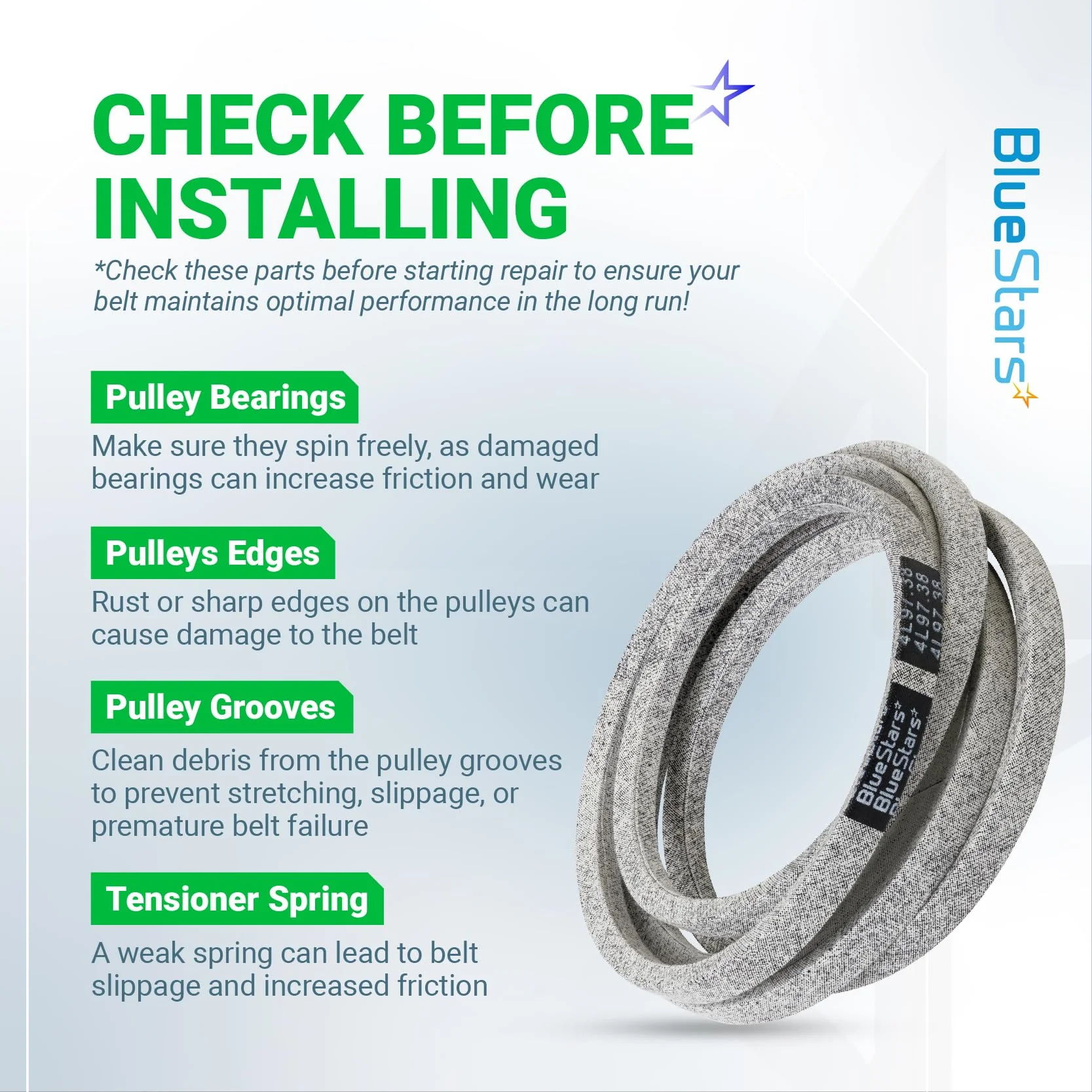

• Clean out built-up grass clippings, dirt, or debris from all pulley grooves before seating the new belt to prevent premature wear.
• When tilting the mower to access the drive belt, always ensure the carburetor and spark plug face upward to prevent oil and fuel leakage.
