Recoil Starter - Fits Honda GX100 GX100U Rammer Engine Motor - Replaces 28400-Z0D-V02ZA 28400-Z0D-V03ZA

Recoil Starter for Honda GX100 & GX100U Engines

Key Features

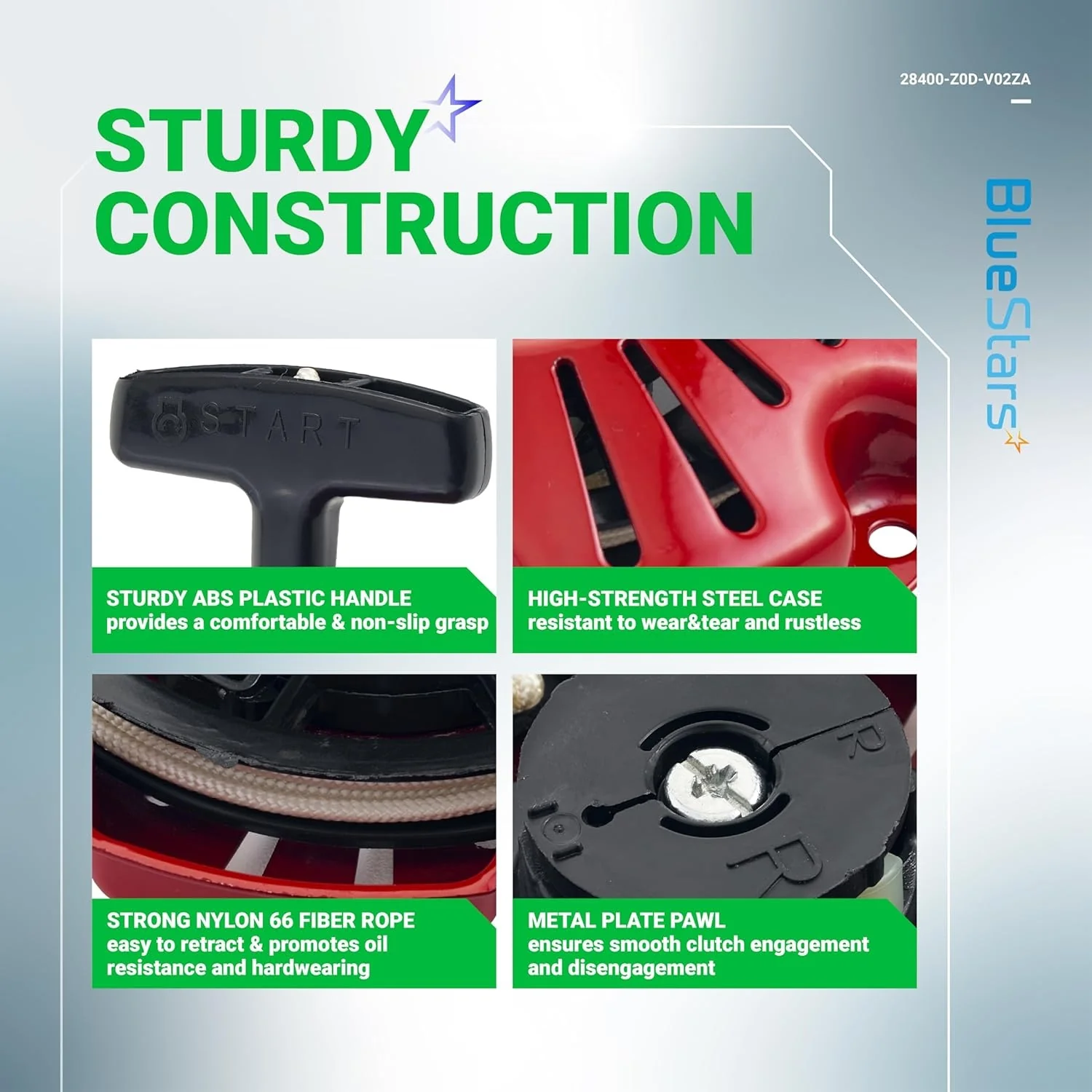

• Complete recoil assembly, including a pre-wound tension spring, durable pull cord, and ergonomic grip handle for direct, immediate installation.
• Constructed with a heavy-duty outer housing to resist impact, vibration, and environmental wear in demanding construction or landscaping environments.
• Features high-strength internal engagement pawls designed for consistent, slip-free contact with the engine flywheel cup.

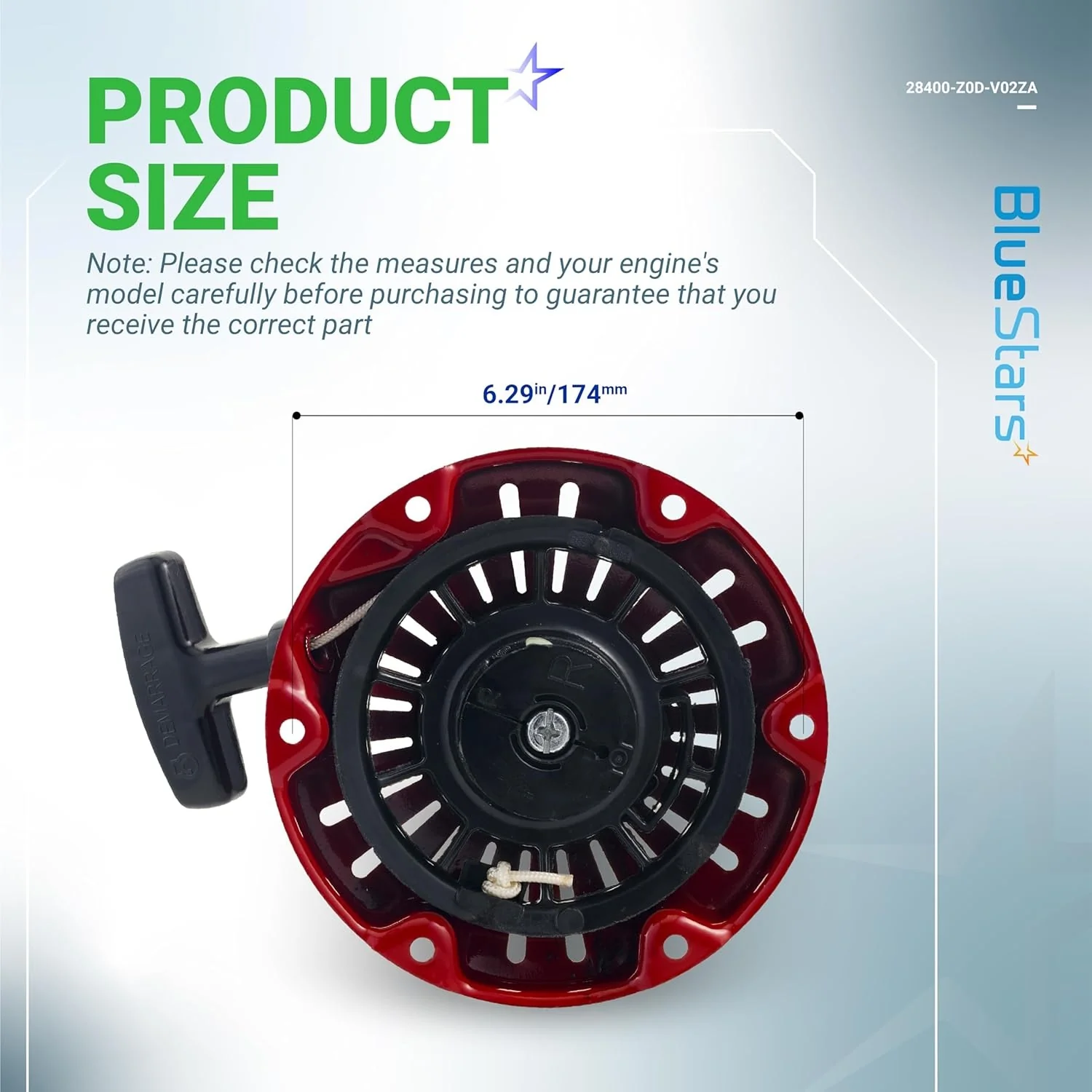

• Engineered to exact original equipment dimensions, matching standard factory mounting hole spacing for proper alignment.

Replaces / Cross-Reference Part Numbers

• 28400-Z0D-V04ZC
• 28400-Z0D-V04ZA
• 28400-Z0D-V03ZA
• 28400-Z0D-V02ZA
• 28400-Z0D-013ZC
• 28400-Z0D-003ZC
• 24800-Z0D-V03ZC
• 24800-Z0D-V02ZC
• 28400-ZDJ-003ZA

Compatibility & Fitment

• Compatible with Honda 4-stroke small engines including: GX100, GX100U, GX100RT, GX100UT, GXR100, and GXR120.
• Fits various light construction equipment powered by these engines, such as jumping jacks, tampers, plate compactors, and water pumps.
• Direct fit for specific rammer models including Multiquip (MTR40HF, MTX50HD, MTX60HD, MTX70HD, MTX70HF) and select Wacker Neuson equipment.

When to Replace

• The pull cord snaps, frays excessively, or detaches completely from the handle mechanism.
• The internal tension spring breaks or loses tension, preventing the rope from automatically retracting back into the housing.
• The internal pawls wear down, causing the starter to pull freely without grabbing or turning over the engine.
• The outer protective casing is cracked, shattered, or bent due to job site impact or extended vibration.

Installation Tips

• Ensure the engine switch is turned to the "OFF" position and the spark plug wire is disconnected to prevent accidental starting during maintenance.
• Remove the original recoil housing by unthreading the mounting bolts, retaining the original hardware for securing the new unit.
• Hold the new recoil housing in place and pull the starter rope 1 to 2 inches to ensure the pawls seat correctly into the flywheel cup before fully tightening the fasteners.
• Tighten the mounting bolts evenly in a cross pattern to prevent warping the housing, then perform a slow test pull to verify smooth engagement and unhindered retraction.
