212CC Pull Start Recoil Starter - Fits Harbor Freight Predator 69730 69727 212CC 173CC 6.5HP 7HP OHV Engine Power 91520

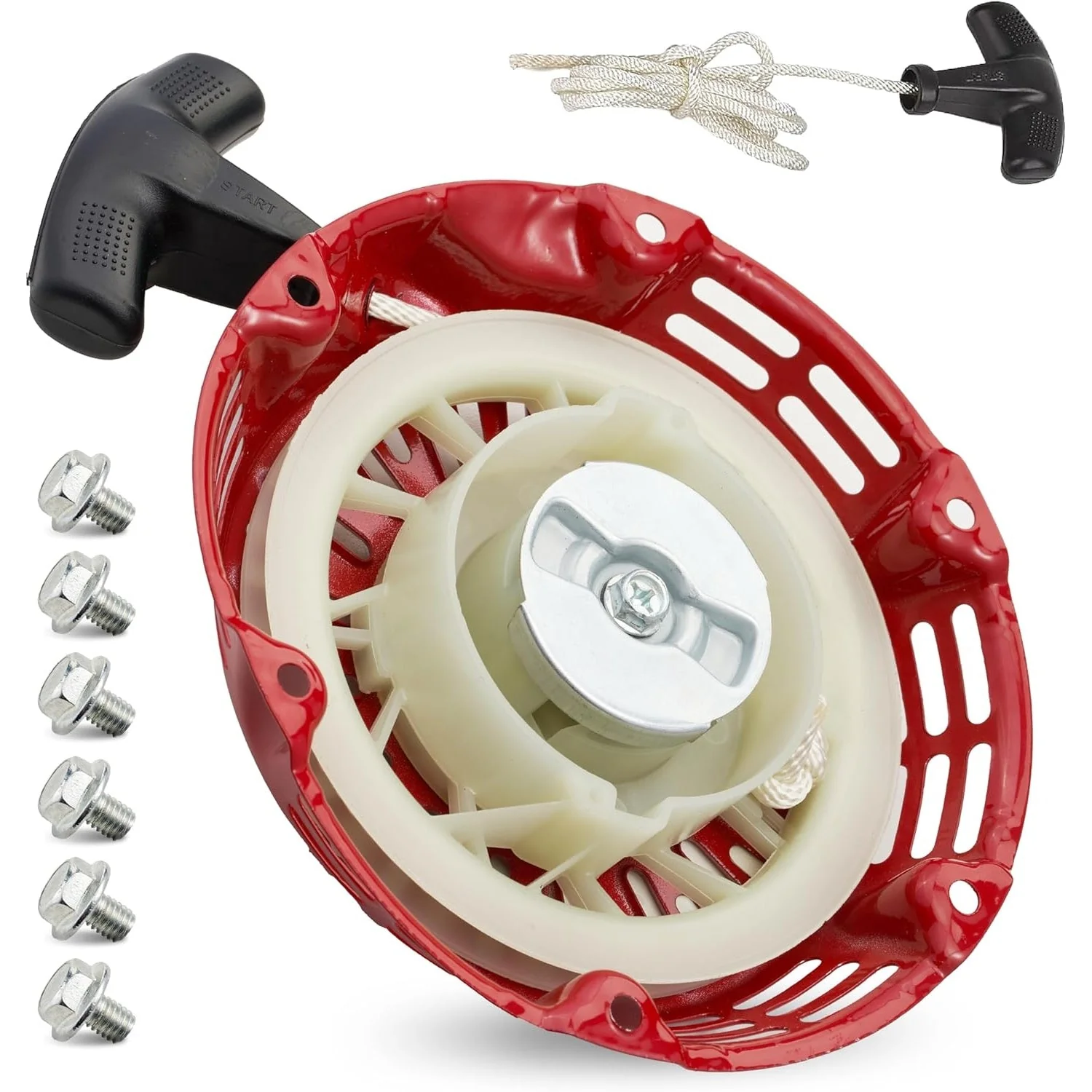

212cc Pull Start Recoil Starter Assembly

Key Features

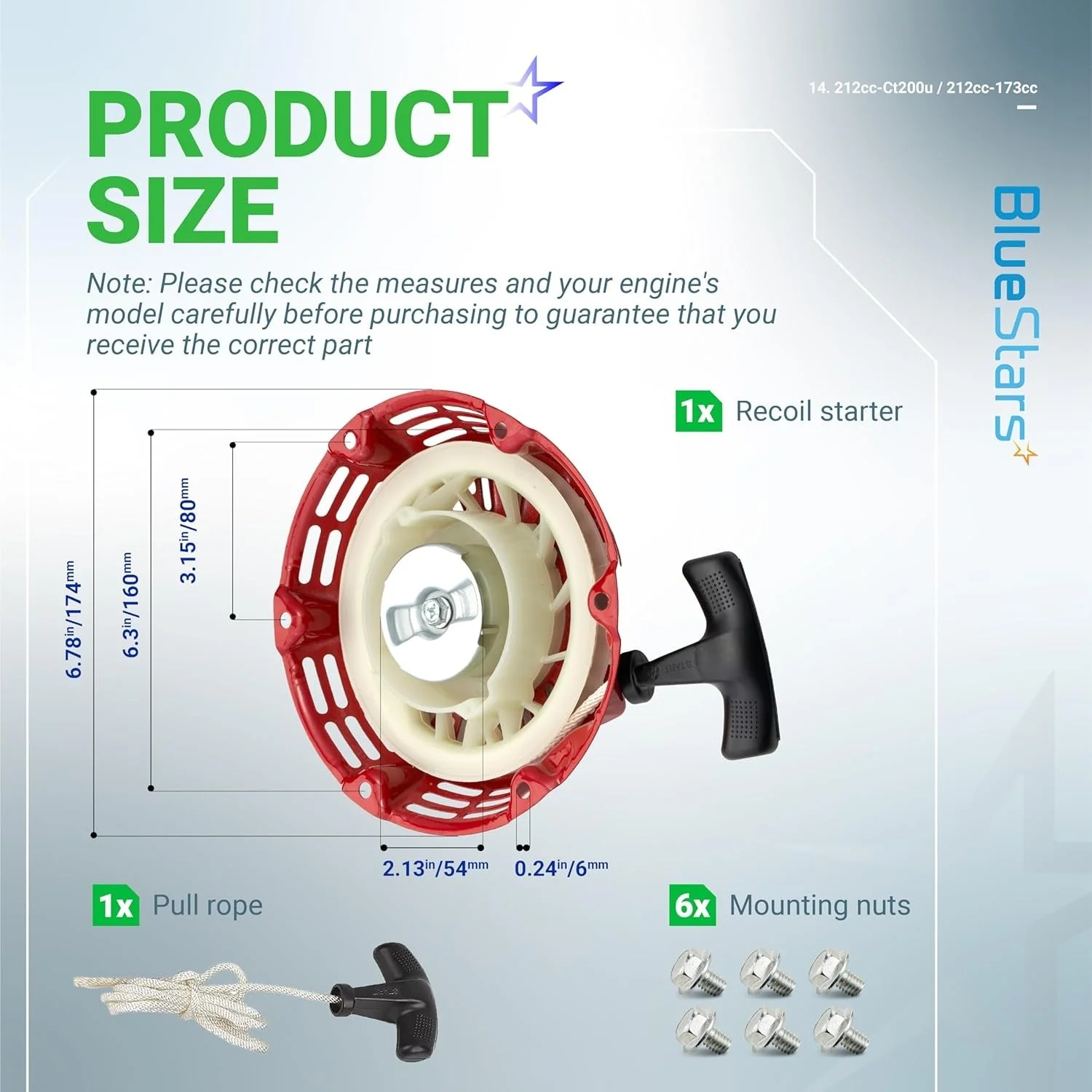

• Complete recoil starter assembly designed for high-compression OHV engines ranging from 160cc to 212cc.

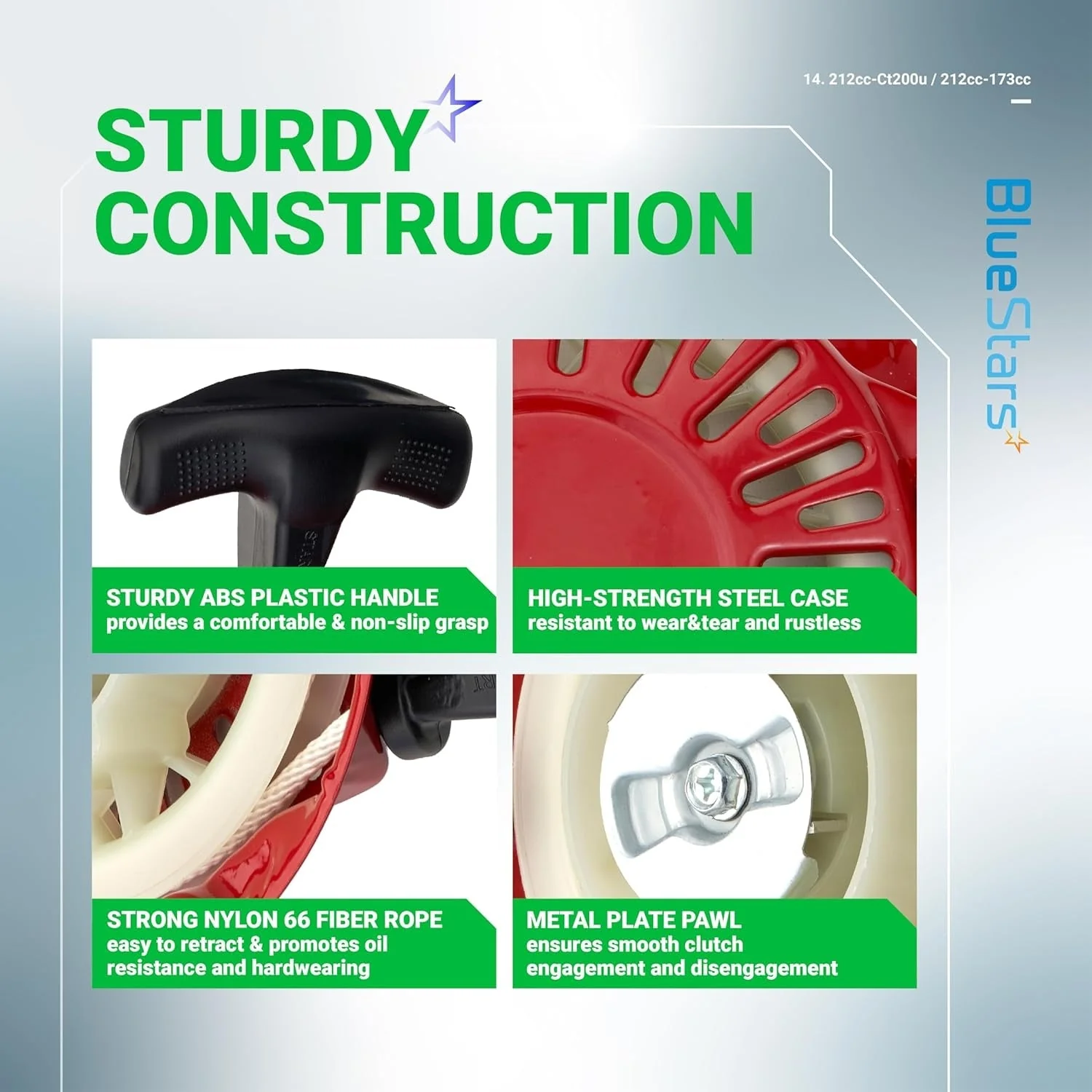

• High-impact ABS plastic housing and reinforced metal pawl for increased durability during cold starts.
• Heavy-duty braided nylon pull cord engineered to resist fraying and snapping under high tension.
• Ergonomic "T-handle" grip provides a secure hold for consistent mechanical leverage.
• Direct-bolt installation with a standard 6-hole mounting pattern for broad engine compatibility.

Replaces / Cross-Reference Part Numbers

• 28400-ZE3-W01ZA
• 28400-ZE3-W01
• 043001000001-pred
• 28400-ZE1-003ZA
• 28400-ZE8-013ZA
• 28400-ZH8-013ZA
• 28400-ZH8-013YA
• 28400-ZE1-003ZF

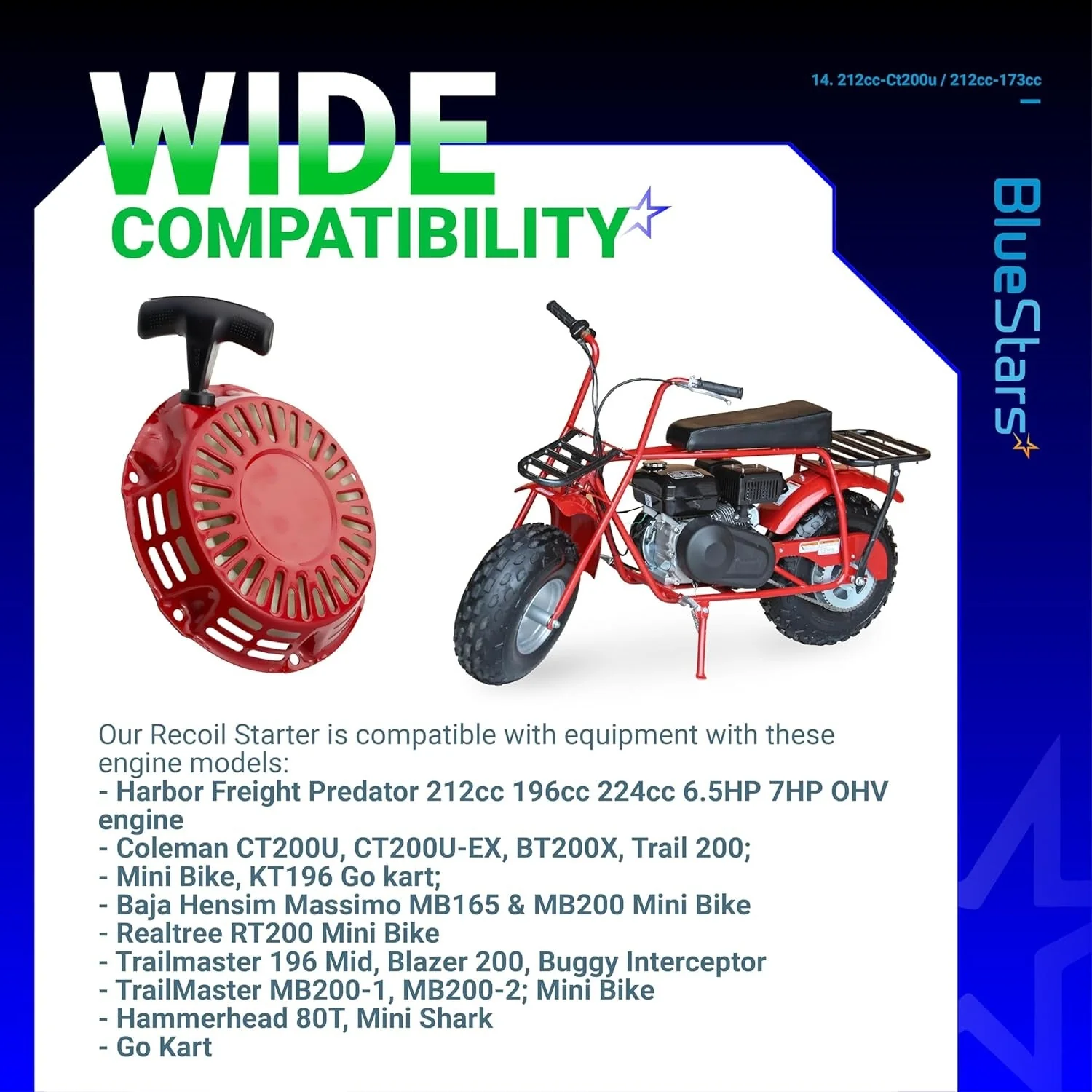

Compatibility & Fitment

• Harbor Freight Predator: 173cc (69730, 69727) and 212cc (6.5HP / 7HP) OHV engines.
• Go-Karts & Pit Bikes: Compatible with Coleman, TrailMaster, and Hammerhead units using 196cc/212cc clones.
• Power Equipment: Fits various generators, lawnmowers, pressure washers, and water pumps using GX160, GX200, or 168F/170F engine platforms.

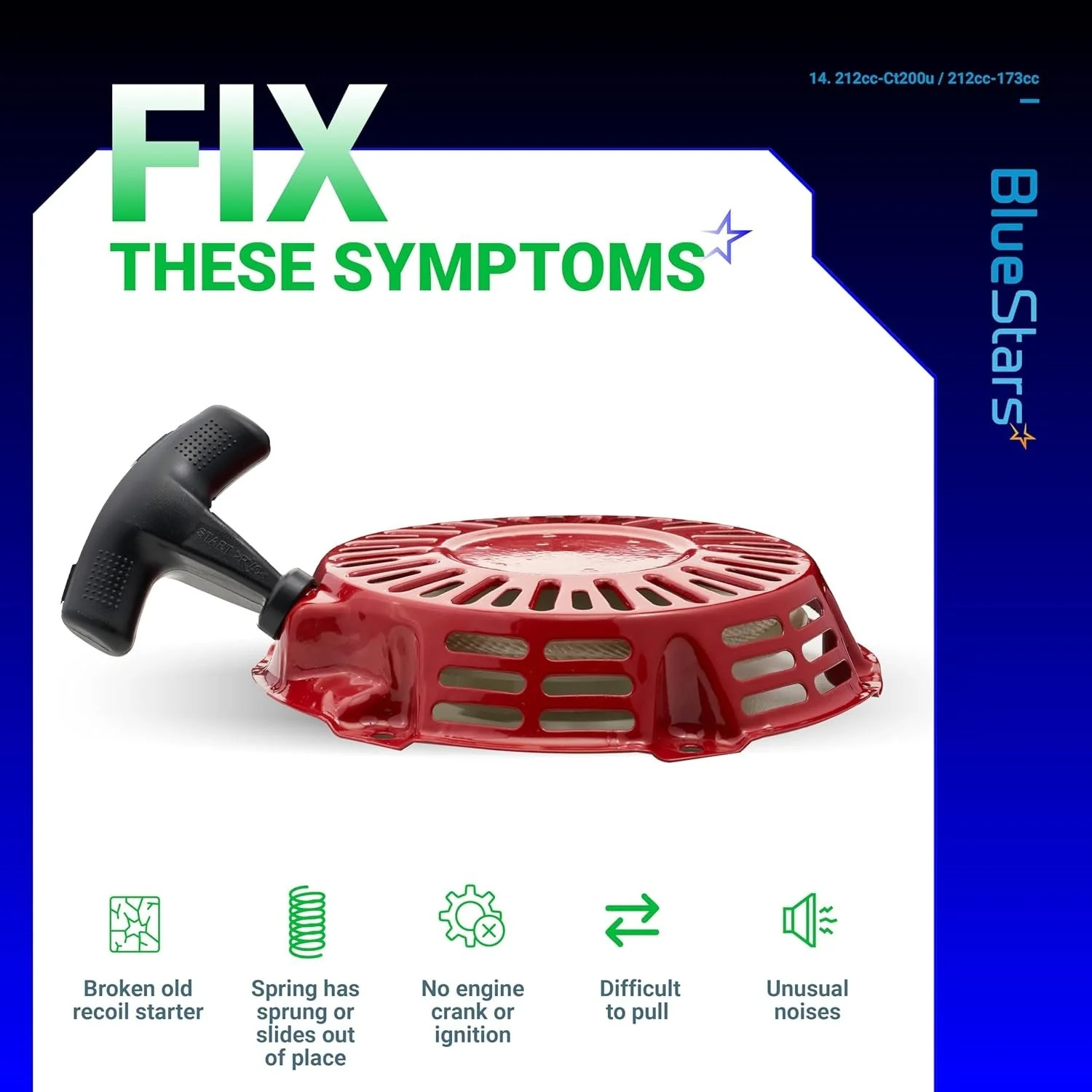

When to Replace

• Cord Failure: The pull rope is frayed, snapped, or fails to retract back into the housing.

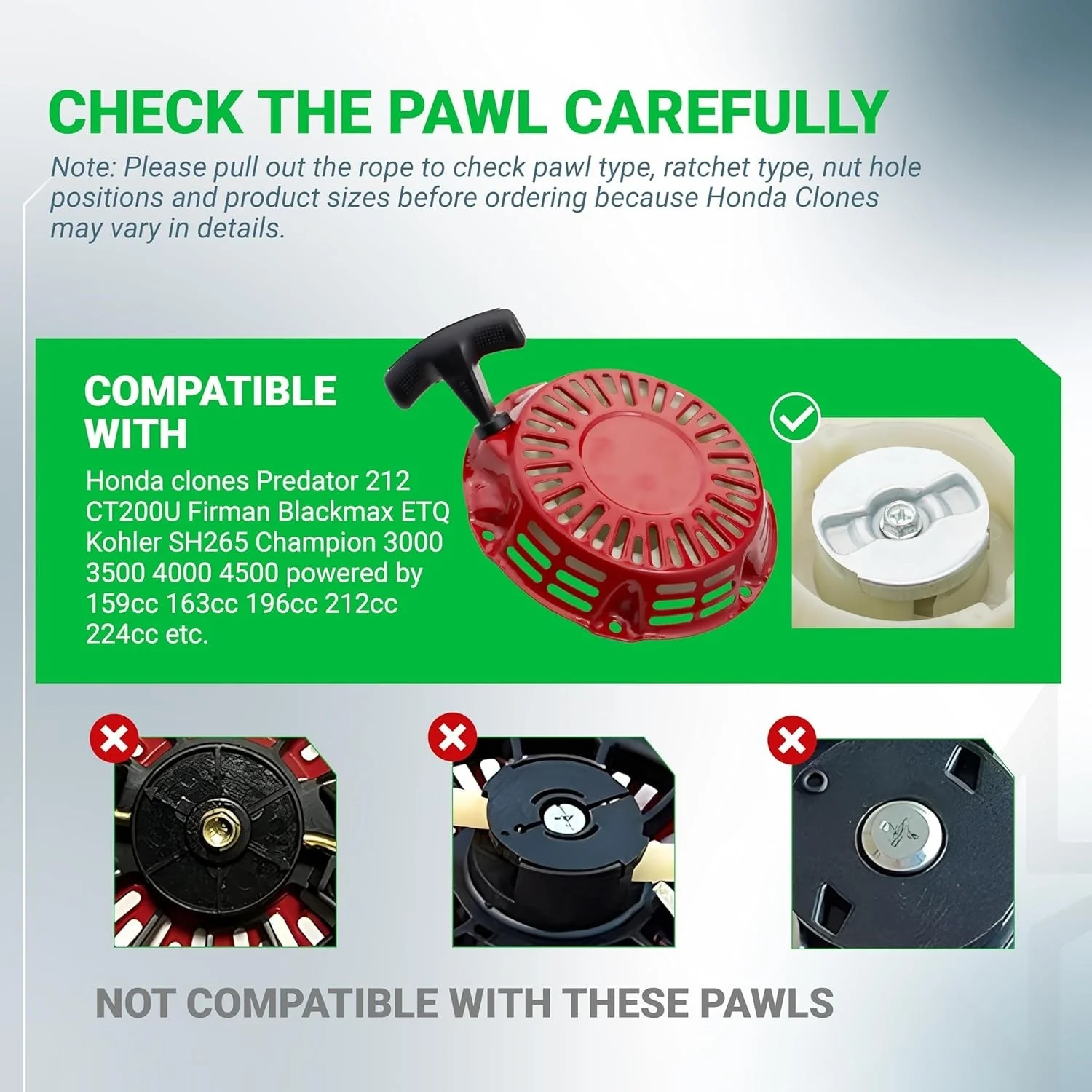

• Pawl Slippage: The starter spins freely without engaging the engine flywheel.
• Mechanical Binding: The recoil mechanism feels gritty, sticks, or requires excessive force to pull.
• Housing Damage: The metal or plastic casing is bent or cracked, interfering with the internal spring tension.
• Spring Failure: The internal recoil spring has snapped, resulting in zero tension on the pull cord.

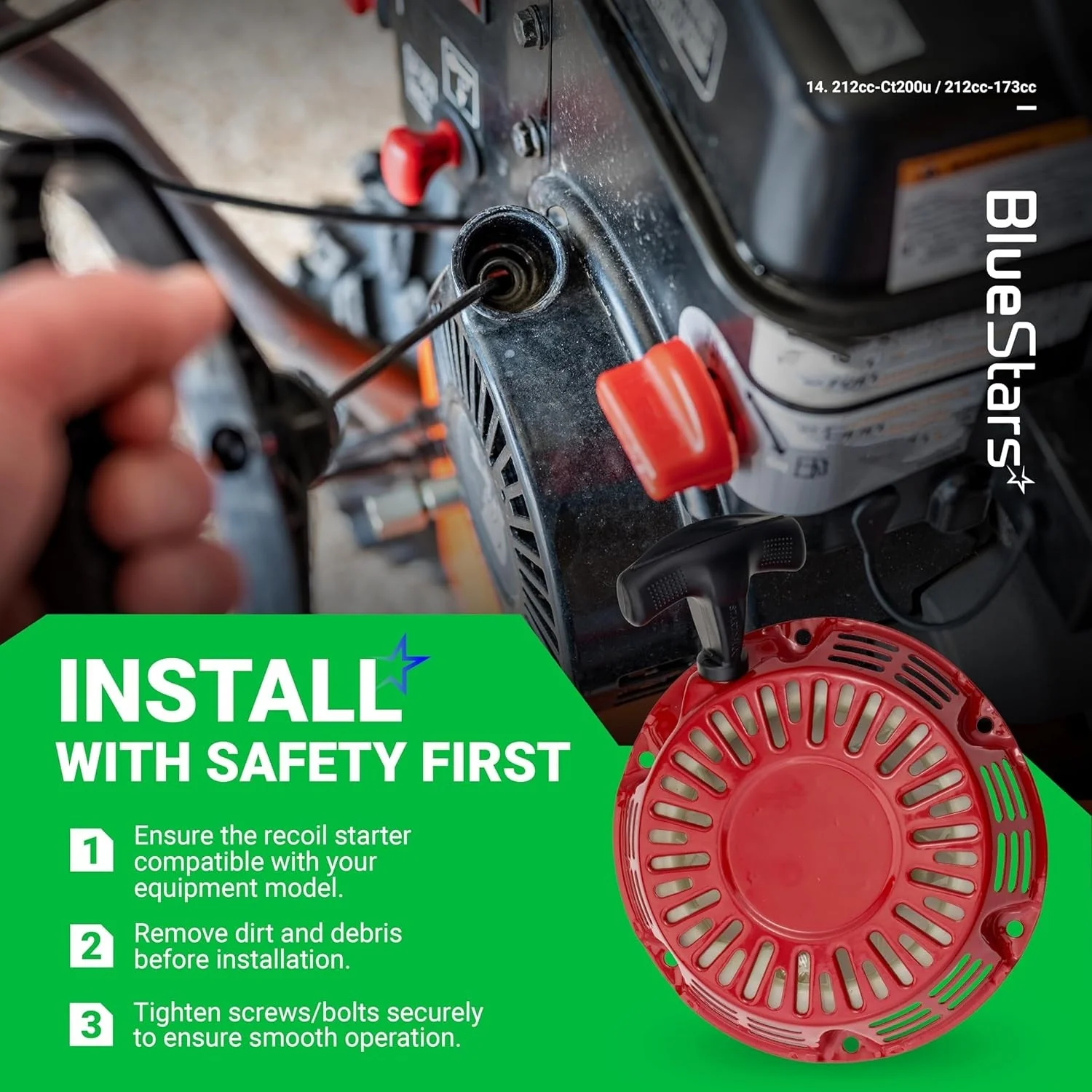

Installation Tips

• Ensure the engine is turned off and the spark plug wire is disconnected before installation for safety.
• Remove the existing starter by unscrewing the mounting bolts; retain the original bolts as replacements may vary in thread pitch.
• Align the new recoil starter with the mounting holes on the engine shroud and the starter cup on the flywheel.
• Hand-tighten the bolts in a cross-pattern to ensure the housing sits flush and centered over the flywheel.
• Pull the starter cord slowly once to ensure the internal pawls engage the starter cup correctly before fully tightening the bolts.
• Avoid "snap-back" releases; always guide the handle back to the housing to prevent internal spring or cord damage.
