241685703 Refrigerator Water Dispenser Actuator for Frigidaire Kenmore Refrigerators

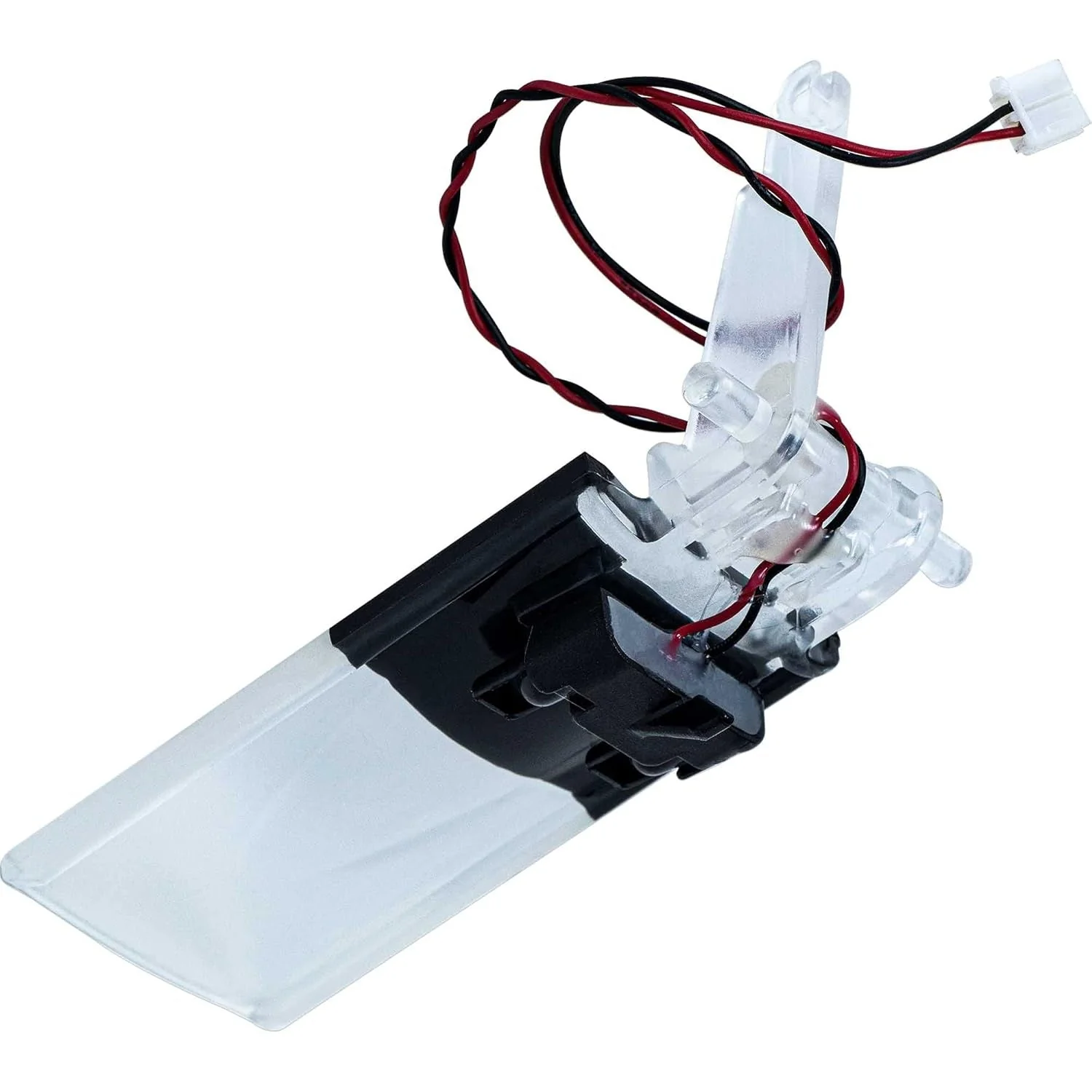

241685703 Refrigerator Water Dispenser Actuator

Key Features

• Direct replacement for refrigerator water dispenser actuator
• Activates water flow when pressed
• Color: Black

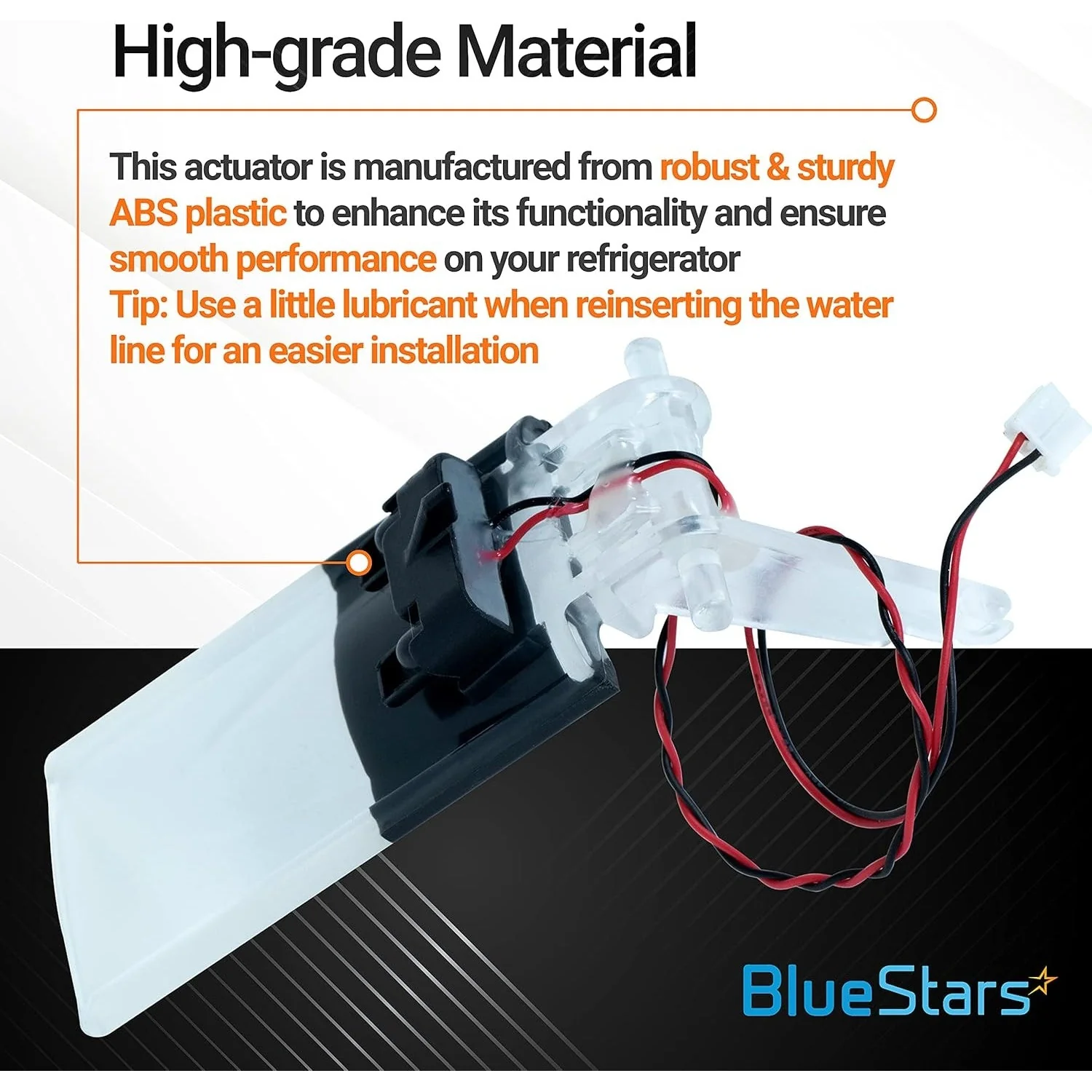

• Material: Plastic

Replaces / Cross-Reference Part Numbers

• AP3963432
• PS1526418
• AH1526418
• EA1526418
• EAP1526418
• 5304433613
• 1195920

Compatibility & Fitment

• Fits select refrigerator models from Frigidaire, Kenmore, and Electrolux
• Commonly found in Kenmore Elite 253 series
• Compatible with Frigidaire series including FLS, FRS, FSC, GHS, GLH, LES, and PLH
• Verified to fit models such as FLSC238DB4, FLSC238DS8, and FLSC238JS0

When to Replace

• The actuator is physically cracked, broken, or missing
• Water does not dispense when the actuator is pushed
• The actuator paddle feels loose or does not spring back

Installation Tips

• Disconnect power to the refrigerator before starting the repair
• The old actuator can typically be removed by prying it out from the dispenser housing
• Ensure the new actuator's springs and tabs are correctly aligned before snapping it into place
