285753A Metal Core Motor Coupling Kit for Kenmore Whirlpool Washers

285753A Metal Core Motor Coupling

Key Features

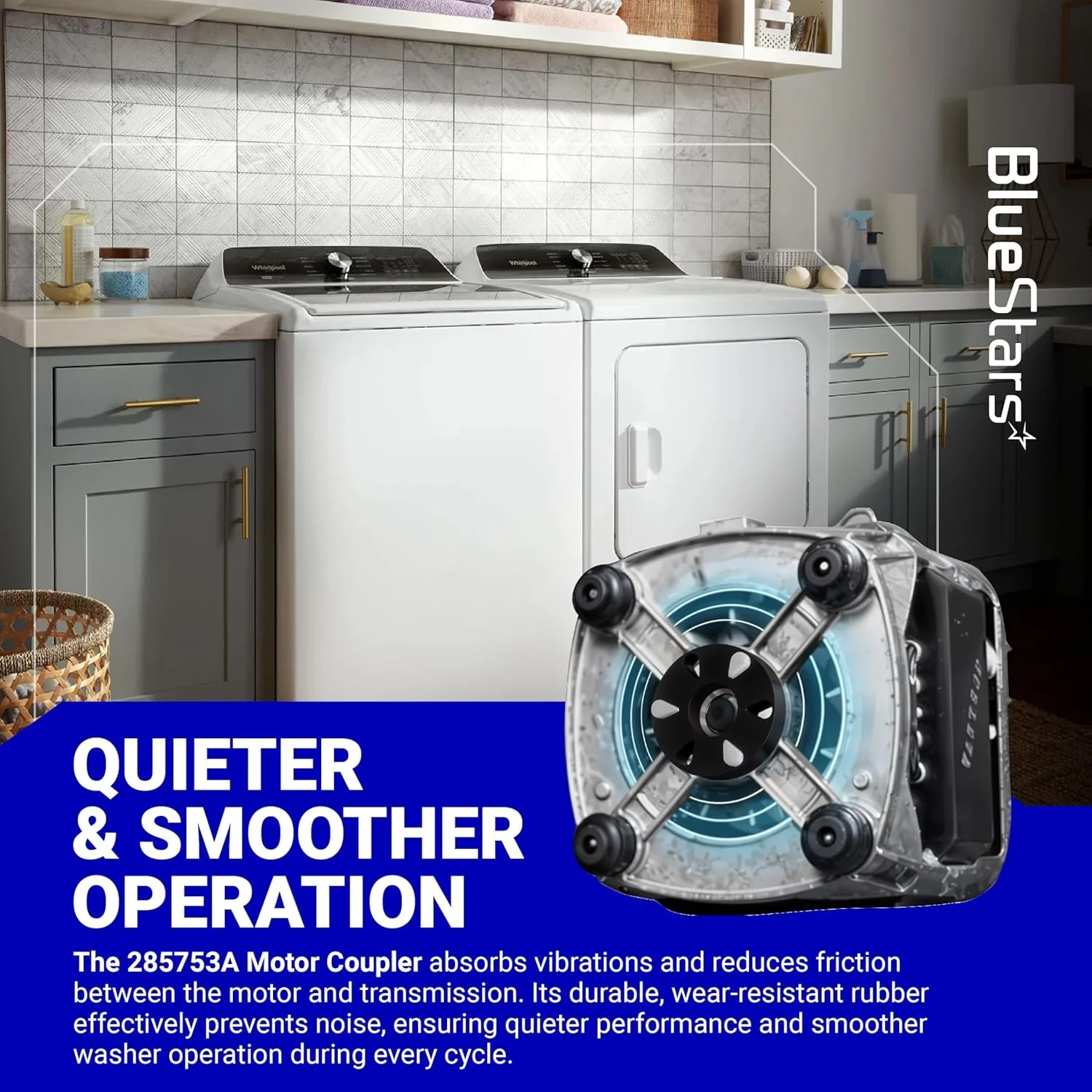

• Connects the drive motor to the washer transmission.
• Designed for direct-drive (belt-less) washing machines.

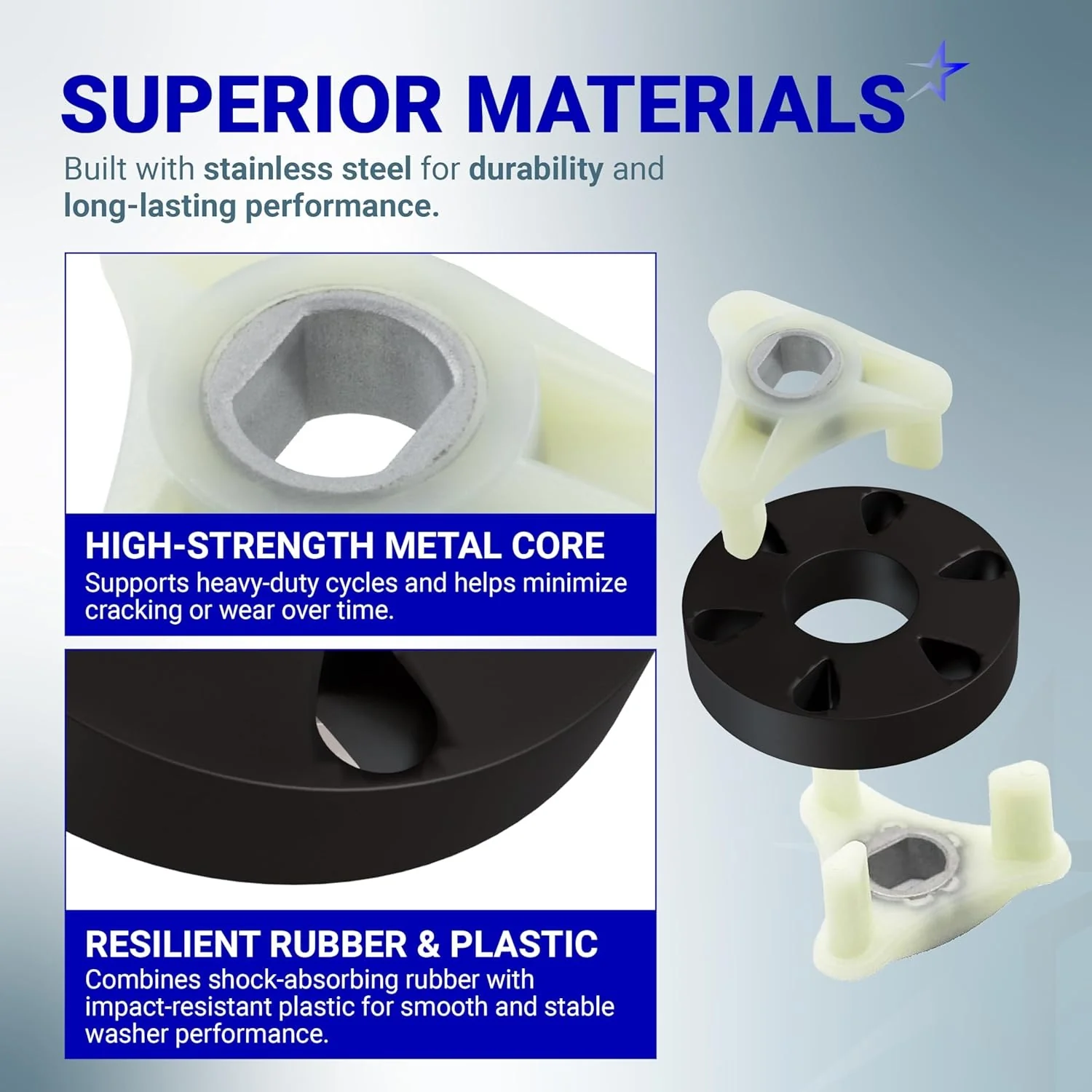

• Features a reinforced metal core for improved durability and longevity.
• Engineered to fail under overload conditions to protect the motor and transmission.

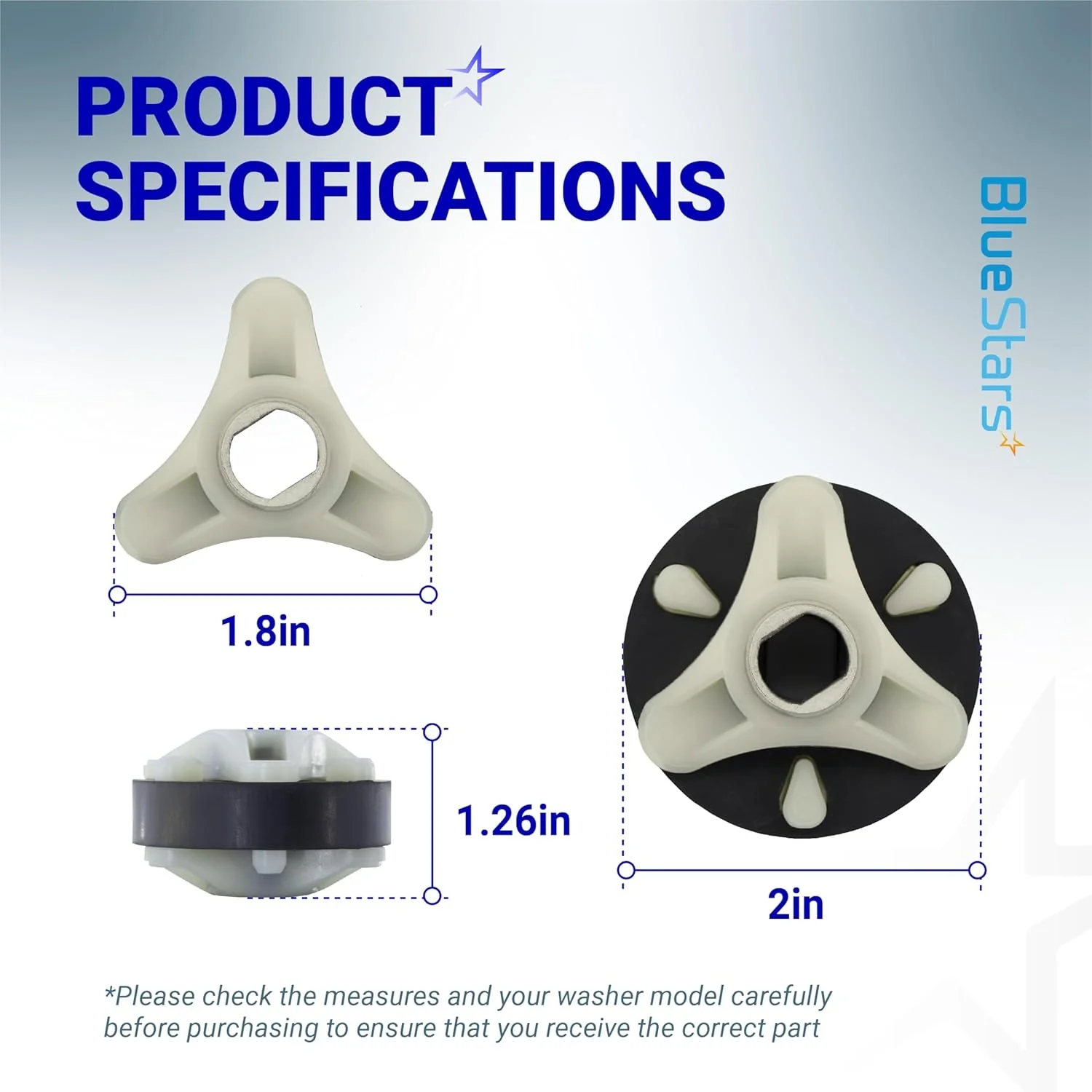

• Kit includes two drive forks and one rubber isolator.

Replaces / Cross-Reference Part Numbers

• AP3963893
• PS1485646
• 285753AVP
• 1195967
• 285753
• 3352470
• 3363664
• 280152
• 285743
• ER285753

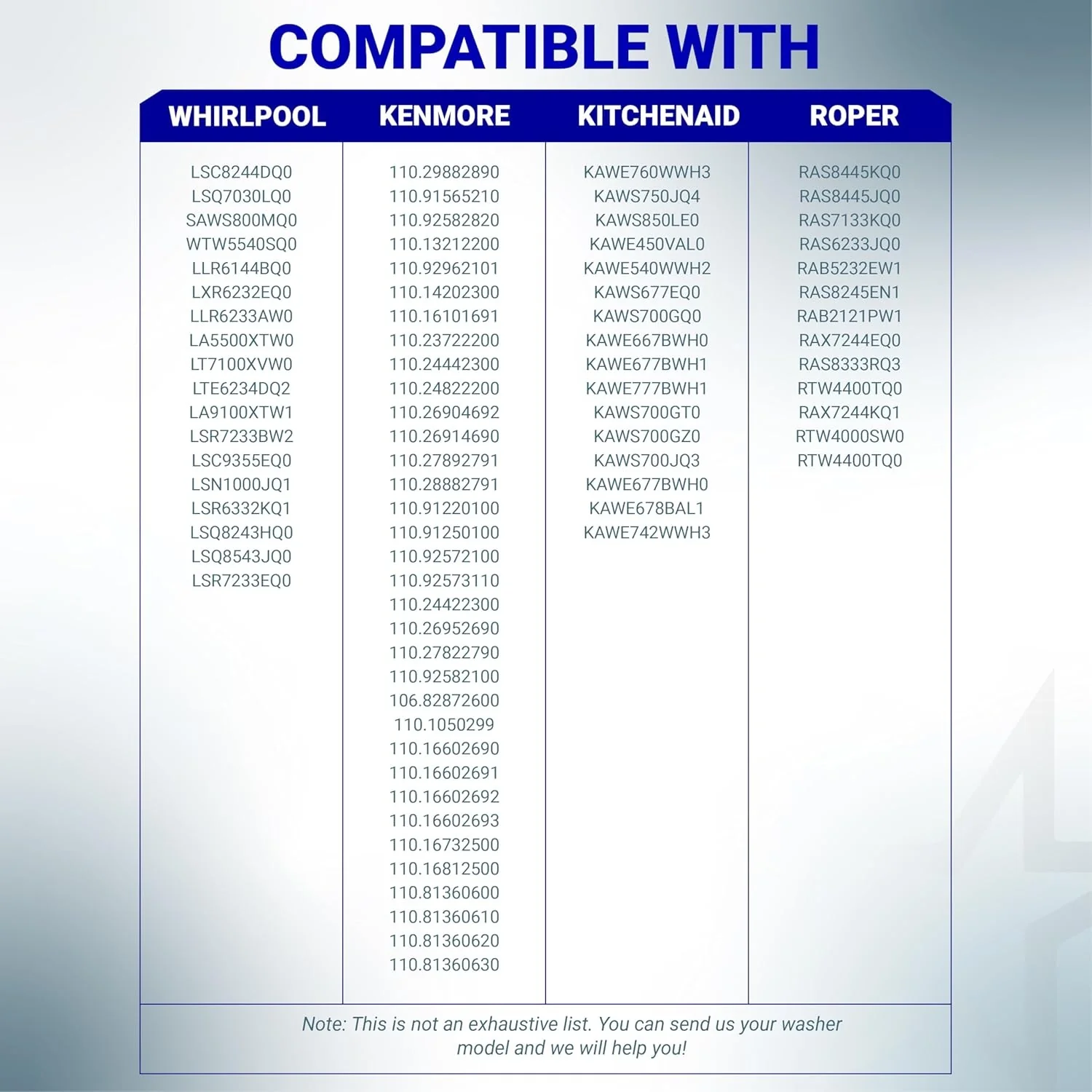

Compatibility & Fitment

• Fits various direct-drive washing machine models.
• Compatible with major brands including Whirlpool, Kenmore, Maytag, Amana, Roper, Estate, and KitchenAid.

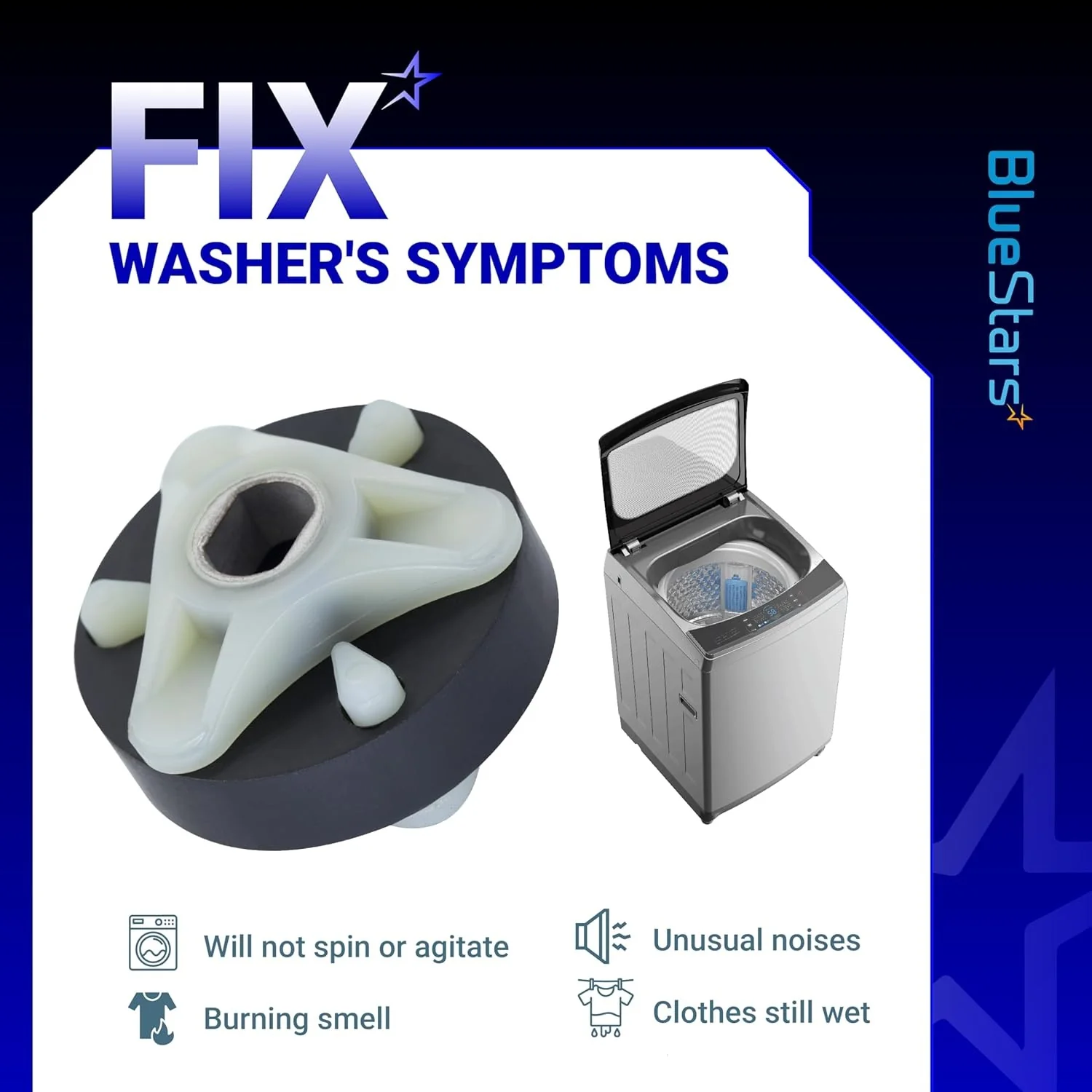

When to Replace

• The washer motor runs, but the tub does not agitate or spin.
• A loud noise is heard when the motor attempts to start a cycle.
• The washer fills with water but does not proceed to the wash or spin cycle.
• Visual inspection reveals a broken or worn-out coupling.

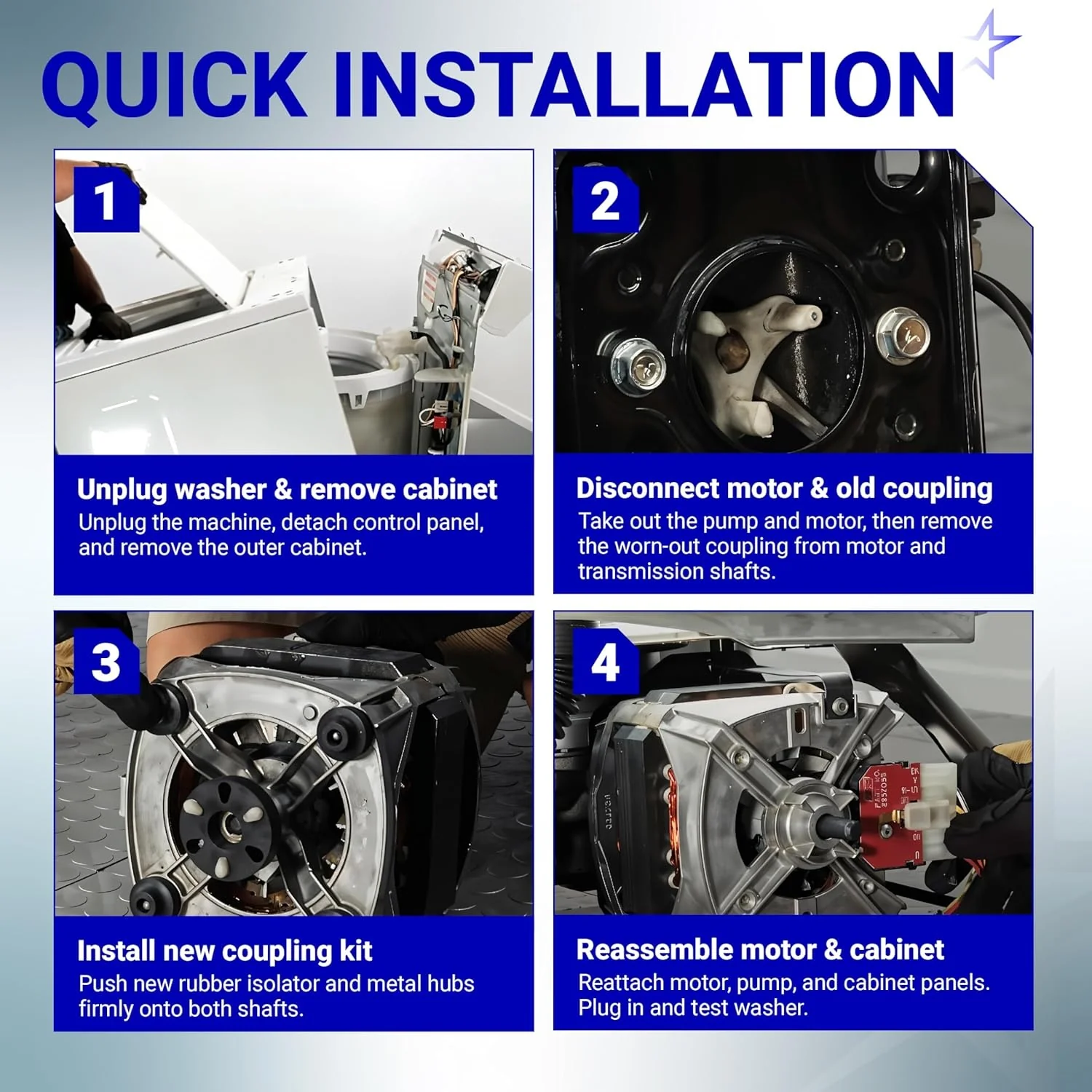

Installation Tips

• Disconnect the washer from all power and water supplies before beginning service.
• The coupling is a press-fit assembly and does not require bolts for installation.
• Ensure the motor shaft and transmission shaft are properly aligned before seating the new coupling.
• Verify the metal inserts on the drive forks are facing the motor and transmission.
