5303281153 & 134503600 Dryer Rear Bearing - For Frigidaire & Kenmore Dryers

5303281153 & 134503600 Dryer Rear Bearing

Key Features

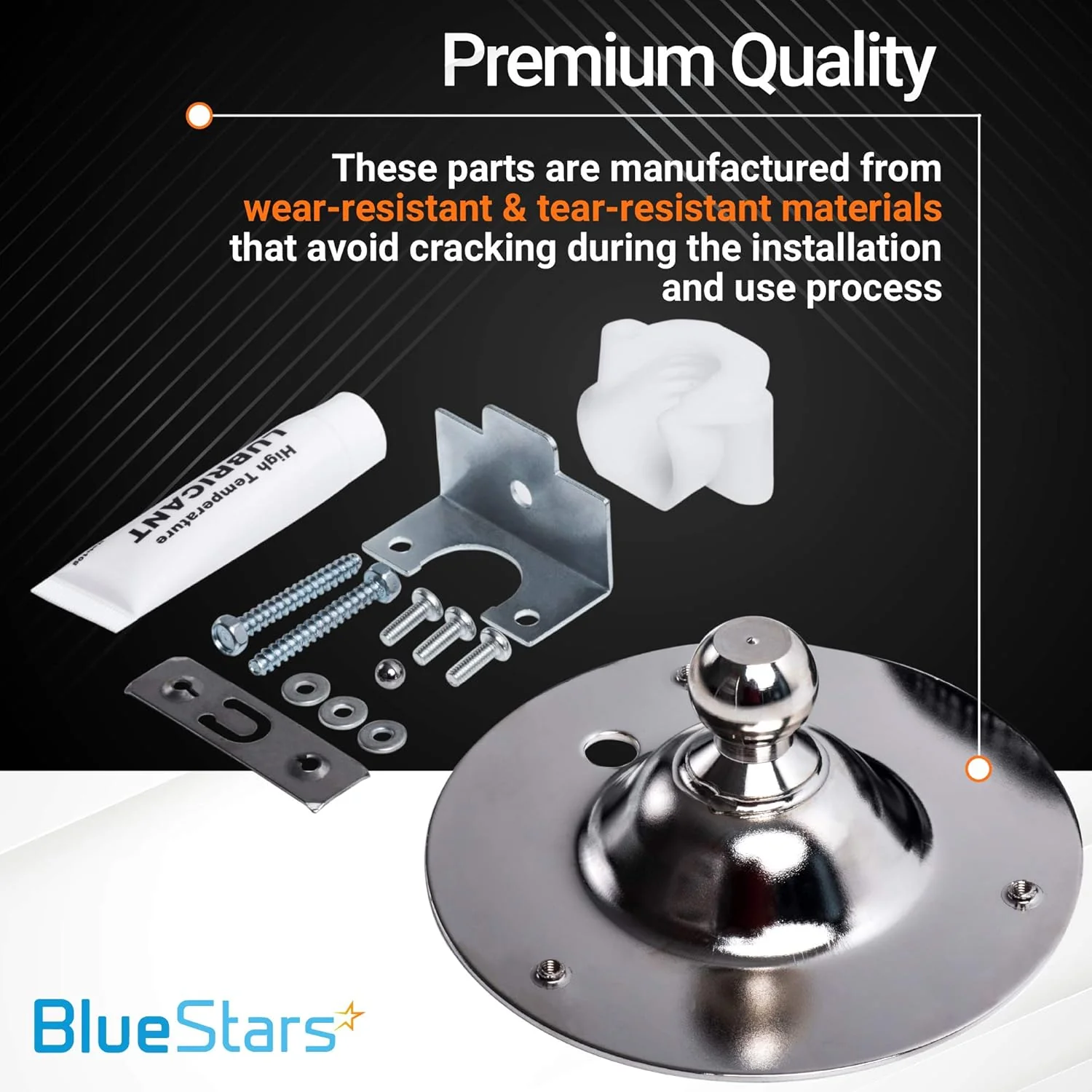

• Kit contains one rear drum bearing assembly (5303281153) and one drum drive belt (134503600).
• Bearing assembly includes a ball bearing, ball shaft, retainer, and high-temperature lubricant.

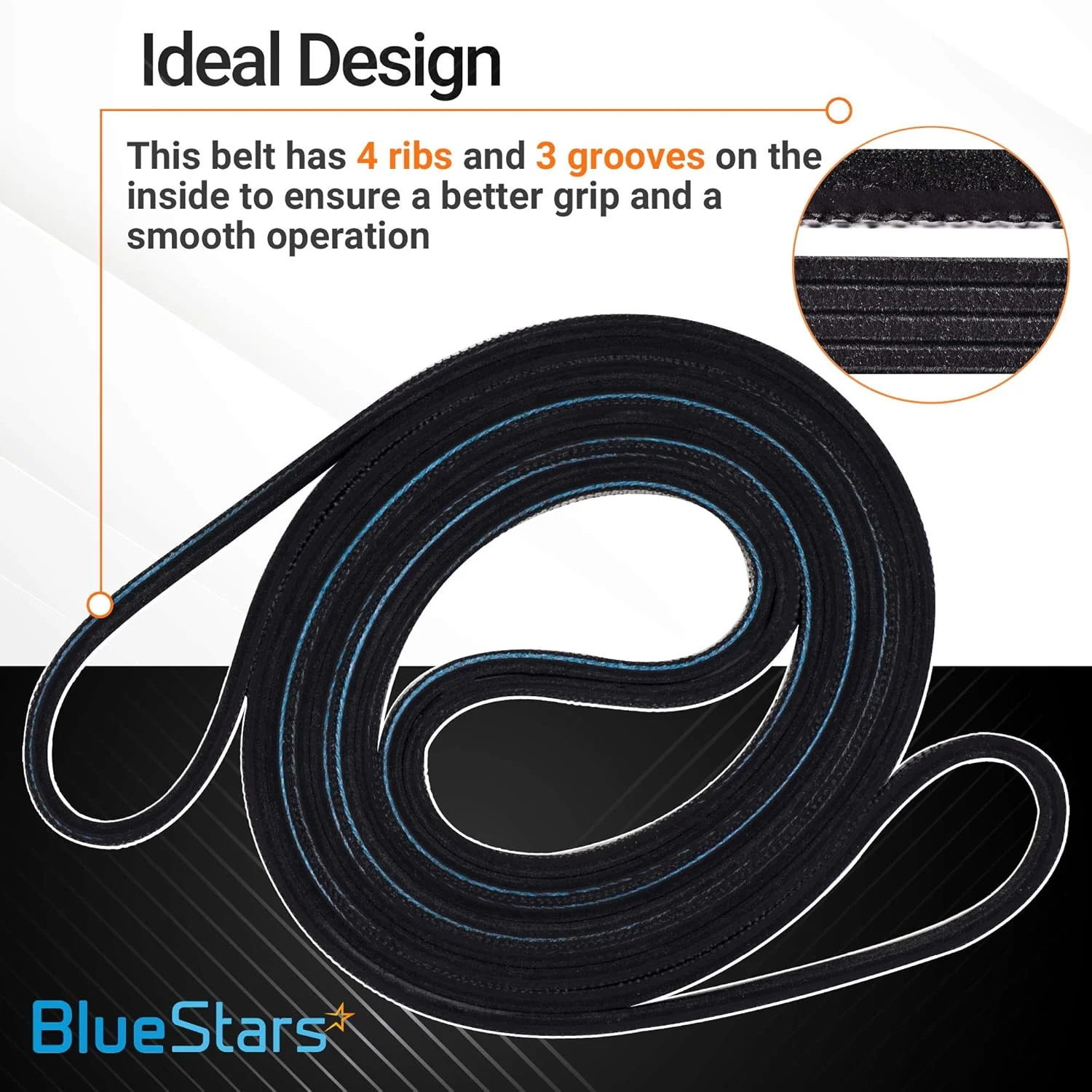

• Drive belt specifications: 4 ribs, 87-3/4 inches in length.
• Bearing assembly material: Alloy Steel

Replaces / Cross-Reference Part Numbers

• Dryer Rear Drum Bearing Kit (5303281153): AP2142648, PS459829, 3281153, 5304459240, 85-852, 1851, DE724, AH459829, EA459829, PD00000097
• Dryer Drum Drive Belt (134503600): AP3865318, PS1148434, 134163400, 1156784, 5303283471, 148270, AH1148434, EA1148434, PD00000114, LB3600

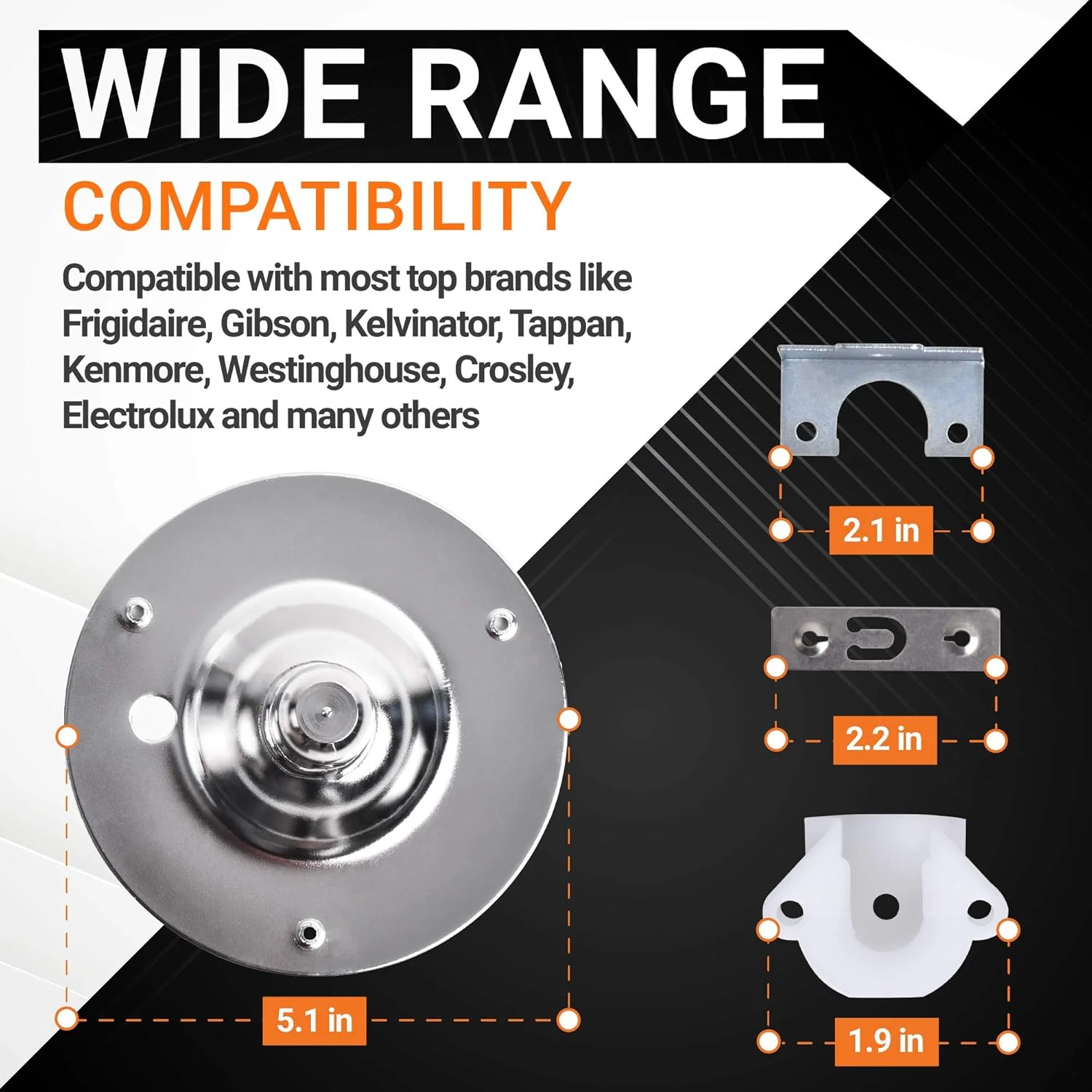

Compatibility & Fitment

• Fits various dryer models from brands including Frigidaire, Crosley, Gibson, Kelvinator, Kenmore, Tappan, and White-Westinghouse.

When to Replace

• Loud squealing, squeaking, or grinding noises originating from the rear of the drum.
• The dryer drum becomes stiff or difficult to turn by hand.
• Dryer stops tumbling during a cycle or fails to start.

Installation Tips

• Always disconnect the dryer from power and gas supplies before beginning service.
• Clean any lint and debris from the dryer cabinet, motor, and bearing housing during replacement.
• Apply the supplied high-temperature lubricant to the ball and socket of the new bearing.
• It is best practice to replace the drum belt and rear bearing at the same time.
