316233902 Oven Temperature Sensor for Frigidaire Kenmore Range Thermistor - 2 Pack

316233902 Oven Temperature Sensor - Pack of 2

Key Features

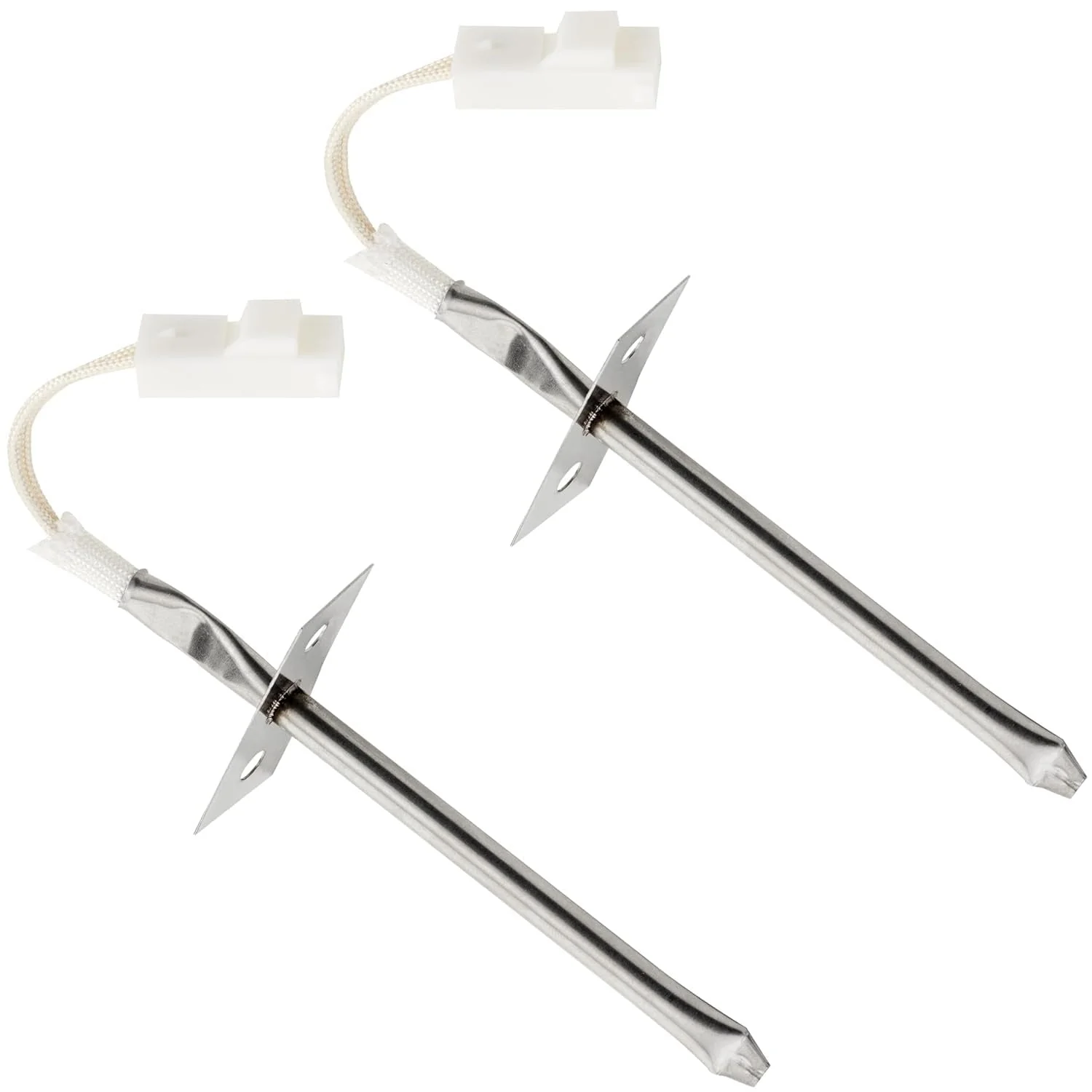

• Package includes two (2) oven temperature sensors.

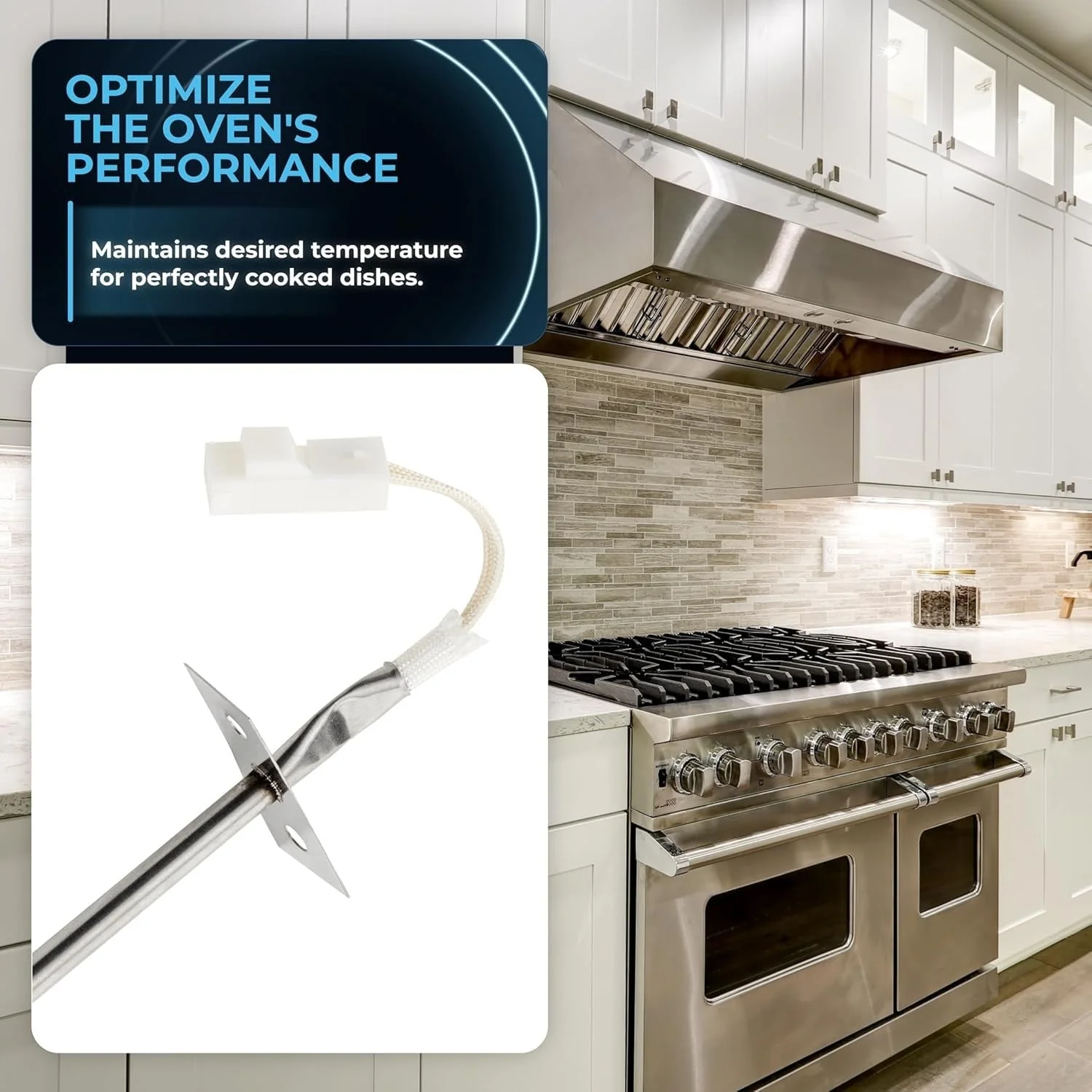

• Monitors internal oven temperature for accurate heat regulation.

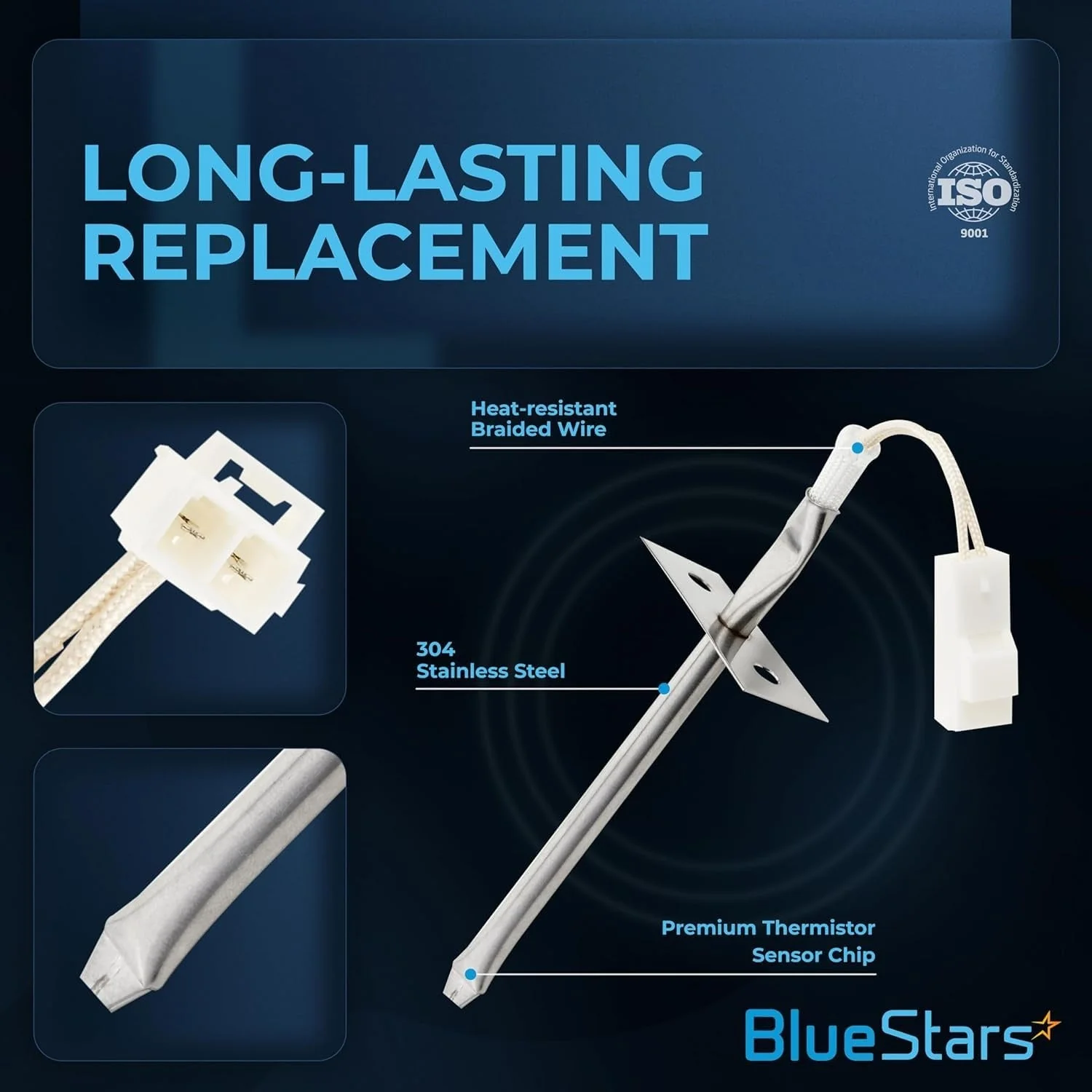

• Durable stainless steel construction for high-temperature resilience.

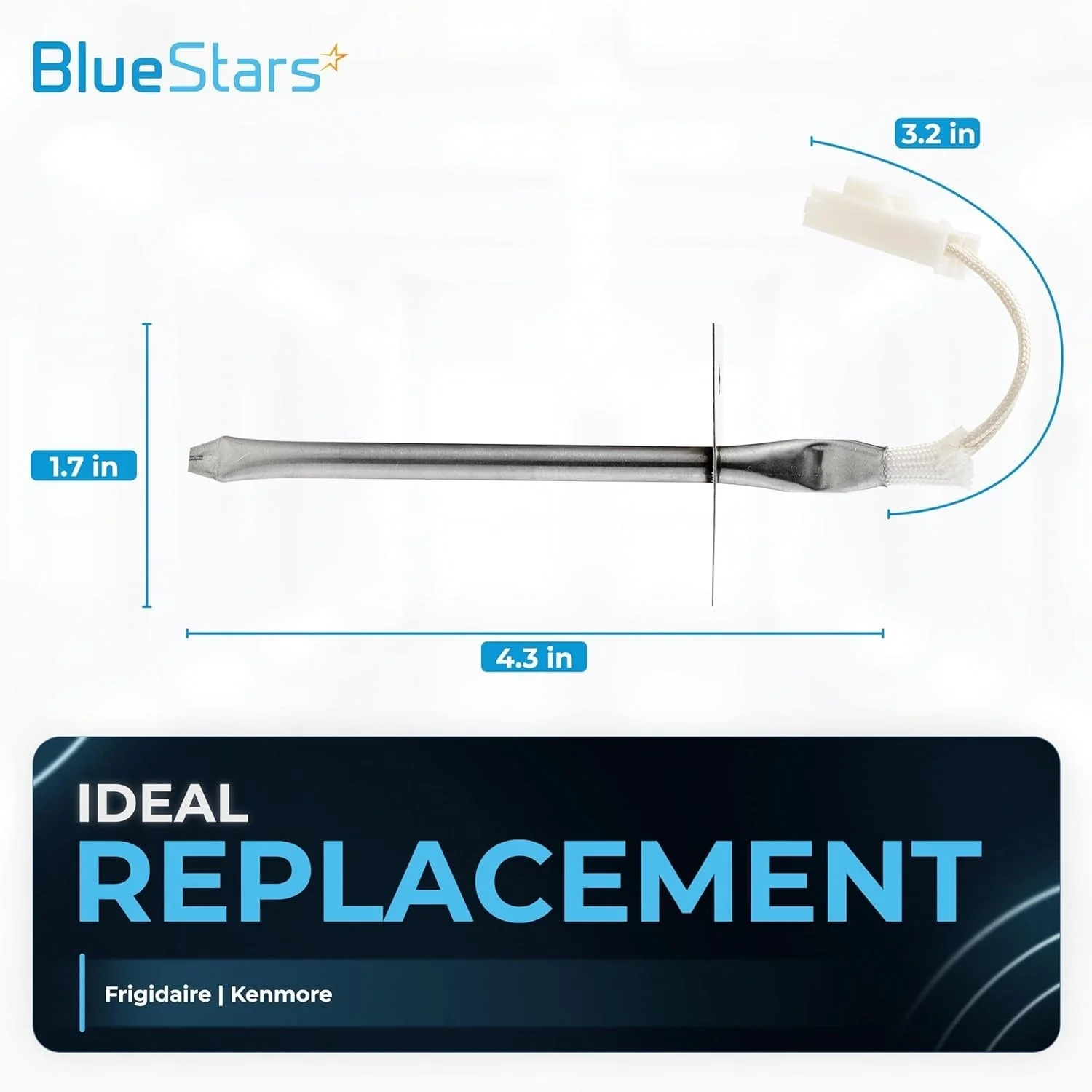

• Probe length: 3.25 inches from tip to bracket.
• Overall length: 4.25 inches.
• Mounting holes are spaced 1.0625 inches apart.

Replaces / Cross-Reference Part Numbers

• AP6888260
• PS12724046
• 316233903
• 316233900
• 316217008
• 4929364
• EAP12724046
• PD00052458
• AH2363999
• OEM23994610

Compatibility & Fitment

• Fits select oven and range models from brands including Frigidaire, Electrolux, and Tappan.
• Always verify compatibility by checking the part number for your specific appliance model.

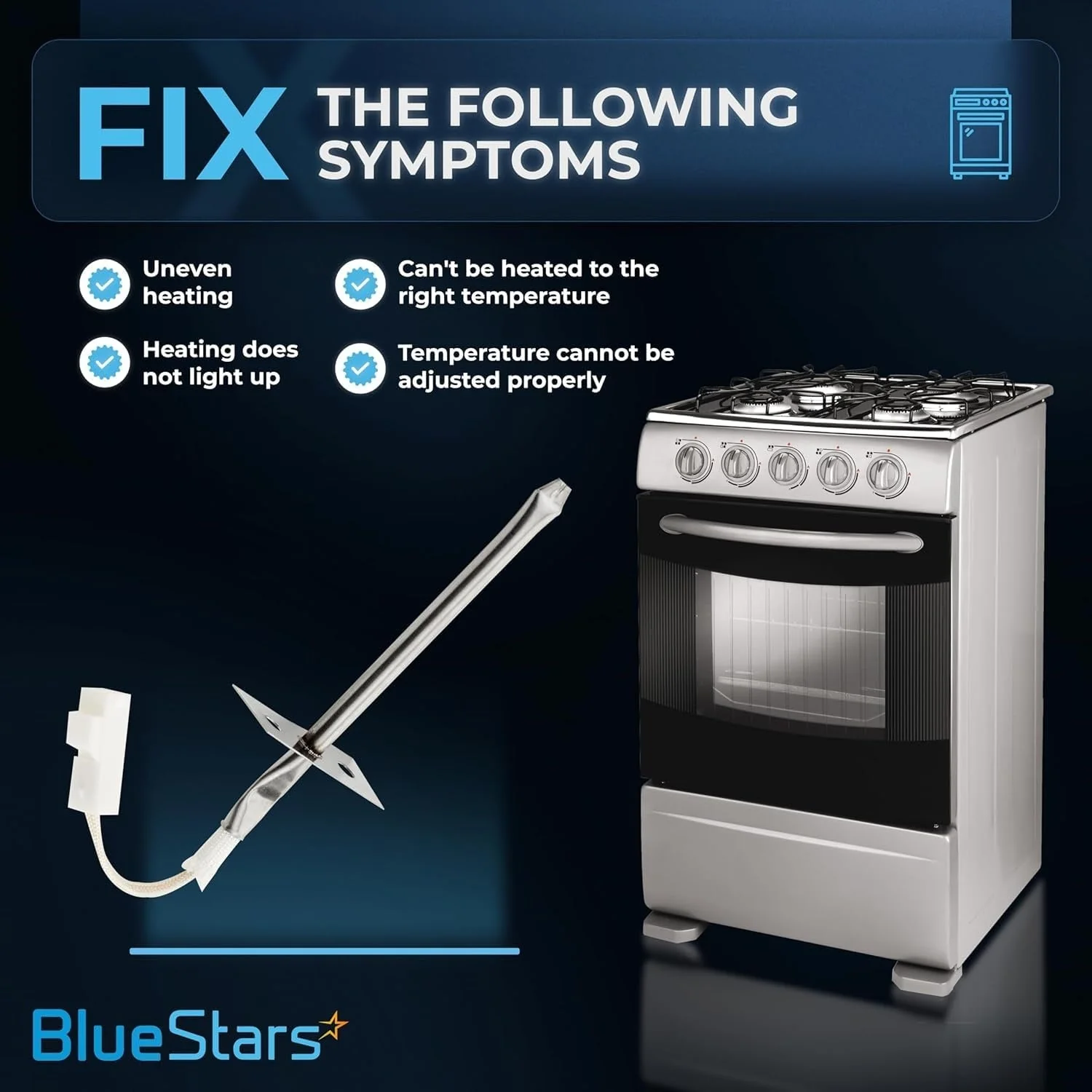

When to Replace

• Oven temperature is inaccurate or fluctuates significantly.
• Food cooks unevenly, burns, or is undercooked.
• Oven displays temperature-related error codes (e.g., F10, F11).
• Oven fails to heat to the selected temperature.

Installation Tips

• Disconnect the oven from its power supply before installation.
• The sensor is typically located in the top rear corner of the oven interior.
• Remove the mounting screws to release the sensor from the oven wall.
• The wire connector is located behind the oven; removal of the rear access panel may be necessary.
