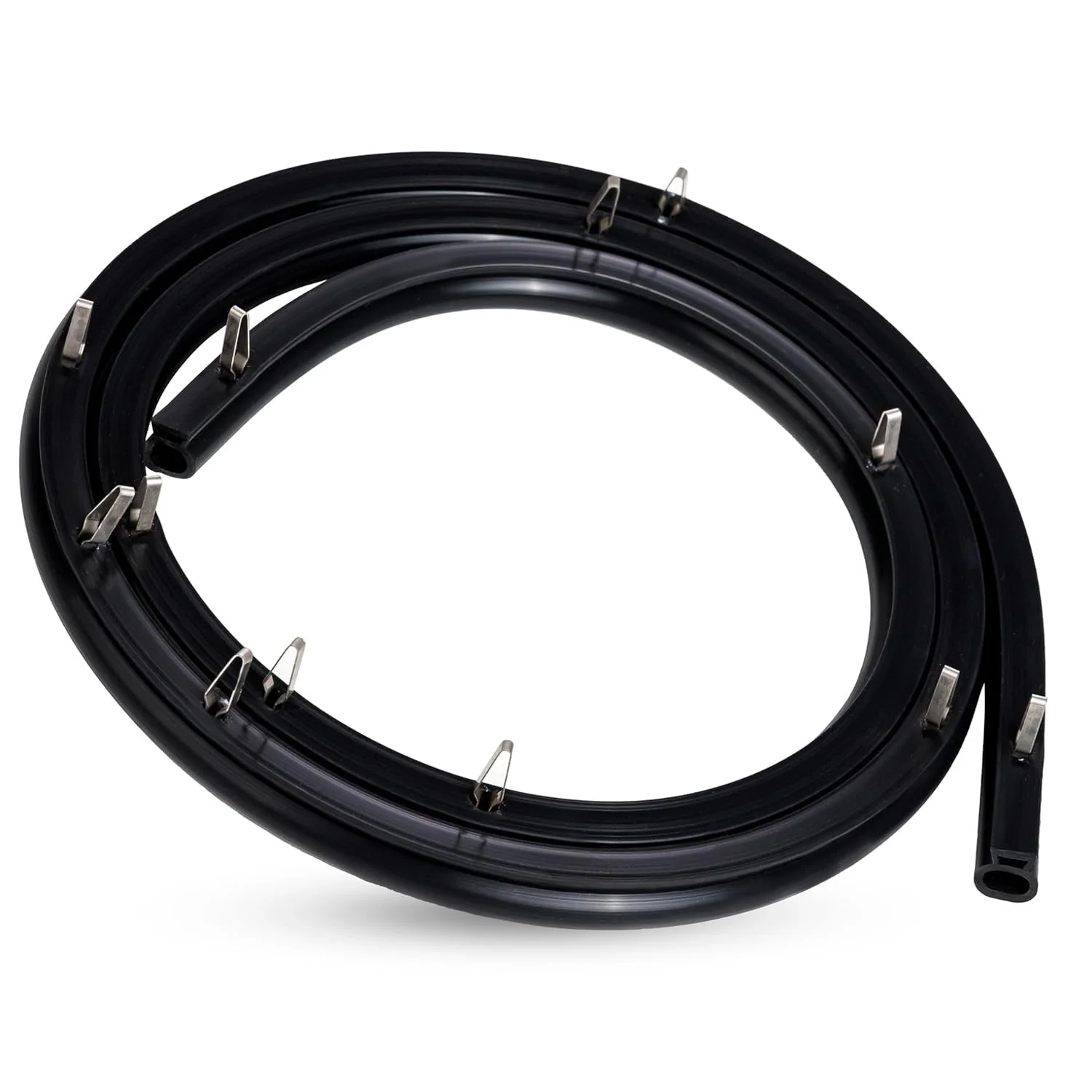

316239700 Range Oven Door Seal Gasket 50.45" with 12 Mounting Clips for Frigidaire Kenmore Oven

316239700 Range Oven Door Seal Gasket 50.45" with 12 Mounting Clips

Key Features

• Total Length: 50.45 inches

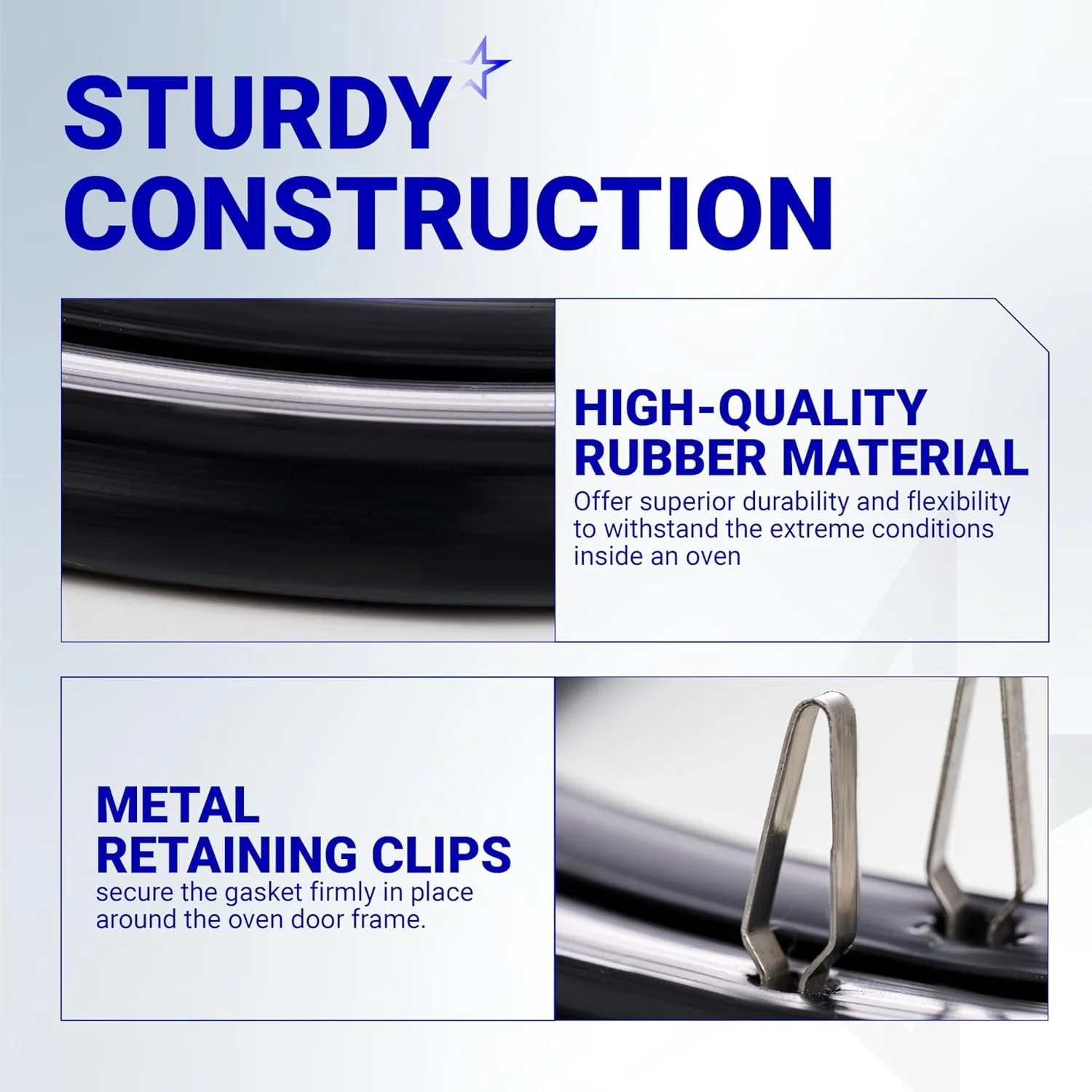

• Material: Durable, high-temperature resistant rubber
• Creates a tight seal to maintain oven temperature and improve efficiency
• Includes one oven door gasket and 12 mounting clips

Replaces / Cross-Reference Part Numbers

• AP2126661
• PS440011
• 833130
• AH440011
• EA440011
• EAP440011
• AFR16133

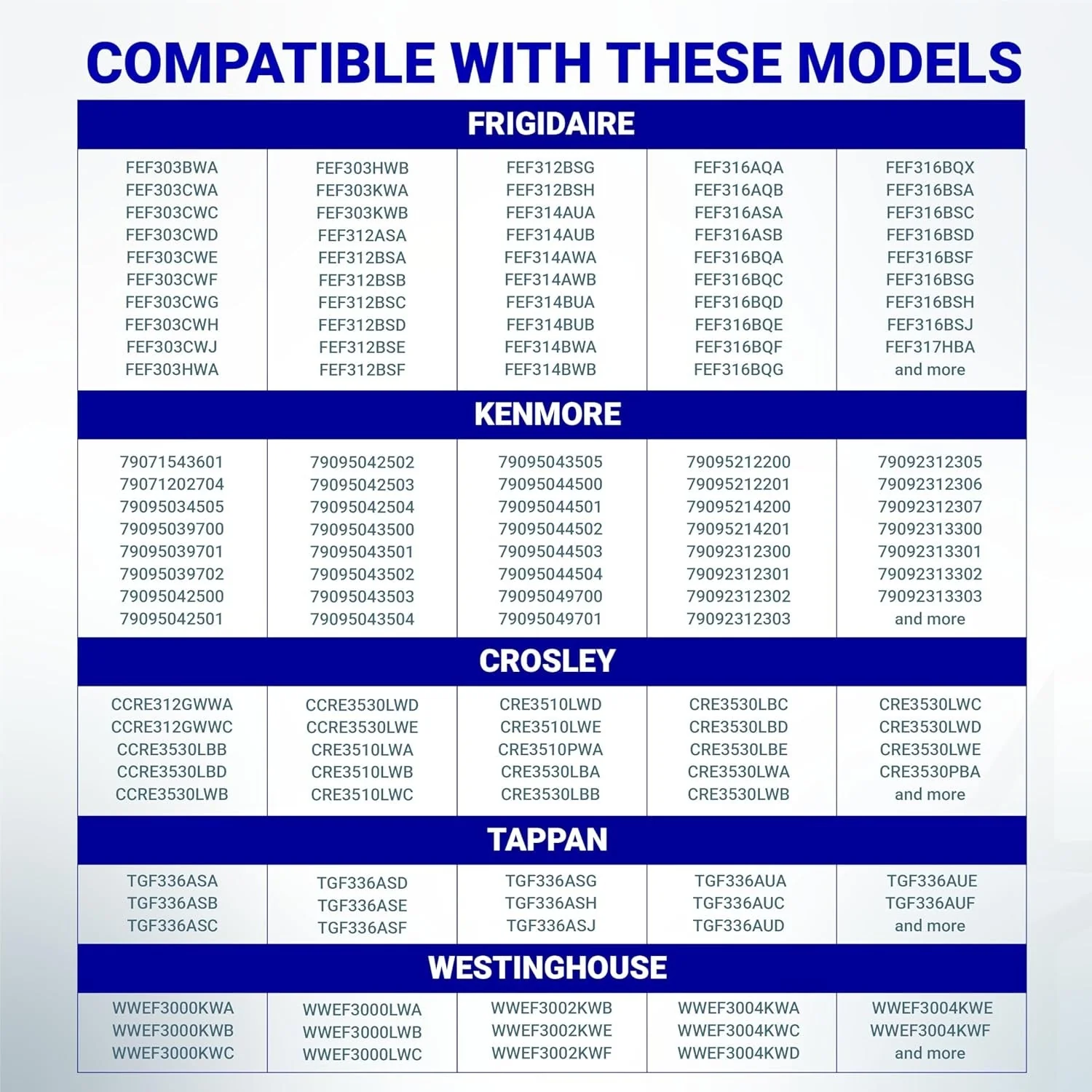

Compatibility & Fitment

• Designed for various range and oven models from brands including Frigidaire, Kenmore, Crosley, Tappan, White-Westinghouse, Electrolux, and Kelvinator.
• Confirm fitment by checking your appliance's original part number.

When to Replace

• Visible damage such as cracks, tears, or brittleness in the existing seal
• Noticeable heat escaping from around the oven door
• Oven fails to maintain temperature or takes longer than usual to preheat
• Condensation appearing between the glass panels of the oven door

Installation Tips

• Disconnect the appliance from its power source before beginning installation.
• Remove the oven door if necessary for easier access.
• Carefully pull out the old gasket and its mounting clips.
• Clean the channel where the new gasket will be installed.
• Insert the new clips into the designated holes and press the gasket firmly into place, ensuring it is fully seated without gaps.
