3392519 Dryer Thermal Fuse - For Whirlpool Kenmore Dryers - 4 Pack

3392519 Dryer Thermal Fuse

Key Features

• Non-resettable safety component.
• Rated for 196°F (91°C).
• Features two 3/16-inch male terminals.
• Prevents overheating by interrupting power to the heating element or motor circuit.

Replaces / Cross-Reference Part Numbers

• 3392519
• WP3392519
• WP3392519VP
• 3388651
• 694511
• 80005
• AP6008325
• PS11741460
• EAP11741460
• ET401

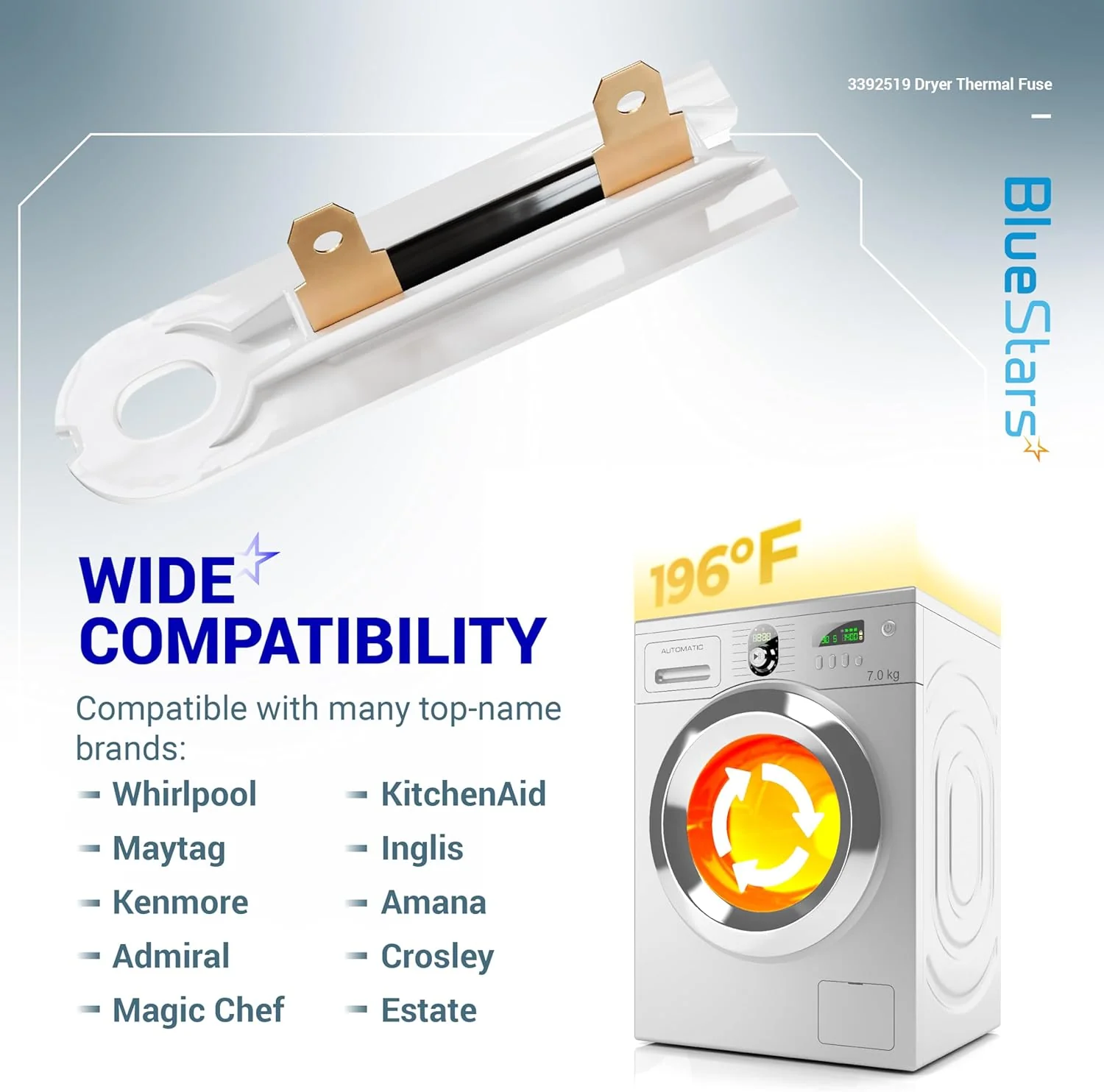

Compatibility & Fitment

• Designed for use in various electric and gas clothes dryers.
• Compatible with models from brands including Whirlpool, Kenmore, Maytag, KitchenAid, Roper, Crosley, and Estate.

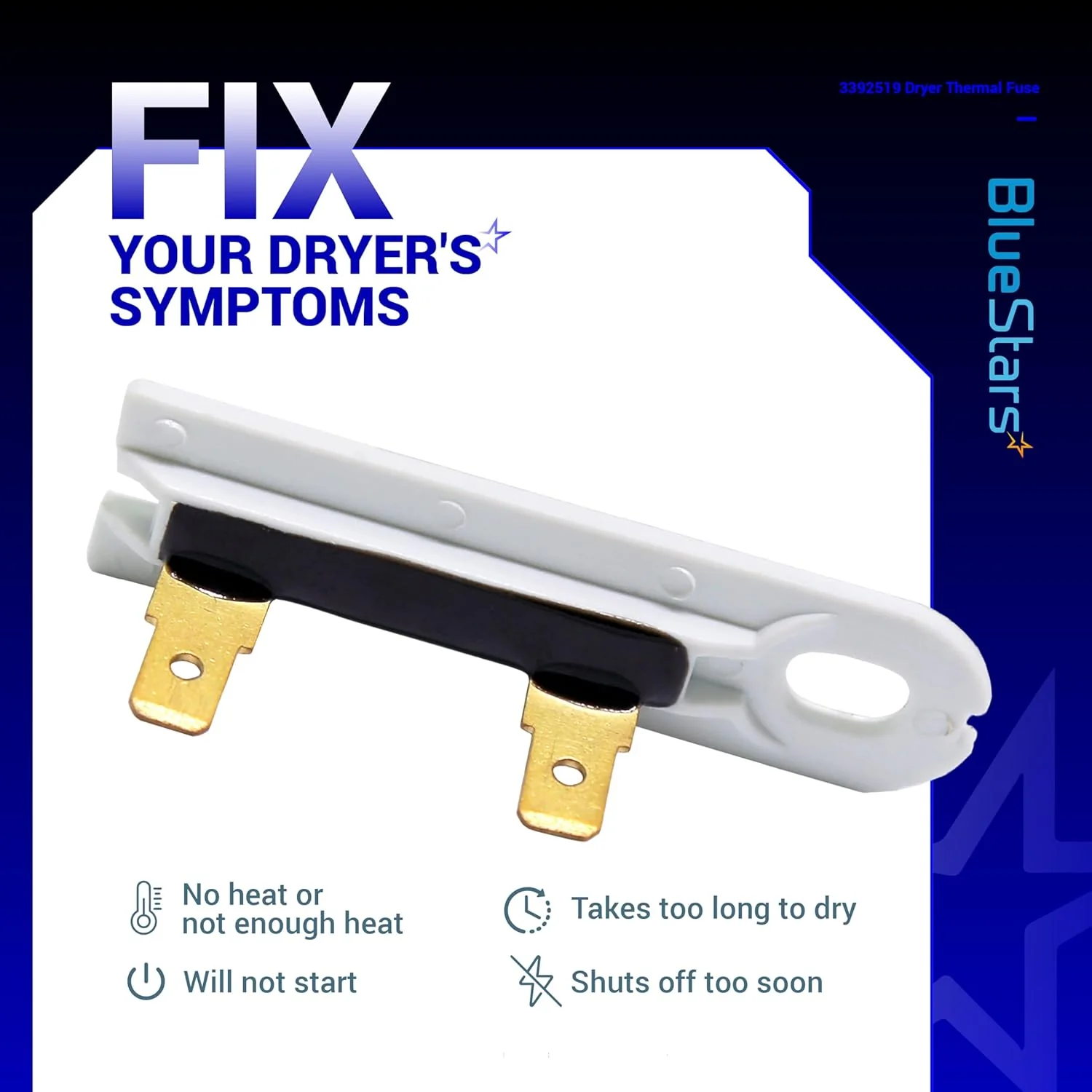

When to Replace

• Dryer will not start.
• Dryer tumbles but does not produce heat.
• The existing fuse fails a continuity test with a multimeter.

Installation Tips

• Disconnect the dryer from its power supply before servicing.
• A blown fuse is often a symptom of restricted airflow. Thoroughly inspect and clean the dryer's venting from the lint trap to the exterior vent cap before installing a new fuse.
• Confirm the old fuse is faulty by testing for continuity. A reading of infinity or OL (Open Line) indicates a blown fuse.
• Typically located on the blower wheel housing or the heating element housing.
