279816 Dryer Thermal Cut-off Kit for Whirlpool Kenmore Maytag Amana Dryers

279816 Dryer Thermal Kit Compatible with Whirlpool Kenmore Maytag Amana Dryers

Key Features

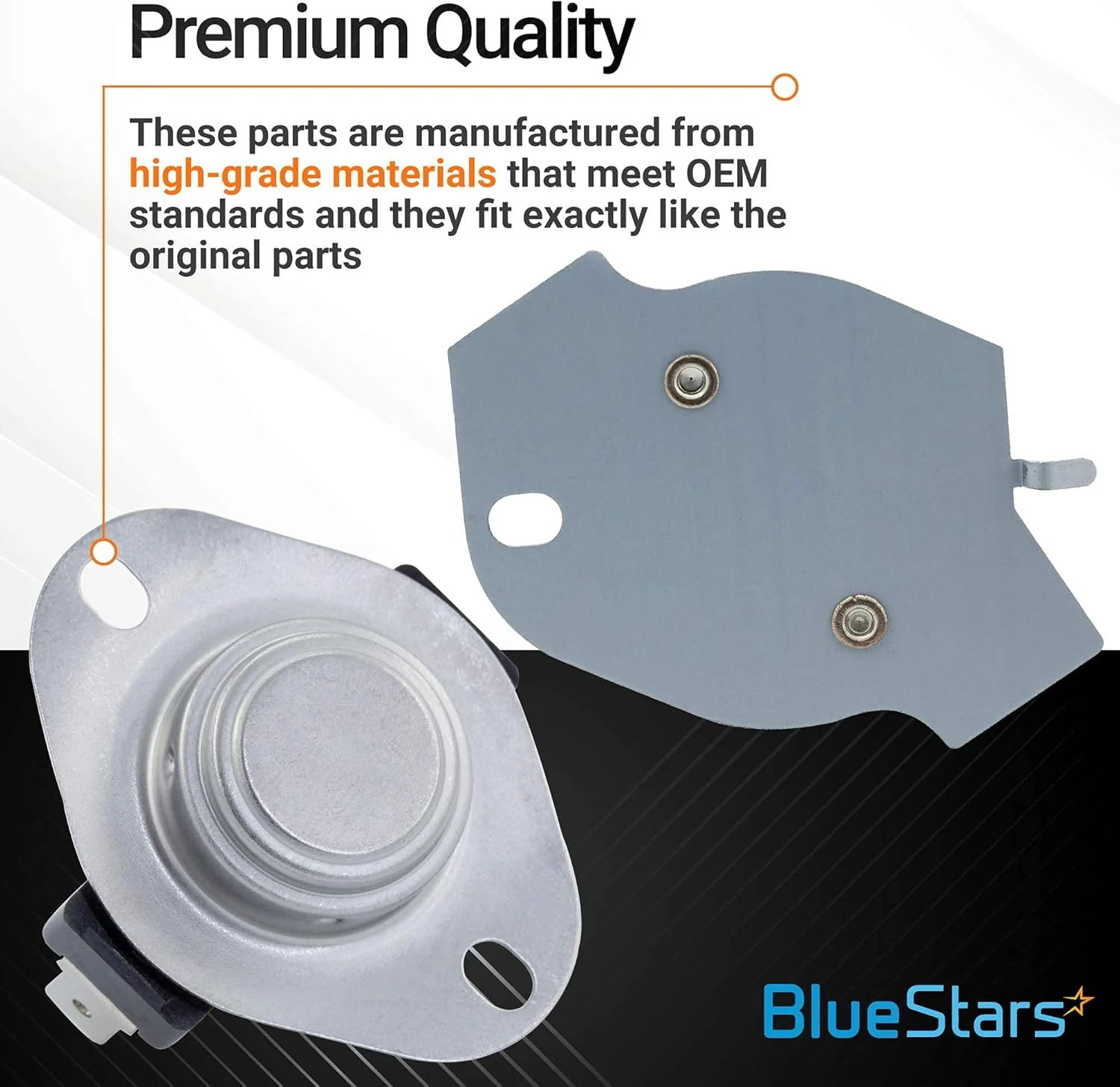

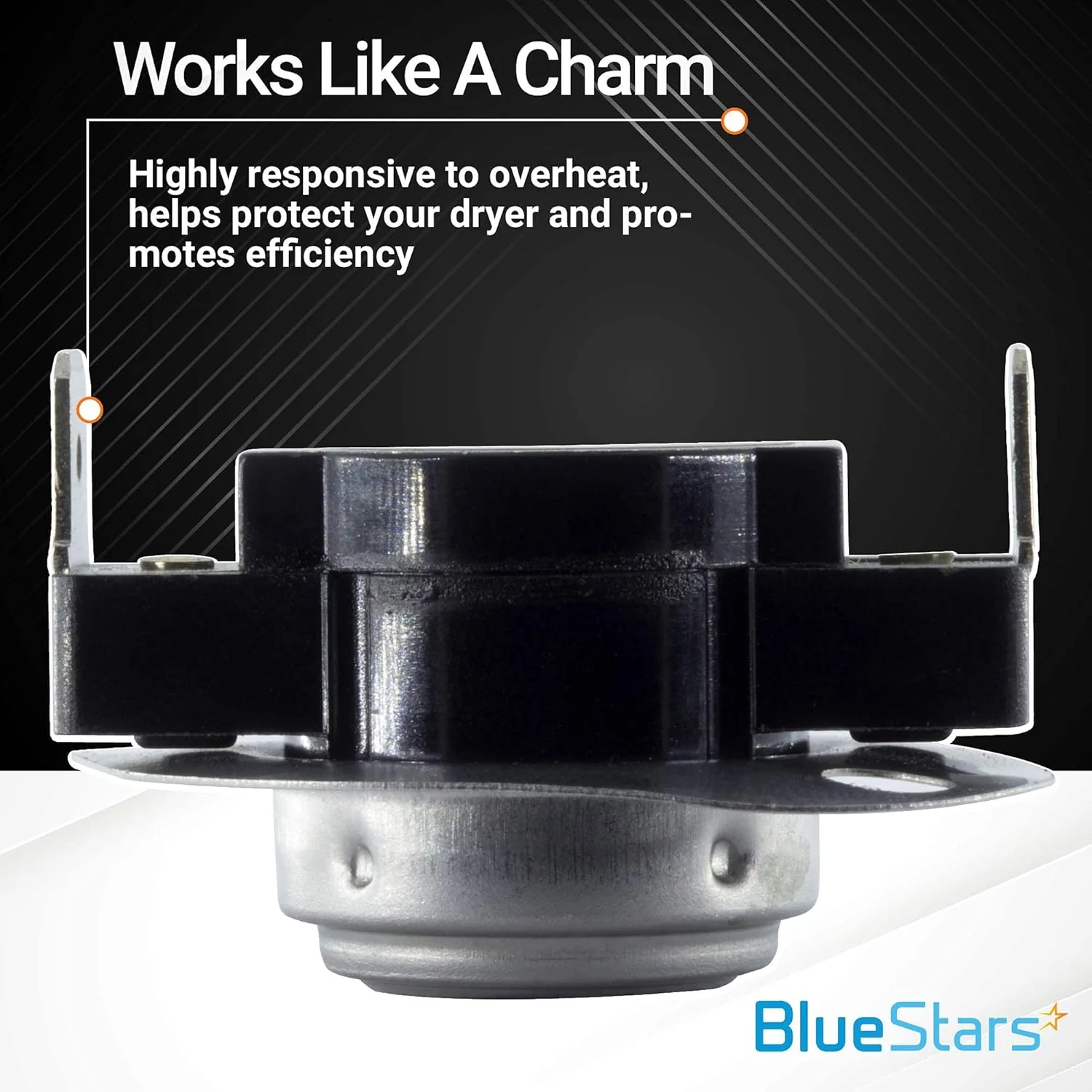

• Kit Includes: 1× Thermal cut-off fuse 3977393 (309°F) + 1× High-limit thermostat 3390291 (L250-80F) + 2× Screws + Wiring set (Jumper wire + Terminals).
• The thermal fuse is a safety component that shuts off the heating element when the dryer overheats.
• The high-limit thermostat monitors and regulates the temperature inside the dryer drum.
• Kit contains all necessary components for a standard thermal cut-off replacement.

Replaces / Cross-Reference Part Numbers

• AP3094244
• PS334299
• AH334299
• EA334299
• EAP334299
• 279816VP
• 3399848
• 3977393
• 2651
• PD00002348
• ER279816
• SET194

Compatibility & Fitment

• Designed for 29-inch wide dryers manufactured in or after 1965.
• Fits models from brands including Whirlpool, Kenmore, Maytag, Amana, Roper, KitchenAid, Estate, Inglis, Crosley, Admiral, Magic Chef, Jenn-Air, and Norge.

When to Replace

• Dryer is running but not producing heat.
• Dryer overheats or shuts off mid-cycle.
• Dryer will not start.

Installation Tips

• Disconnect the dryer from its power source before beginning installation.
• The thermal fuse is a one-time use safety device. If it has failed, inspect and clean the dryer's venting system for blockages to prevent recurrence.
• The high-limit thermostat is typically located on the heater box.
