6501KW2002A Washer Rotor Position Sensor Assembly for LG Hall Sensor - Fits LG Kenmore Washers

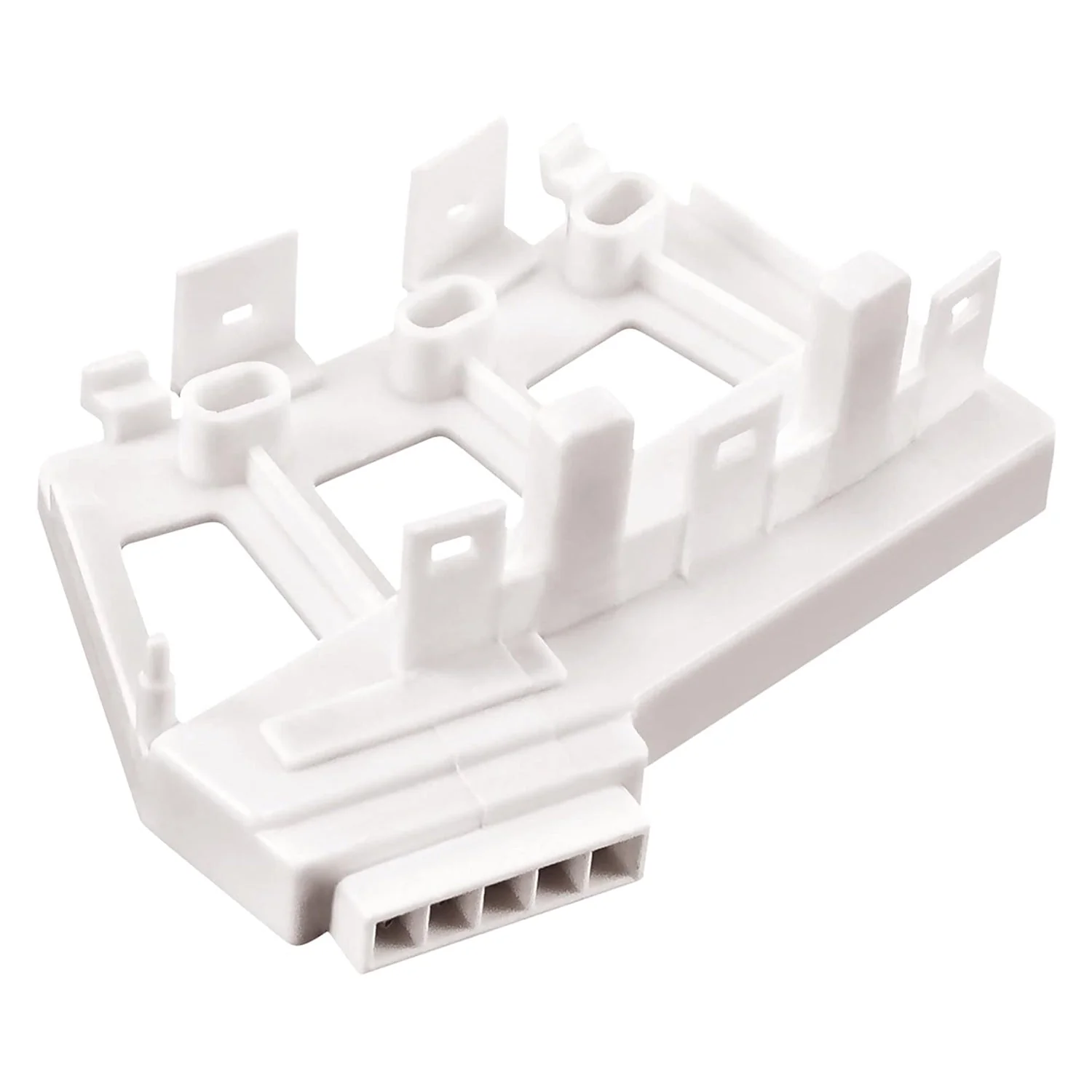

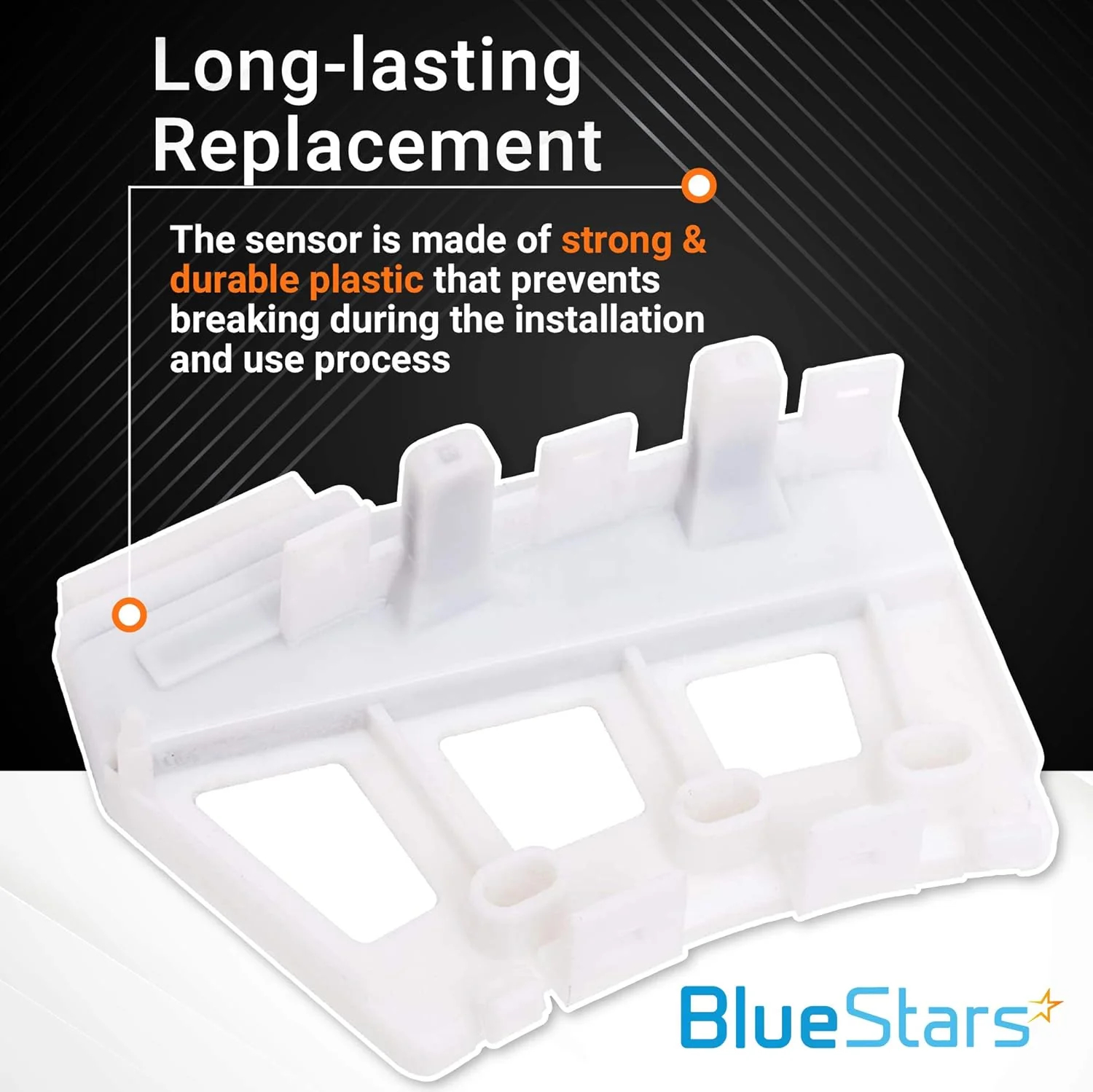

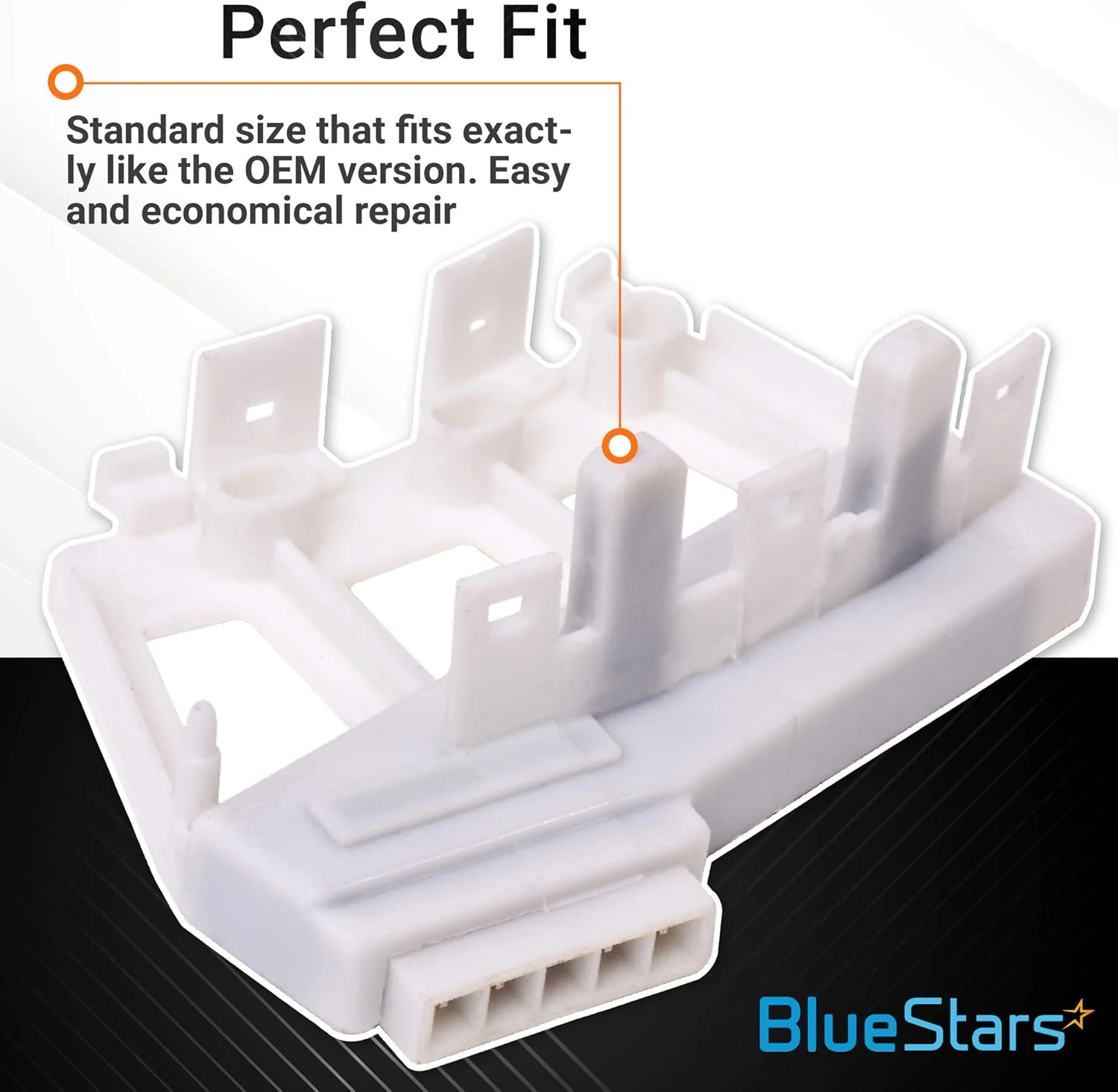

6501KW2002A Washer Rotor Position Sensor

Key Features

• Monitors the direction and speed of the motor's rotor
• Communicates rotor position data to the main electronic control board
• Enables the appliance to sense load size and adjust operation
• Also known as an RPS or hall sensor

Replaces / Cross-Reference Part Numbers

• AP4440680
• PS3529186
• 6501KW2002B
• 1268238
• AH3529186
• EA3529186
• EAP3529186
• 4962510
• AP7015078
• PS16556422

Compatibility & Fitment

• Fits select LG and Kenmore washing machine models
• Compatible with certain top-load and front-load configurations

When to Replace

• Washer displays an LE error code
• The drum will not spin or agitate
• The drum moves slightly then stops
• Washer operates erratically or makes unusual noises during the spin cycle

Installation Tips

• Disconnect the appliance from power and water sources before beginning installation
• The sensor is located on the motor stator assembly, typically accessed from the rear of the machine
• Requires removal of the washer's rear panel, rotor bolt, rotor, and stator to access the sensor
• Ensure the new sensor is securely clipped into place on the stator before reassembly
