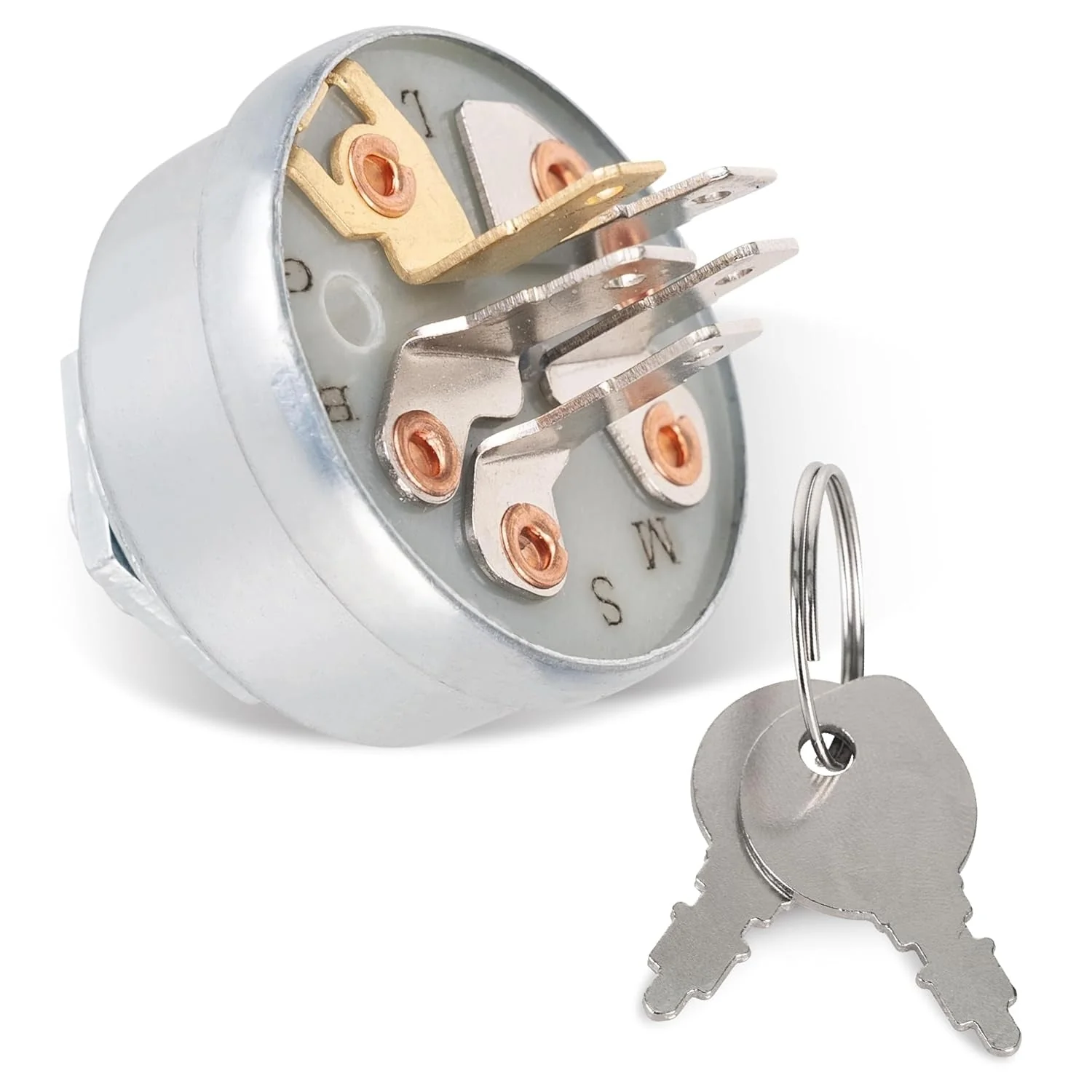

925-0267 STD365402 Ignition Switch (5 Terminal 3 Position) - Fits MTD Craftsman John Deere Toro - Replaces 24688 24695

925-0267 / STD365402 Ignition Switch

Key Features

• Function: 3-position ignition switch (Off, Run, Start)
• Terminals: 5 spade-style electrical terminals
• Ignition Type: Magneto

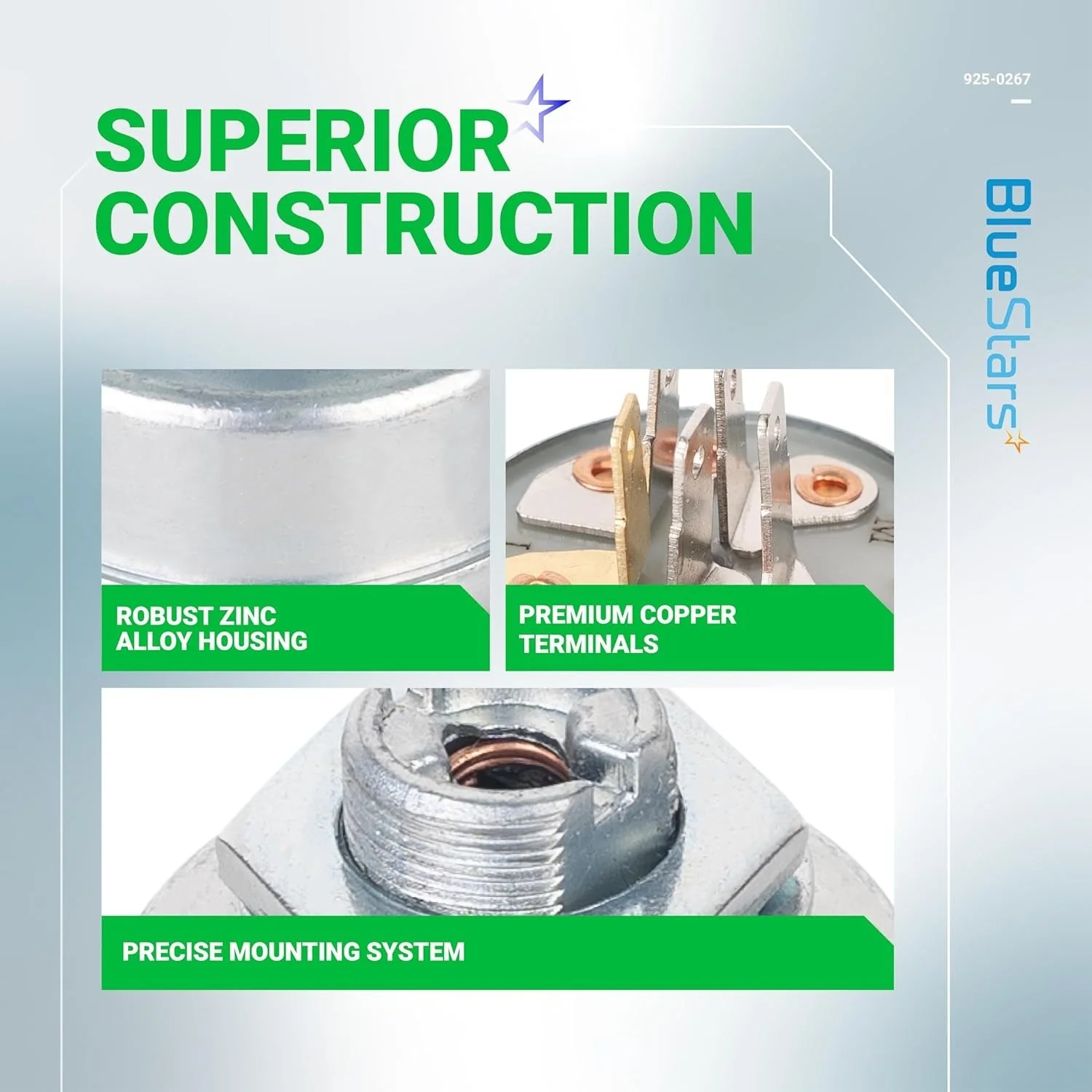

• Construction: Zinc alloy switch body with copper terminals
• Includes: Ignition switch and two matching keys

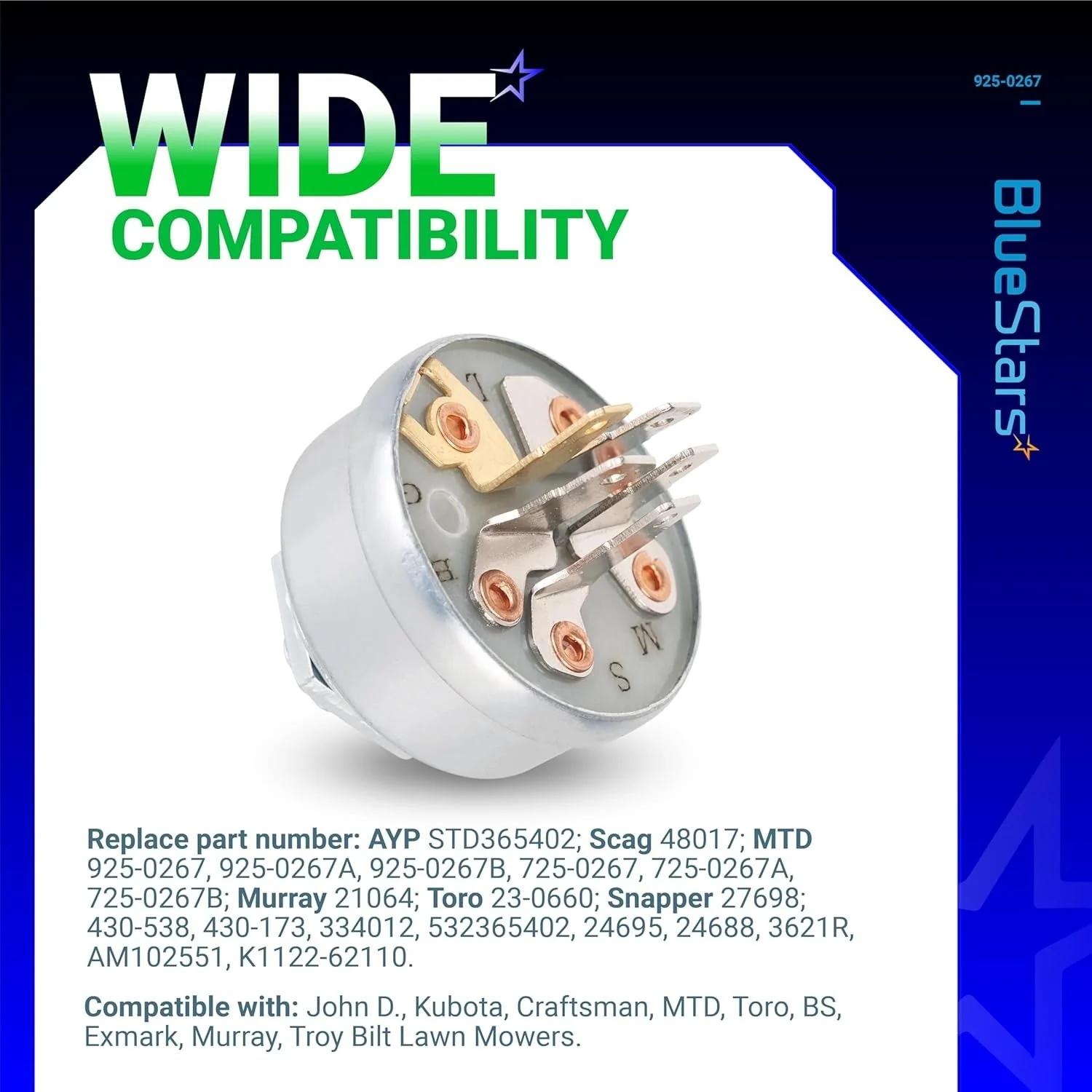

Replaces / Cross-Reference Part Numbers

• 925-0267
• 925-0267B
• 925-0267A
• 725-0267
• 725-0267A
• 725-3004
• STD365402
• 1908112
• 21064

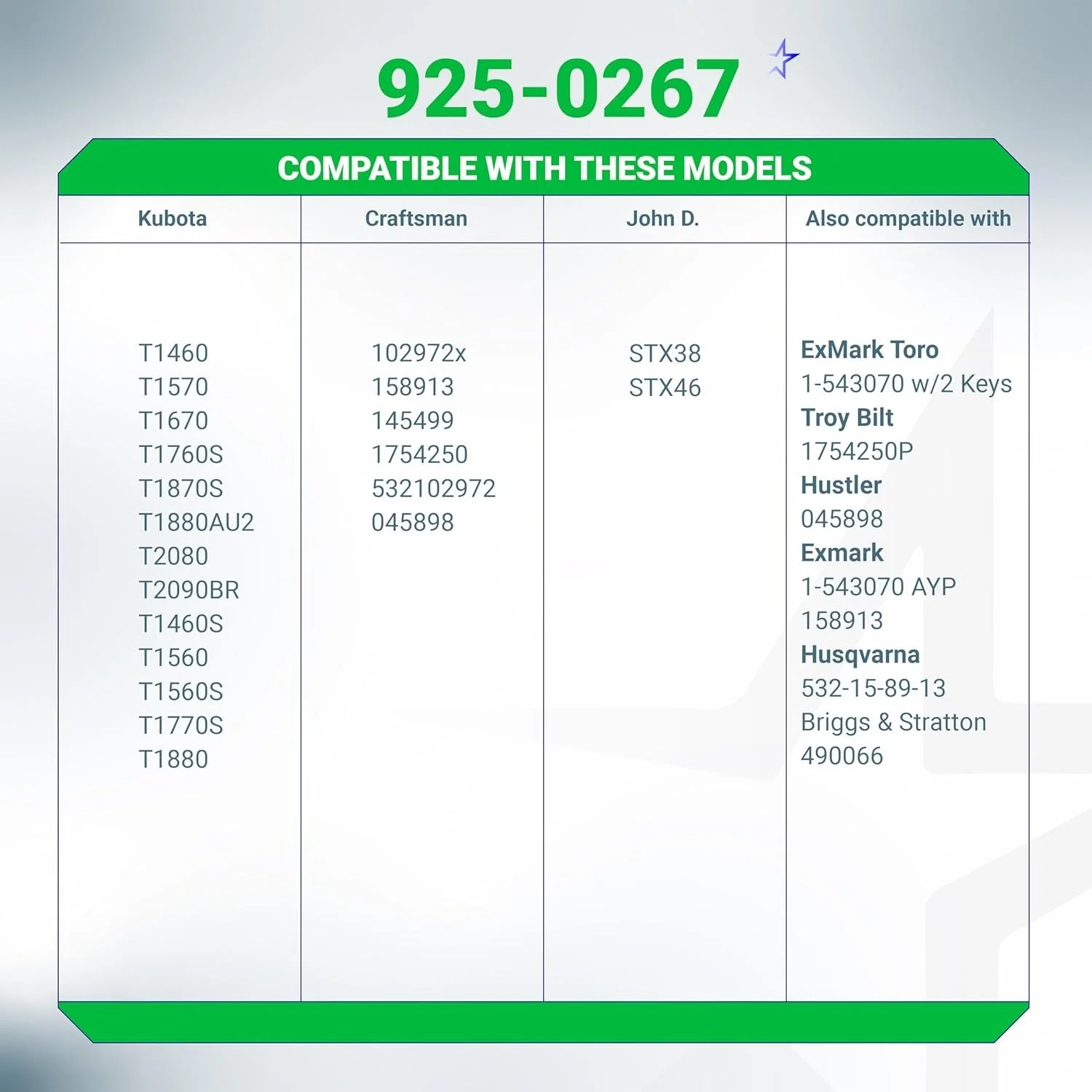

Compatibility & Fitment

Fits various riding lawn mowers, lawn tractors, and garden tractors from brands including:

• Craftsman (e.g., GT6000)
• Cub Cadet
• Dixon (e.g., H1011)
• Husqvarna
• John Deere (e.g., 320, RX75, RX95)
• MTD
• Murray
• Scag
• Toro
• Troy-Bilt

When to Replace

• The engine does not crank or fails to start.
• The key is stuck, broken, or difficult to turn in the ignition.
• Power to the mower's electrical system is intermittent.
• The switch only functions in certain key positions.
• Electrical accessories do not receive power when the key is on.

Installation Tips

• Disconnect the negative battery terminal before beginning work.
• Photograph or label the wiring arrangement before removing the old switch.
• Ensure the wire terminals are clean and make secure contact with the new switch.
• Mount the new switch firmly to the dash panel.
• After installation, reconnect the battery and test all switch functions before operating the equipment.
