954-0349 Deck Belt | Fits 46" Deck Cub Cadet 1180 1212 1800, Troy-Bilt Super Bronco | Aramid Cord | 79"

954-0349 Deck Belt | 79"

Key Features

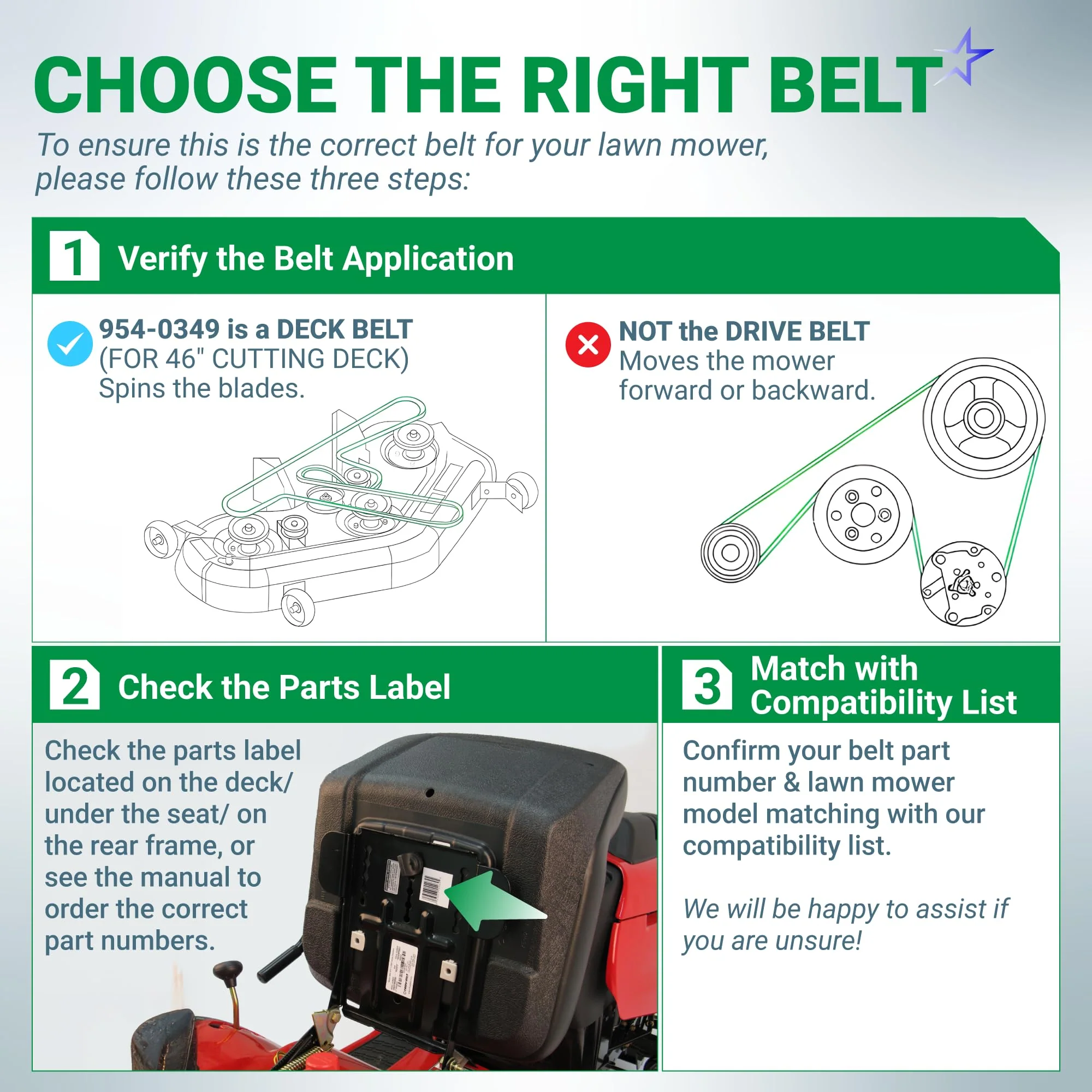

• Application: Mower Deck Drive Belt
• Type: 4L
• Width: 1/2 inch (12.7mm)
• Length: 79 inches (2006.6mm)

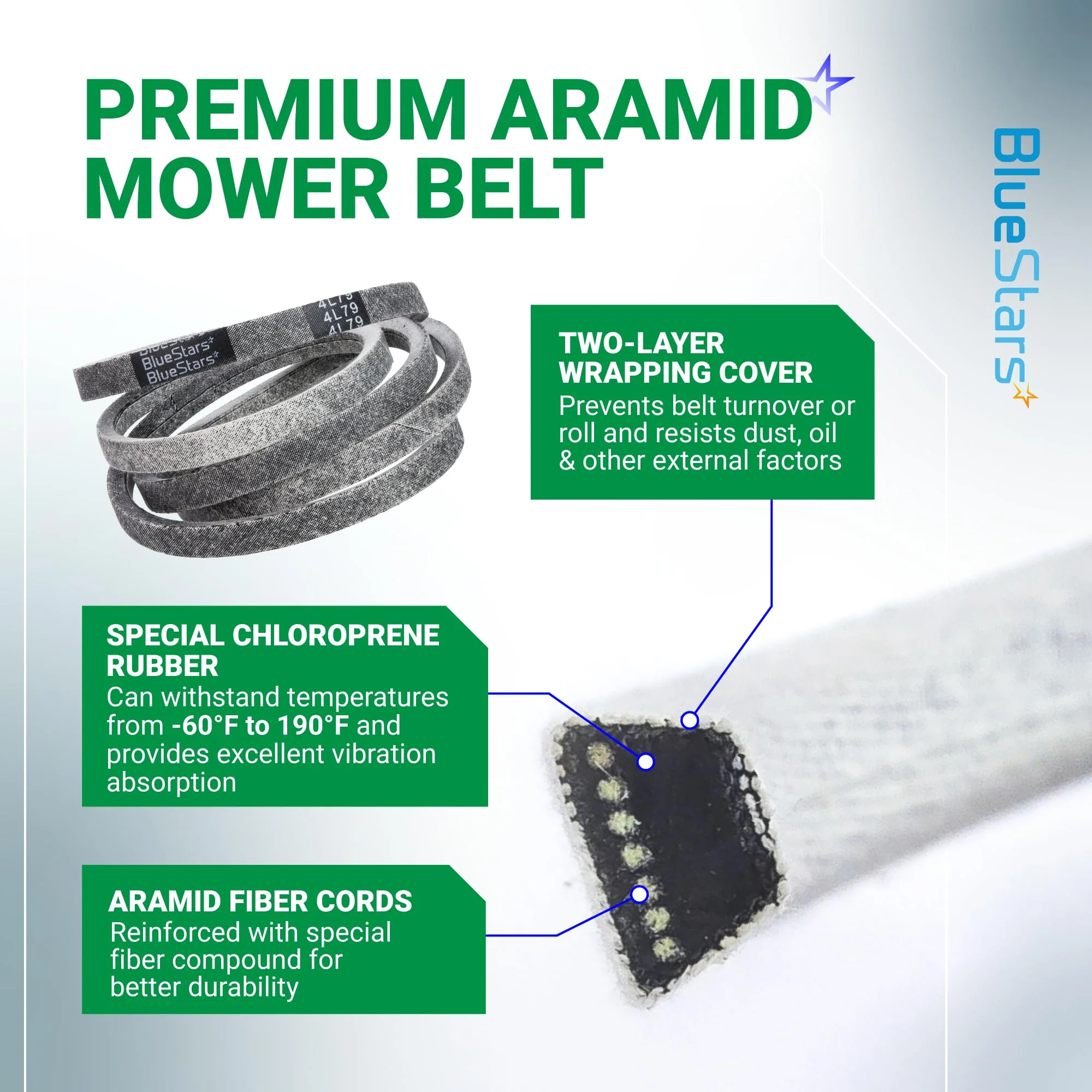

• Material: Aramid cord construction for enhanced durability and wear resistance

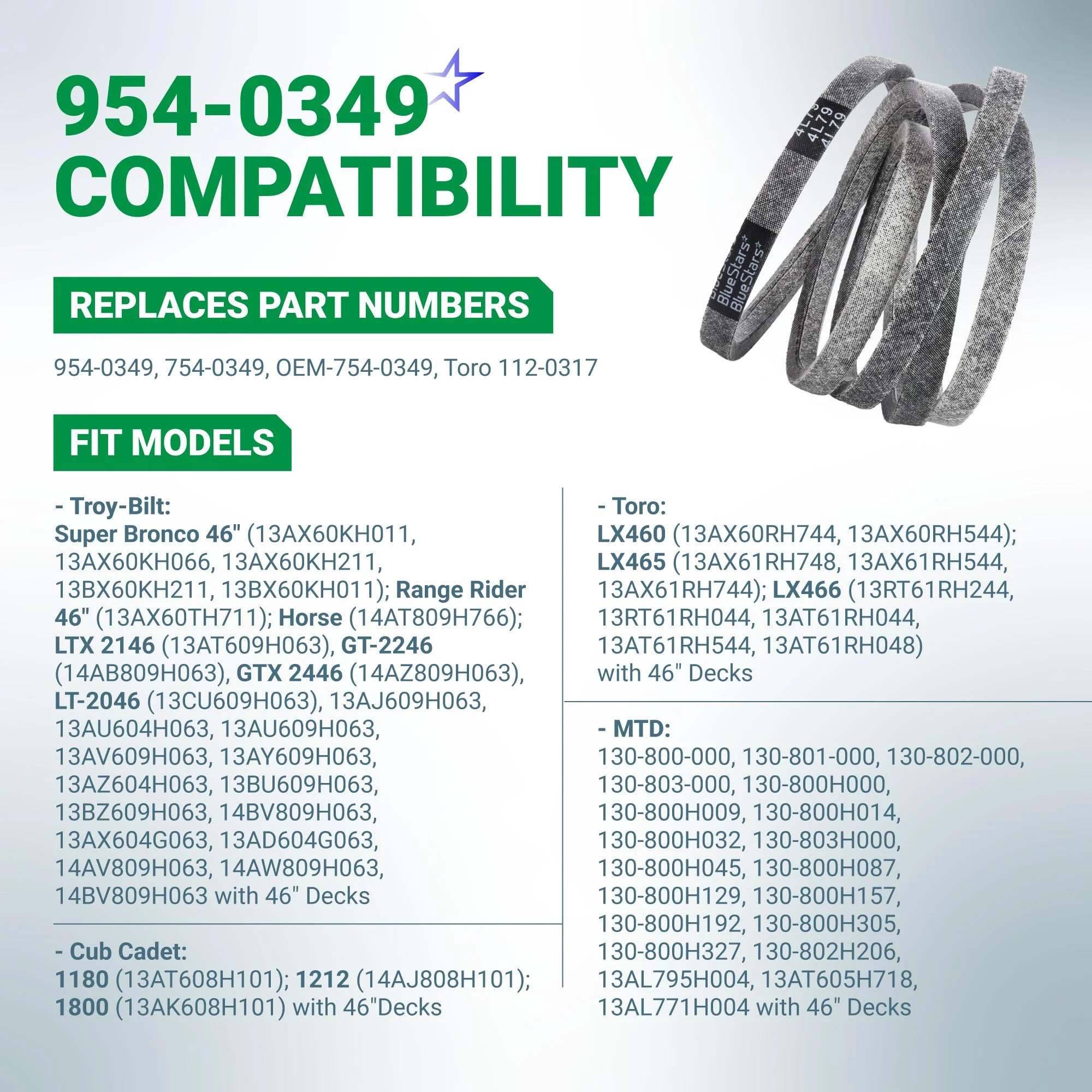

Replaces / Cross-Reference Part Numbers

• 954-0349
• 754-0349
• 112-0317
• SPM201670500
• 121330
• 265-536
• 75-021
• 175-021
• 6843
• 336107B


Compatibility & Fitment

• Fits select riding mowers and lawn tractors with 46-inch cutting decks.
• Cub Cadet Models:
  • 1180
  • 1212
  • 1800
• MTD Models:
  • Various models using 46-inch decks
• Toro Models:
  • LX460
• Troy-Bilt Models:
  • Super Bronco (Example: 14AB809H063)

When to Replace

• Visible signs of wear such as cracking, fraying, glazing, or exposed cords.
• Audible squealing or slipping during mower deck engagement.
• Noticeable decrease in blade speed or cutting performance.
• Belt has stretched and can no longer maintain proper tension.

Installation Tips

• Before installation, disconnect the spark plug wire for safety.
• Consult the mower's operator manual for the specific belt routing diagram.
• Inspect all pulleys and tensioner springs for damage or wear and replace if necessary.
• Ensure the new belt is properly seated in all pulley grooves.
• Verify correct tension after installation per manufacturer specifications.
