GX20006, UC30568 Drive Belt | Fits John Deere 105 115 125 135 145 D110 D120 D125 & More | Aramid Cord | 88.9"

[Grip120] GX20006, UC30568 Drive Belt | 88.9"

Key Features

• Type: Transmission Drive Belt
• Dimensions (W x L): 0.50 in. x 88.9 in. (1/2 in. x 88 9/10 in.)
• Internal Construction: Reinforced with aramid cord for high tensile strength and durability.
• Material Composition: Engineered for flexibility and resistance to heat and oil.

Replaces / Cross-Reference Part Numbers

• UC30568
• 75-964
• 75-979
• 265-024
• 336388B
• 810-CBL2348T
• 10434
• 7-078099
• B1JD93
• 008-959

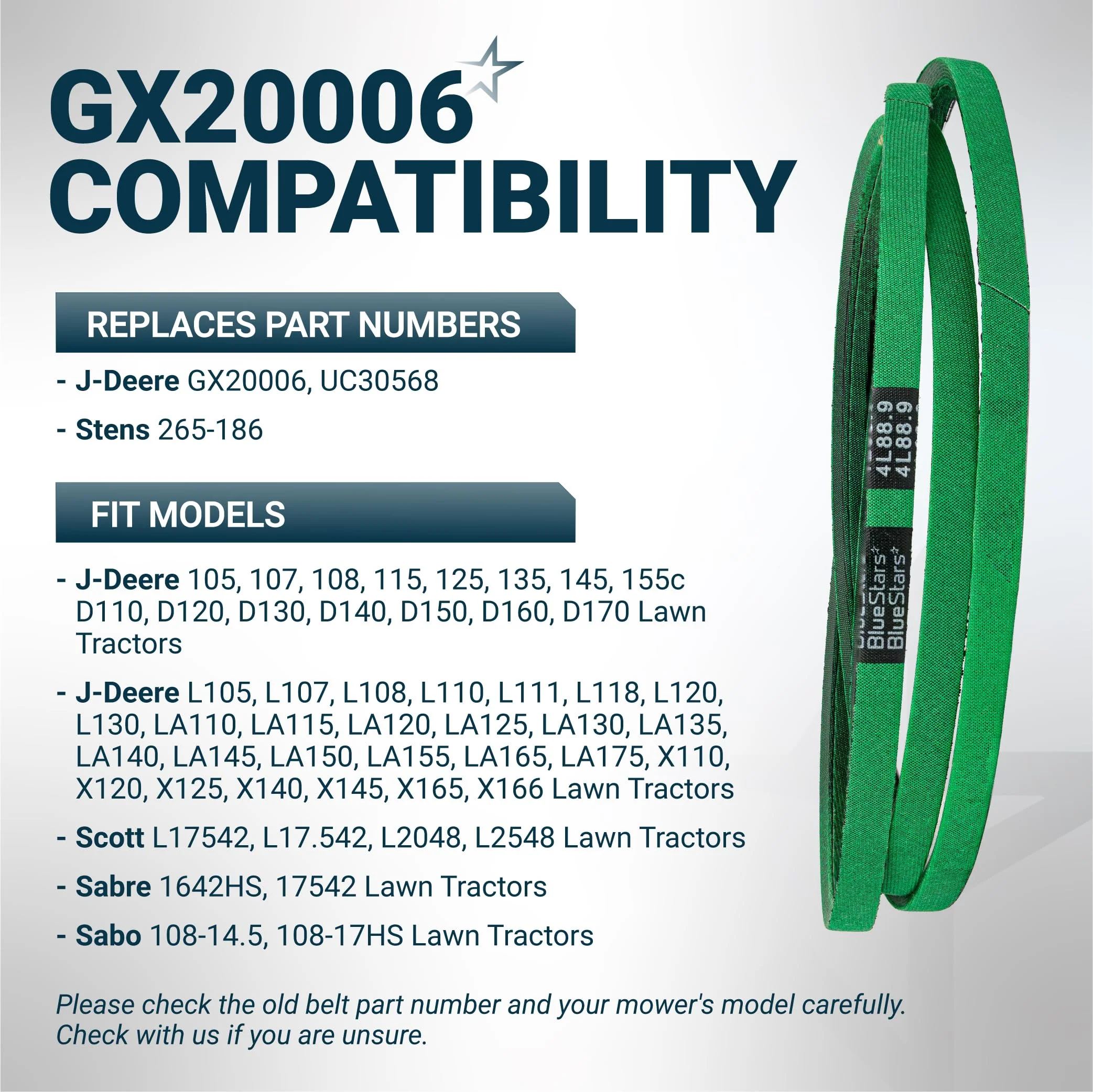

Compatibility & Fitment

• Fits John Deere Lawn Tractor Models:
• 100 Series: 105, 115, 125, 135, 145, 155c
• D Series: D110, D120, D125, D130, D140, D150, D155, D160, D170
• E Series: E110
• L Series: L105, L107, L108, L110, L111, L118, L120, L130
• LA Series: LA110, LA130

When to Replace

• Visible signs of wear such as cracking, glazing, fraying, or splitting.
• Slipping of the drive system, resulting in loss of power to the wheels.
• Audible squealing or chirping sounds during operation.
• As part of scheduled maintenance according to the owner's manual.

Installation Tips

• Disconnect the spark plug wire for safety before beginning work.
• Consult the mower's technical manual for the correct belt routing diagram.
• Inspect idler pulleys and tensioner spring for wear and replace if necessary.
• Ensure the new belt is properly seated in all pulley grooves before starting the engine.
