W10208415 WPW10208415 Dryer Washer Door Hinge for Whirlpool Maytag Kenmore Crosley Front Loader Dryer & Washer

W10208415 / WPW10208415 Dryer Washer Door Hinge

Key Features

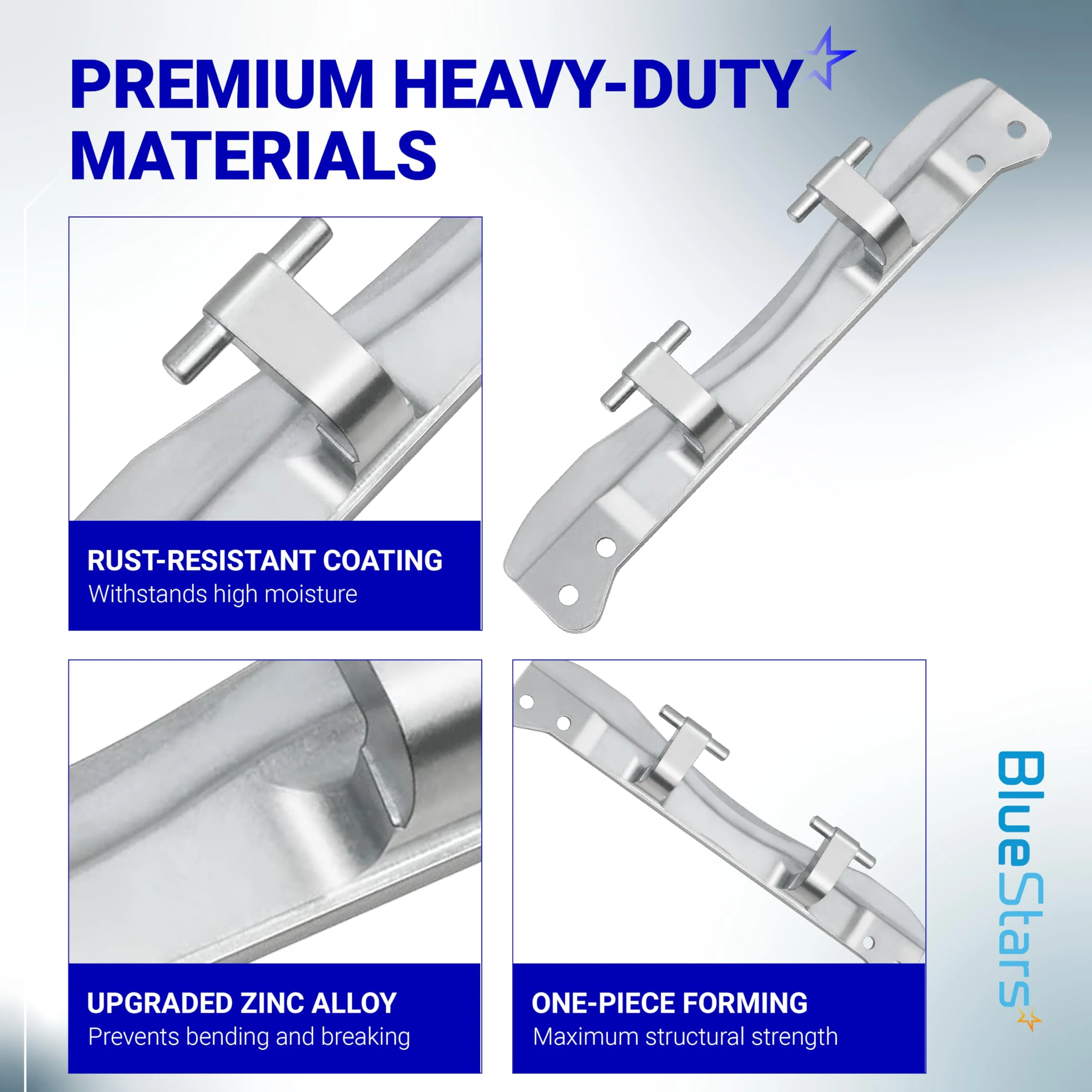

• Heavy-Duty Reinforced Steel: Constructed from high-strength metal alloy to support the significant weight of front-load washer and dryer doors, preventing sagging over time.
• Precision Pivot Points: Engineered for smooth, silent operation, allowing the door to swing open and closed without binding or squeaking.
• Corrosion-Resistant Coating: Features a specialized finish to protect the hinge from the high humidity and moisture common in laundry environments, preventing rust and seized joints.
• Dual-Appliance Compatibility: Designed as a versatile "Exact Fit" component that works equally well on both front-load washing machines and matching dryers.

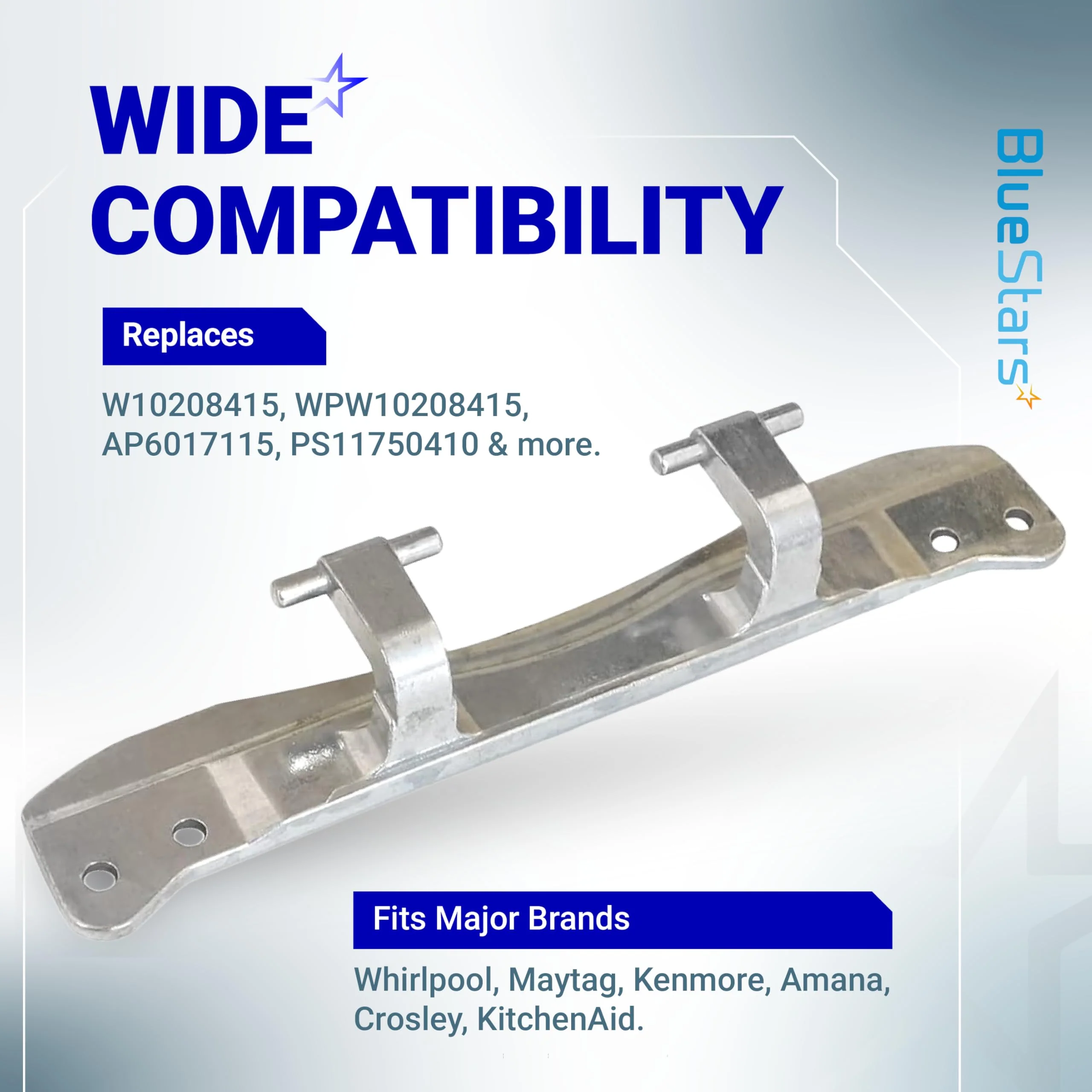

Replaces / Cross-Reference Part Numbers

• W10208415
• WPW10208415
• 1872427
• AP6017115
• PS11750410
• EAP11750410


Compatibility & Fitment

This hinge is a standard replacement for many 27-inch and 29-inch front-load laundry units manufactured by Whirlpool. Key compatible brands include:

• Whirlpool: Fits Duet, Duet Sport, and WFW series models (e.g., WFW94HEXW, WED9200SQ).
• Maytag: Compatible with many Maxima and Epic Z series (e.g., MHW6000XW, MEDE200XW).
• Kenmore / Sears: Fits various Elite and 110-series models (e.g., 110.47511701).
• Crosley & Amana: Compatible with select front-load units utilizing the 10208415 hinge configuration.

When to Replace

• Door Sagging: The door sits lower than the latch, requiring you to lift it upward to get it to close and lock.
• Visible Metal Fatigue: The hinge plate is bent, or the pivot pins have developed significant "play," making the door feel wobbly.
• Binding or Resistance: The door is difficult to swing open or closed, or it makes a loud grinding or snapping metal sound during operation.
• Door Won't Latch: Because the hinge is bent, the door strike no longer aligns with the door switch, preventing the machine from starting.

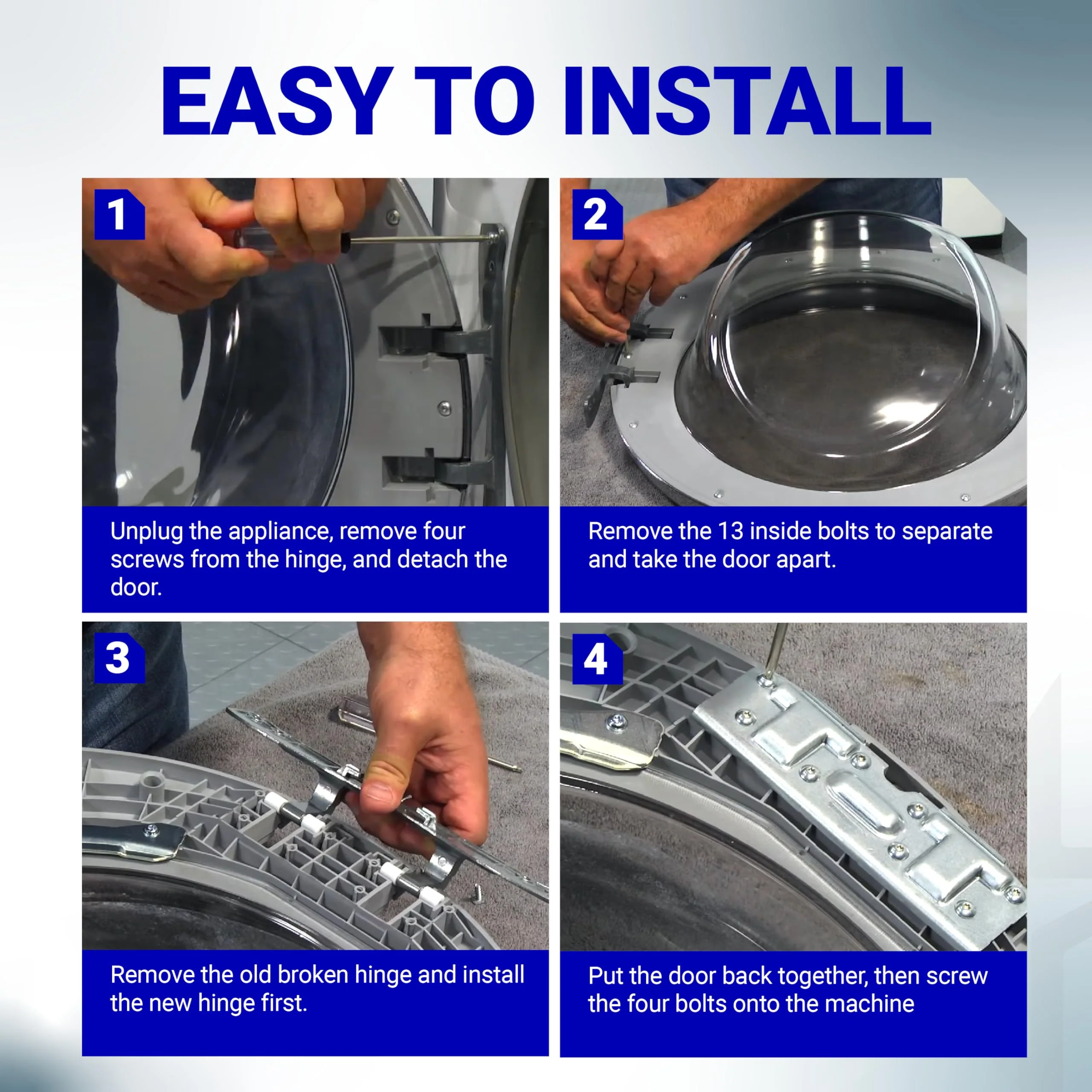

Installation Tips

• Support the Weight: Front-load doors are surprisingly heavy. Have a second person hold the door or place a sturdy box underneath it to support the weight while you unscrew the old hinge.
• Accessing the Screws: You typically need to remove the front decorative trim or "bellows" clamp to access the screws that secure the hinge to the machine's front panel.
• Screw Management: Keep the door-side screws and the cabinet-side screws separate, as they are often different lengths or thread types.
• Alignment: Loosely start all screws before tightening any of them fully. This allows you to adjust the door's "squareness" to ensure the latch hits the center of the door switch.
• Safety Check: Once installed, ensure the door opens at least 90 to 120 degrees without hitting the machine's trim, and verify that the door lock engages smoothly on the first try.
