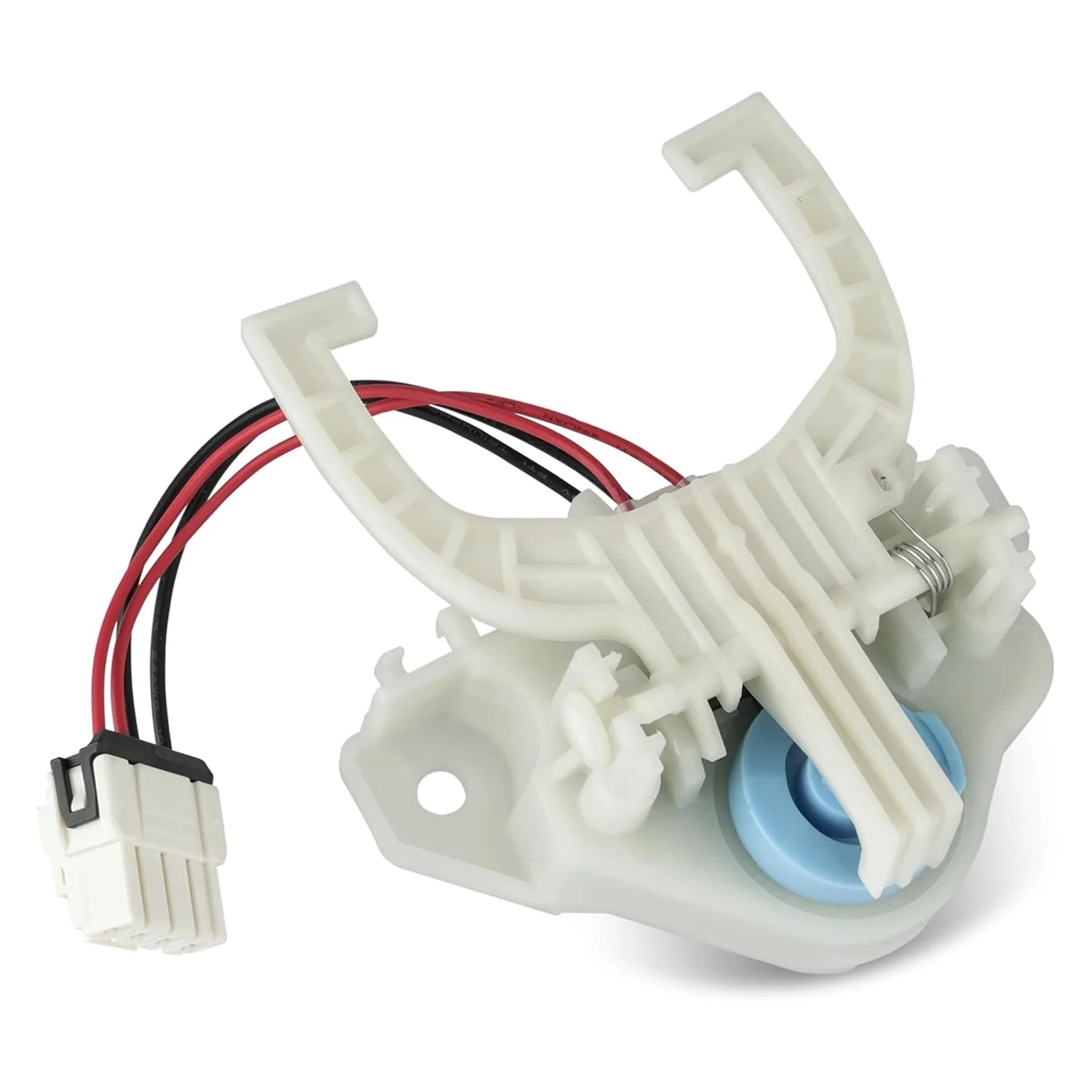

WH03X30517 Washer Shift Actuator for GE Hotpoint Washing Machines

WH03X30517 Washer Shift Actuator

Key Features

• Controls the washer's transmission, shifting between agitate and spin cycles
• Manages the movement of the inner tub and agitator
• Direct replacement for specified original equipment part numbers
• Designed for top-loading washing machine models

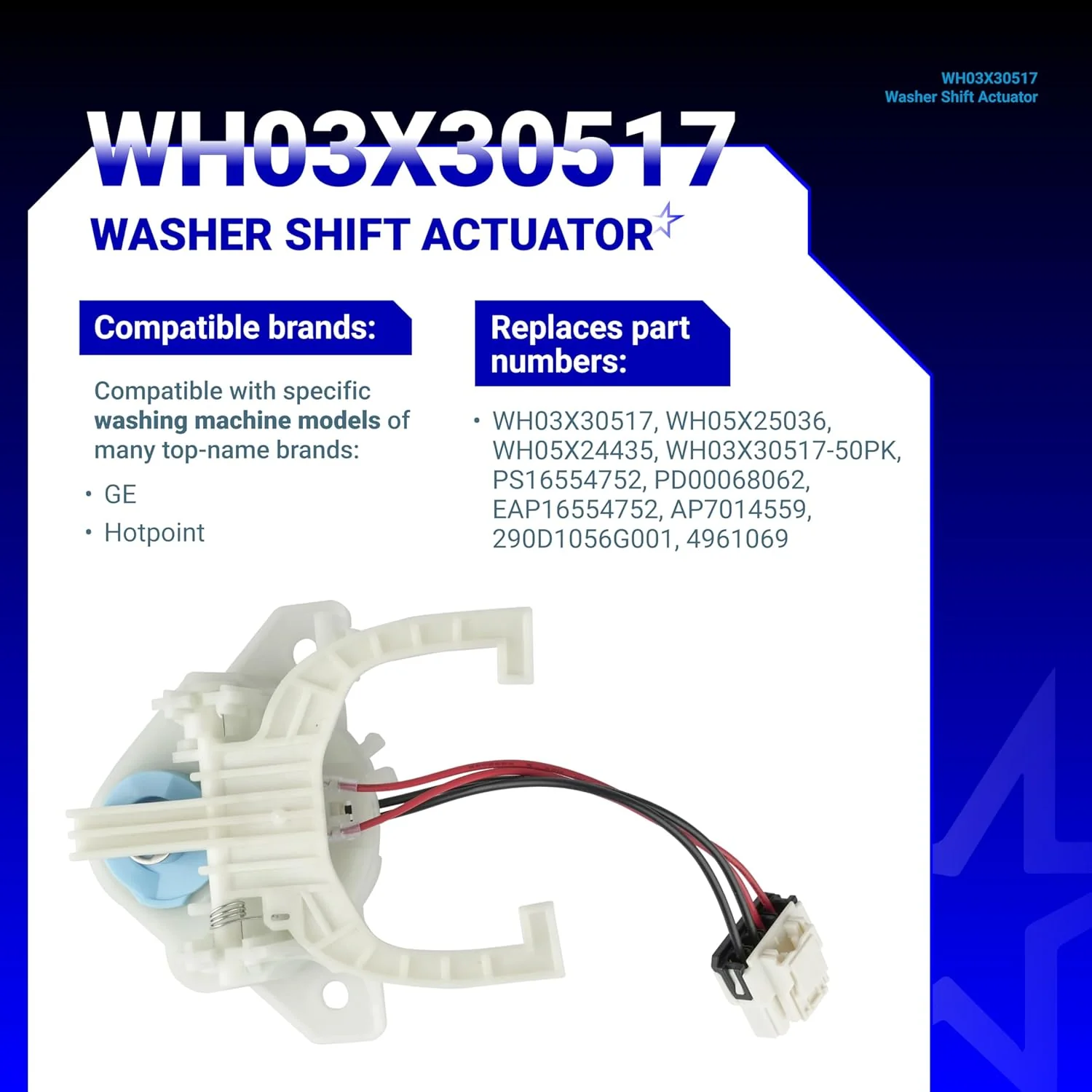

Replaces / Cross-Reference Part Numbers

• WH05X25036
• WH05X24435
• WH05X24185
• AP7014559

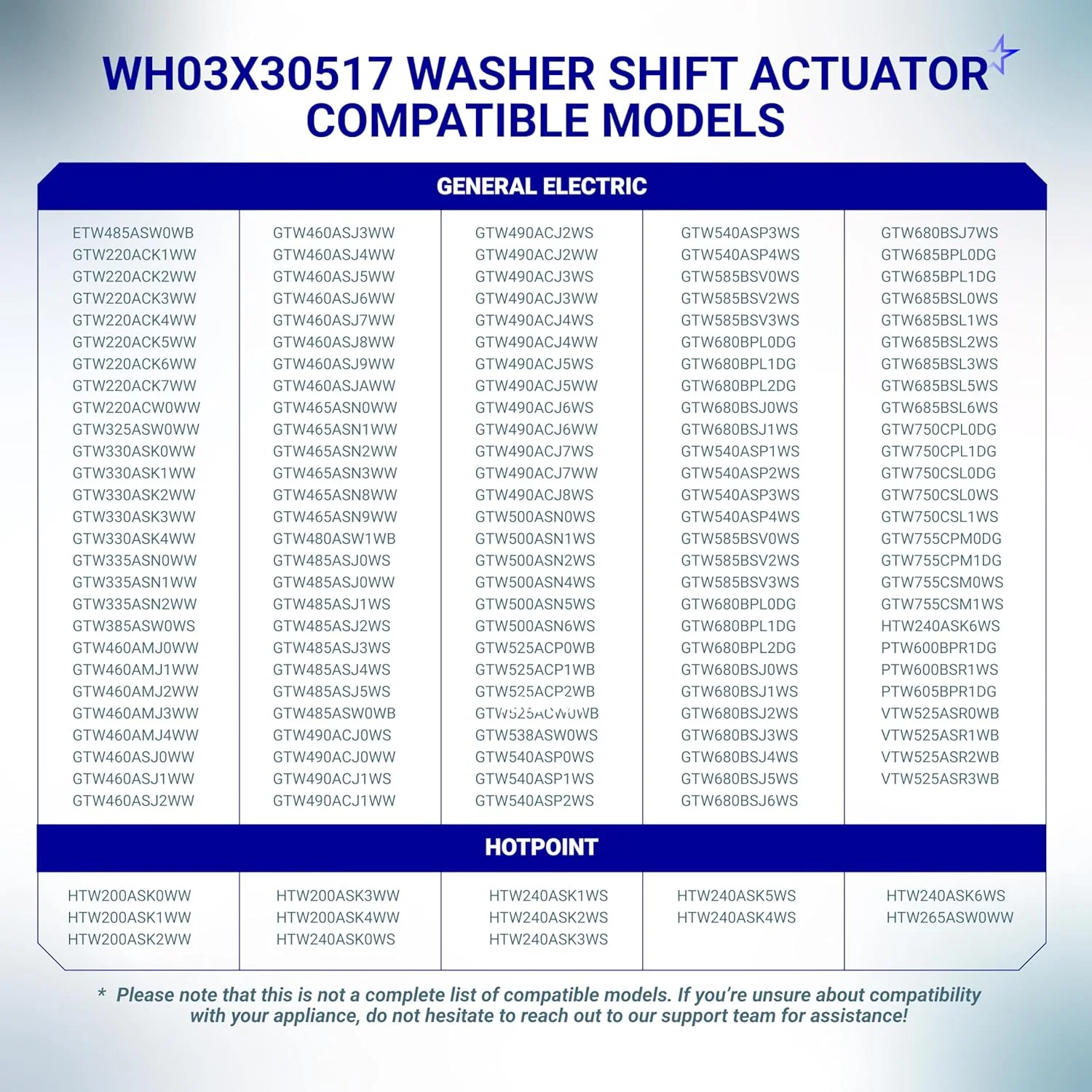

Compatibility & Fitment

• Fits specific GE top-loading washing machines
• Example compatible models include: GTW220ACK1WW, GTW220ACK2WW, GTW220ACK3WW, GTW220ACK4WW, GTW465ASN2WW
• Verify compatibility with your appliance's model number before ordering

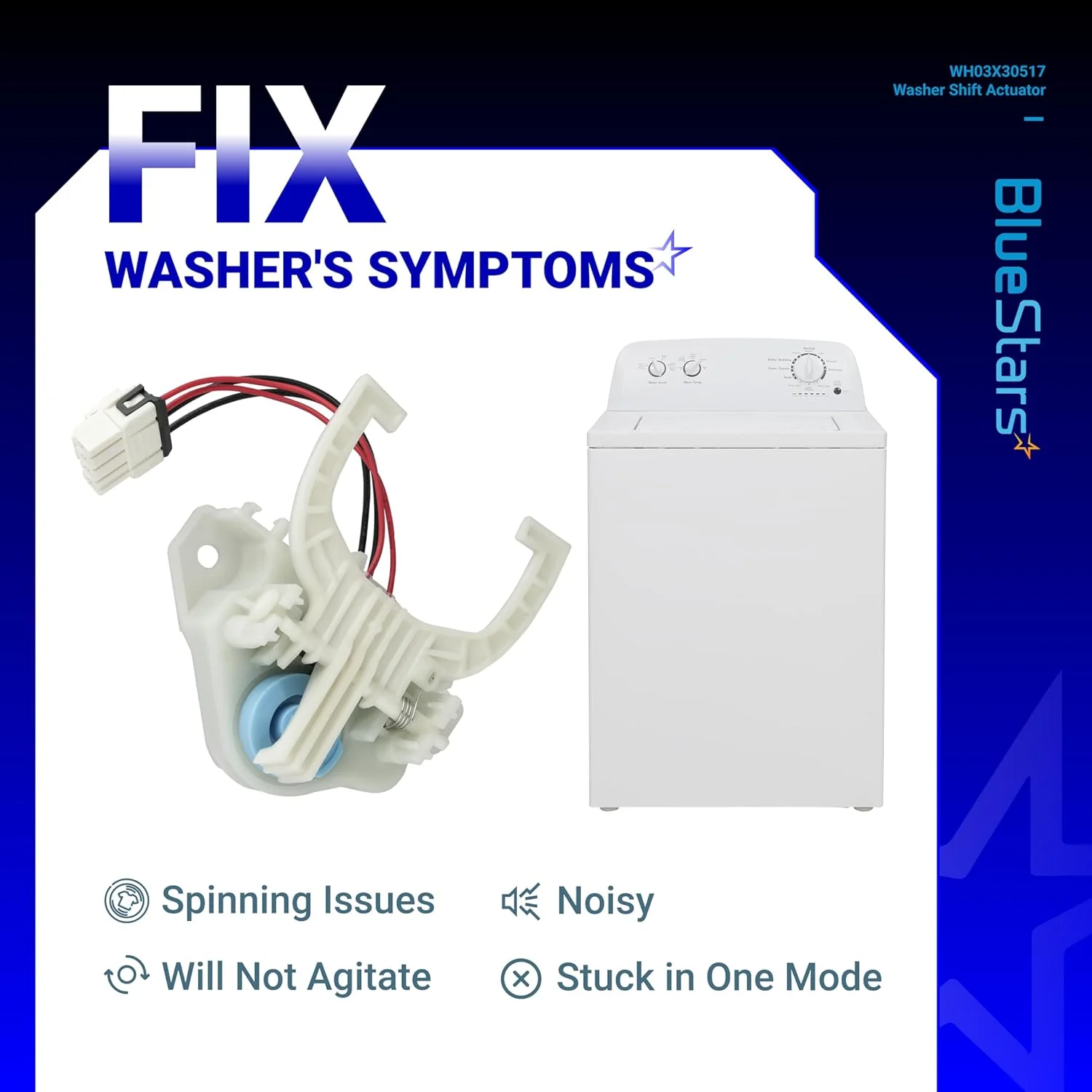

When to Replace

• Washer fails to agitate or spin
• Washer stops mid-cycle
• Loud or unusual noises during cycle transitions
• Appliance displays error codes related to the mode shifter or transmission

Installation Tips

• Disconnect the washer from power and water sources before beginning the repair
• Tilt the washer to access the component from underneath the machine
• The drive belt and pulley must be removed to access the shift actuator
• Secure the new actuator with the original mounting screws
