WH49X10042 Washer Agitator Coupler Kit Replacement - For GE Washing Machines

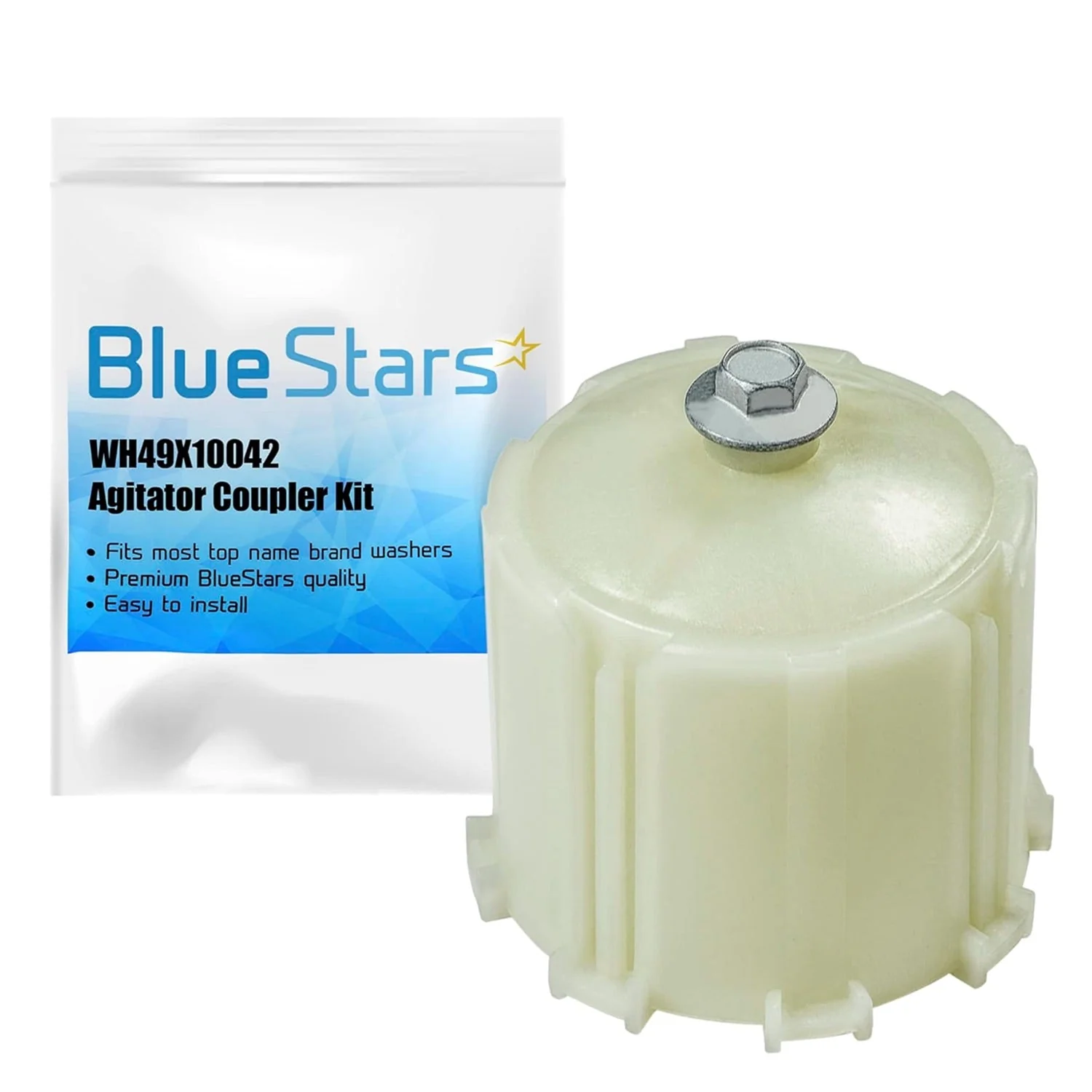

WH49X10042 Washer Agitator Coupler Kit

Key Features

• Directly connects the agitator to the washer's transmission shaft
• Restores agitation function for effective cleaning performance
• Kit includes all components required for replacement

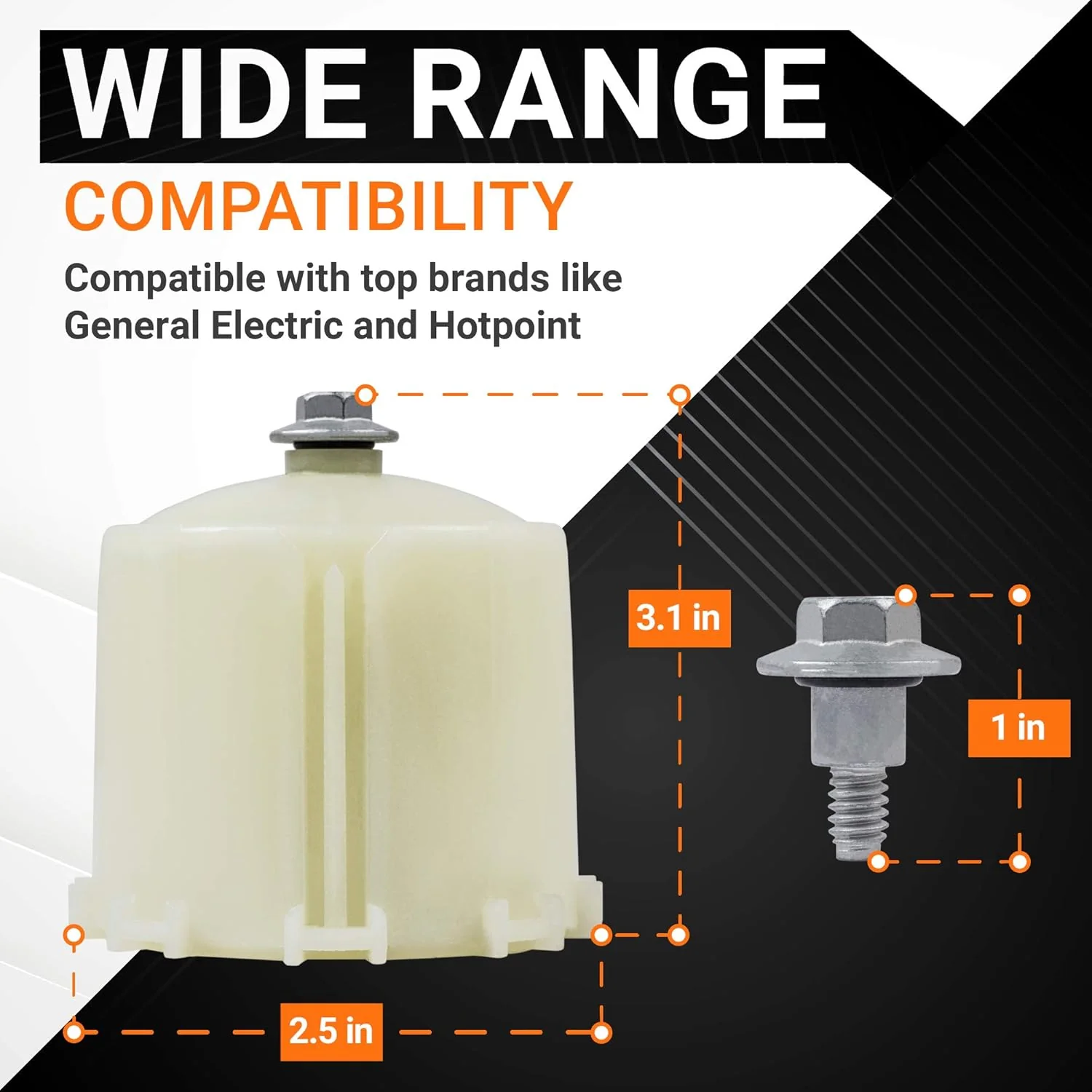

• Dimensions: 3-7/16 x 3-7/16 x 3-1/8 inches

Replaces / Cross-Reference Part Numbers

• AP3964635
• PS1517844
• WH43X10009
• 1195917
• 175D2846P001
• AH1517844
• EA1517844
• WH02X10037
• WH43X137
• EAP1517844

Compatibility & Fitment

• Designed for specific General Electric (GE) washing machine models.
• To ensure proper fit, verify the part number against your appliance's model number.

When to Replace

• The agitator does not move, moves weakly, or is noisy during the wash cycle.
• The top section of the agitator spins, but the bottom section does not engage.
• Clothes are not being cleaned properly due to a lack of agitation.
• Visible signs of wear, cracking, or damage on the existing coupler.

Installation Tips

• Always disconnect the washer from power and water supplies before service.
• Remove the agitator cap and bolt to access the coupler assembly.
• Ensure the new coupler is fully seated onto the transmission shaft before tightening the bolt.
• Confirm the splines on the shaft and inside the coupler are aligned correctly.
