285753A Direct Drive Motor Coupling Kit & 4 PCS 80040 Agitator Dogs Kit for Whirlpool Kenmore Washers

285753A Direct Drive Motor Coupling Kit & 4 Packs 80040 Washer Agitator Dogs Kit

Key Features

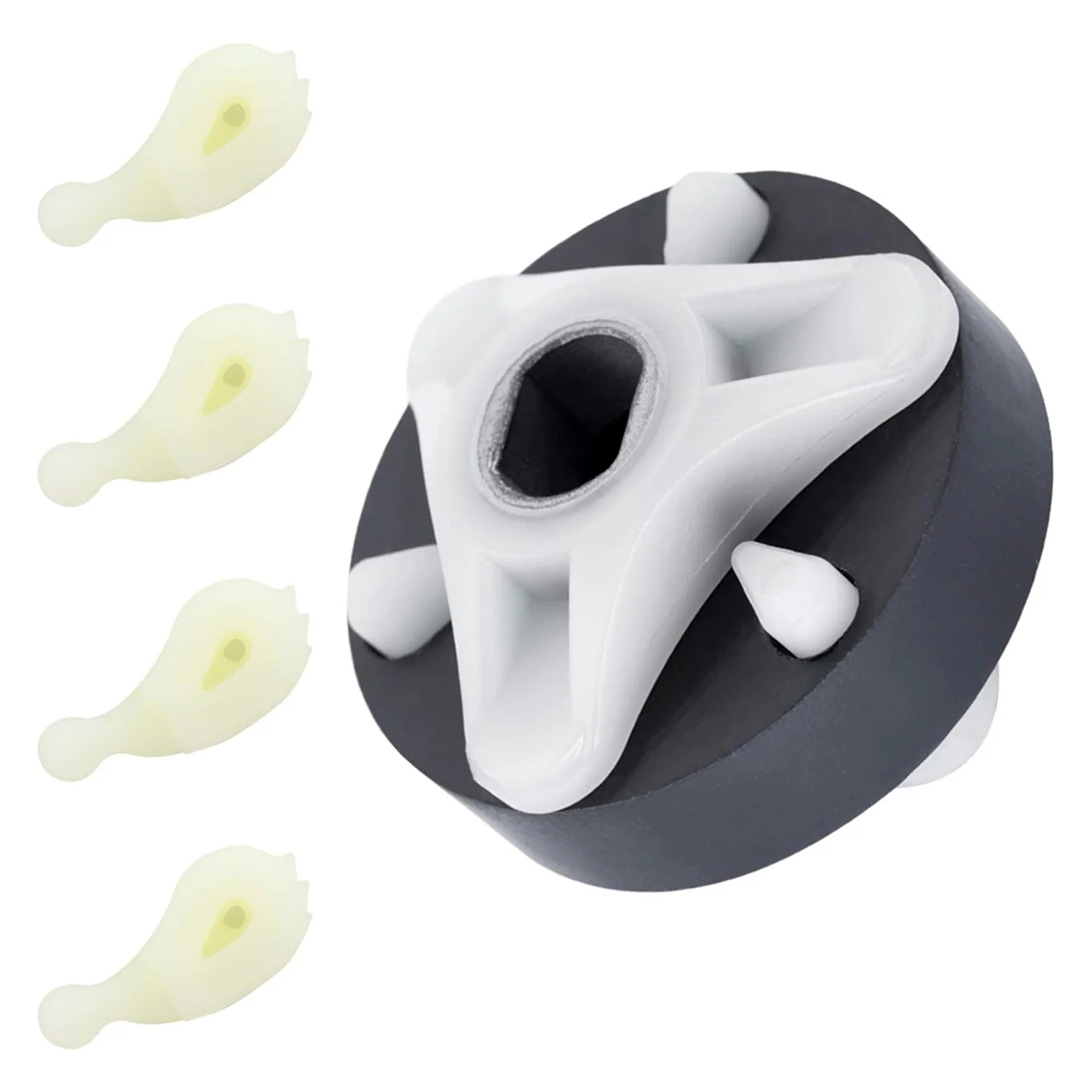

• Complete kit includes one motor coupling assembly and four agitator dogs.

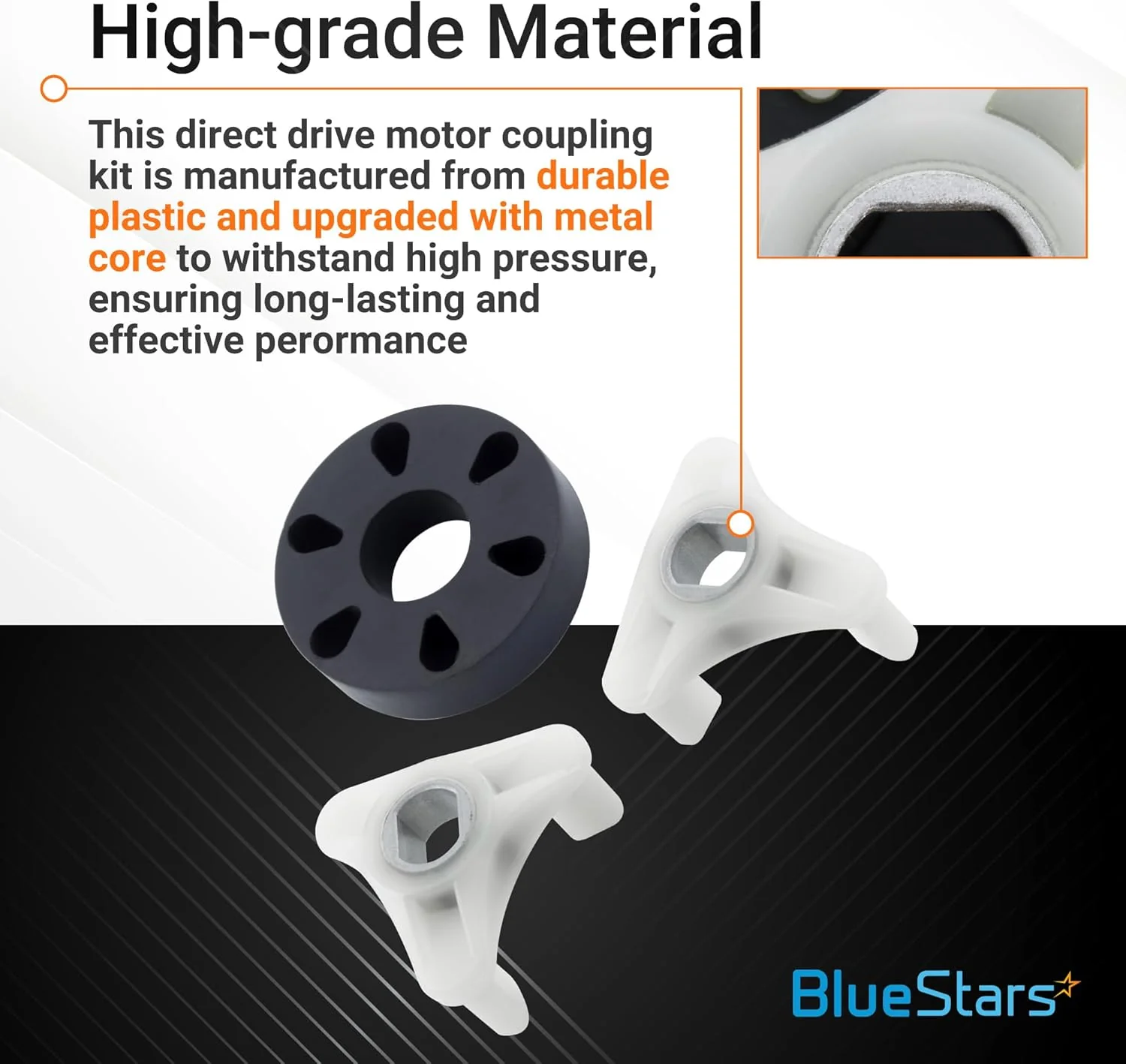

• Motor coupling features a reinforced metal core for increased durability.
• Directly connects the motor to the transmission in direct-drive washing machines.
• Agitator dogs engage the upper portion of the agitator for effective wash action.

Replaces / Cross-Reference Part Numbers

• Motor Coupling (285753A): AP3963893, PS1485646, 285753AVP, 1195967, 285753, 3352470, 3363664, 280152, 285743, ER285753
• Agitator Dogs (80040): AP3119063, PS388034, 80040VP, 285612, 285770, 3366877, 387091, 3109, AH388034, LP338

Compatibility & Fitment

• Designed for direct-drive, top-load washing machines.
• Compatible with specific models from brands including Whirlpool, Kenmore, KitchenAid, and Roper.

When to Replace

• Motor Coupling: Replace if the motor runs but the basket does not spin or agitate. A loud noise from the motor area often precedes failure.
• Agitator Dogs: Replace if the bottom of the agitator moves but the top part is stationary or moves weakly, leading to ineffective cleaning.

Installation Tips

• Disconnect the washer from all power and water supplies before starting service.
• Accessing the motor coupling typically requires removing the washer cabinet.
• Note the orientation of existing parts before removal to ensure correct assembly.
• Ensure the new agitator dogs are seated properly to allow for correct one-way directional movement.
