338906 Gas Dryer Flame Sensor - For Whirlpool Kenmore Maytag Dryers - Replaces WP338906

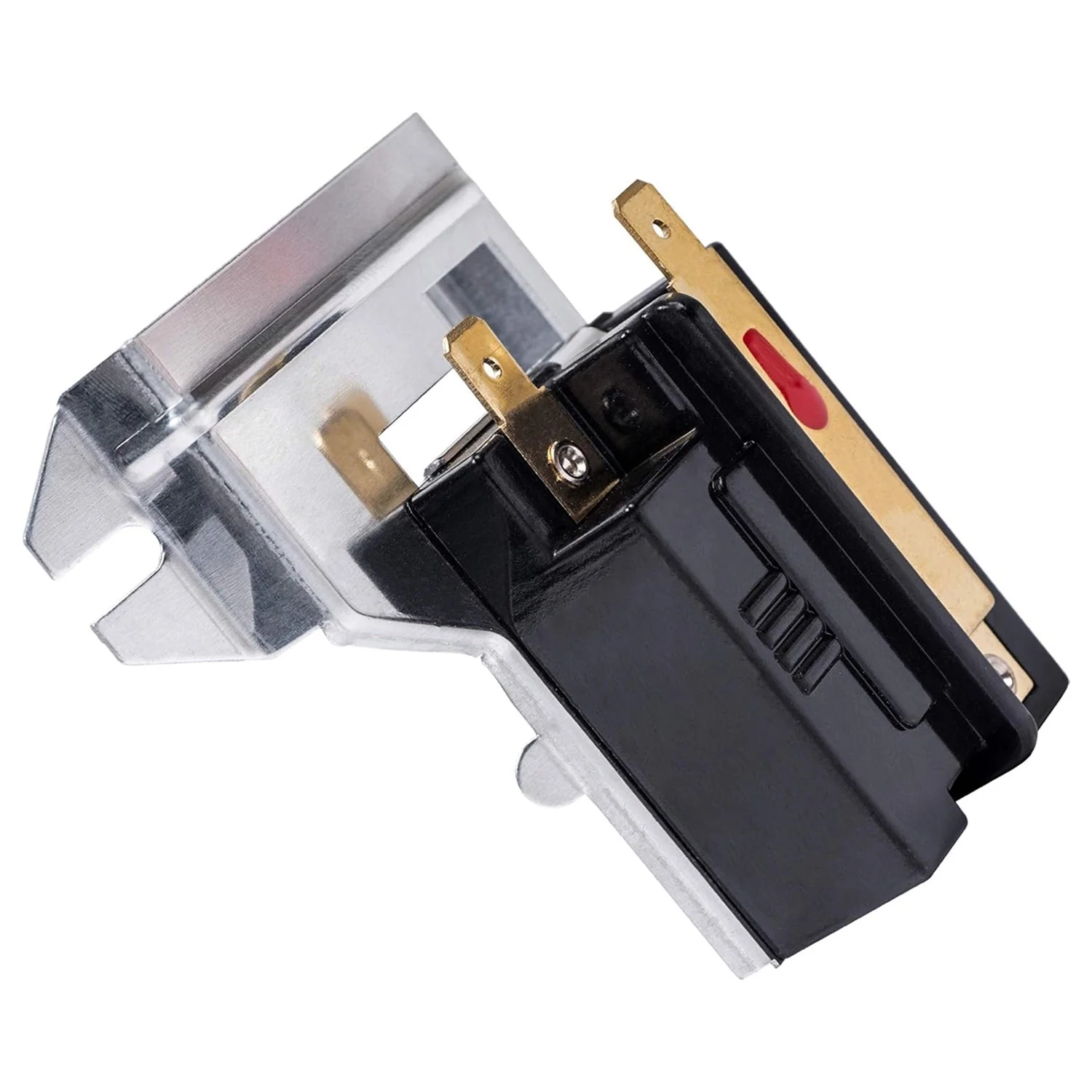

338906 Dryer Flame Sensor

Key Features

• Monitors the igniter and flame in gas dryers
• Signals the gas valve to open or close based on igniter temperature
• Located on the burner assembly, opposite the igniter
• Direct replacement for specified OEM parts

Replaces / Cross-Reference Part Numbers

• Whirlpool / Kenmore / Maytag: 338906, WP338906, 303377, WP338906VP
• Samsung: DC32-00008A, DE353
• AP6008294, PS11741429, EAP11741429

Compatibility & Fitment

• Fits various gas dryer models from brands including Whirlpool, Kenmore, Maytag, and KitchenAid
• Compatible with models such as 1CWD5100VQ0, 1CWGD5100VQ1, 1CWGD5200VQ0, and others

When to Replace

• Dryer does not heat
• Dryer heats intermittently
• Igniter glows, but the burner does not ignite
• Dryer starts but shuts off before the clothes are dry

Installation Tips

• Disconnect the dryer from power and shut off the gas supply before beginning the repair
• Access the sensor by removing the lower front access panel or the entire front panel
• The sensor is mounted to the burner funnel with a single screw
• Ensure the new sensor is securely installed and the wire harness is reconnected
