4392065 Dryer Repair Kit (Belt 341241 Idler 691366 Rollers 349241T) for Whirlpool Kenmore Admiral Amana

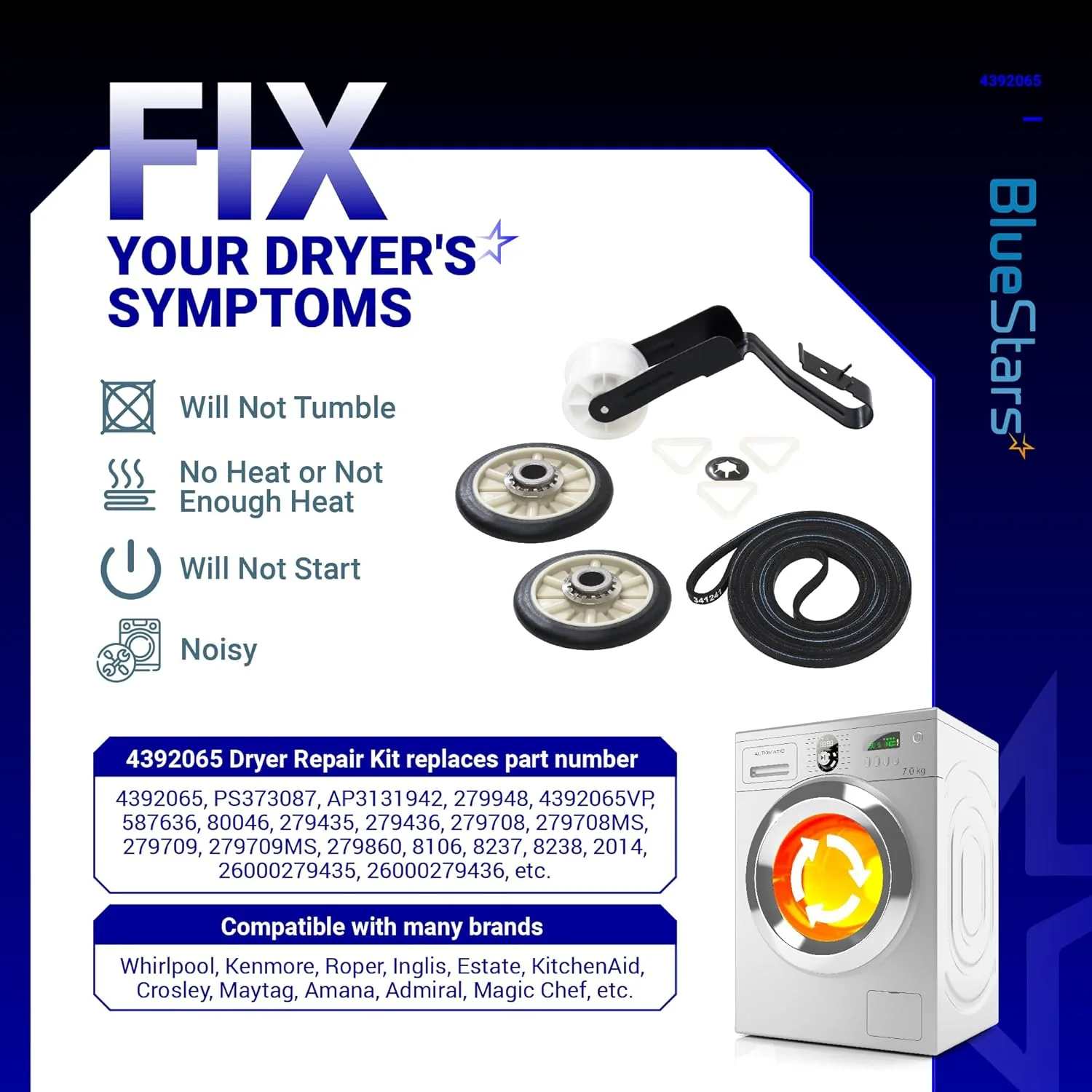

4392065 Dryer Repair Kit Included (Belt 341241 Idler 691366 Rollers 349241T)

Key Features

• Complete kit to address common dryer operational issues.

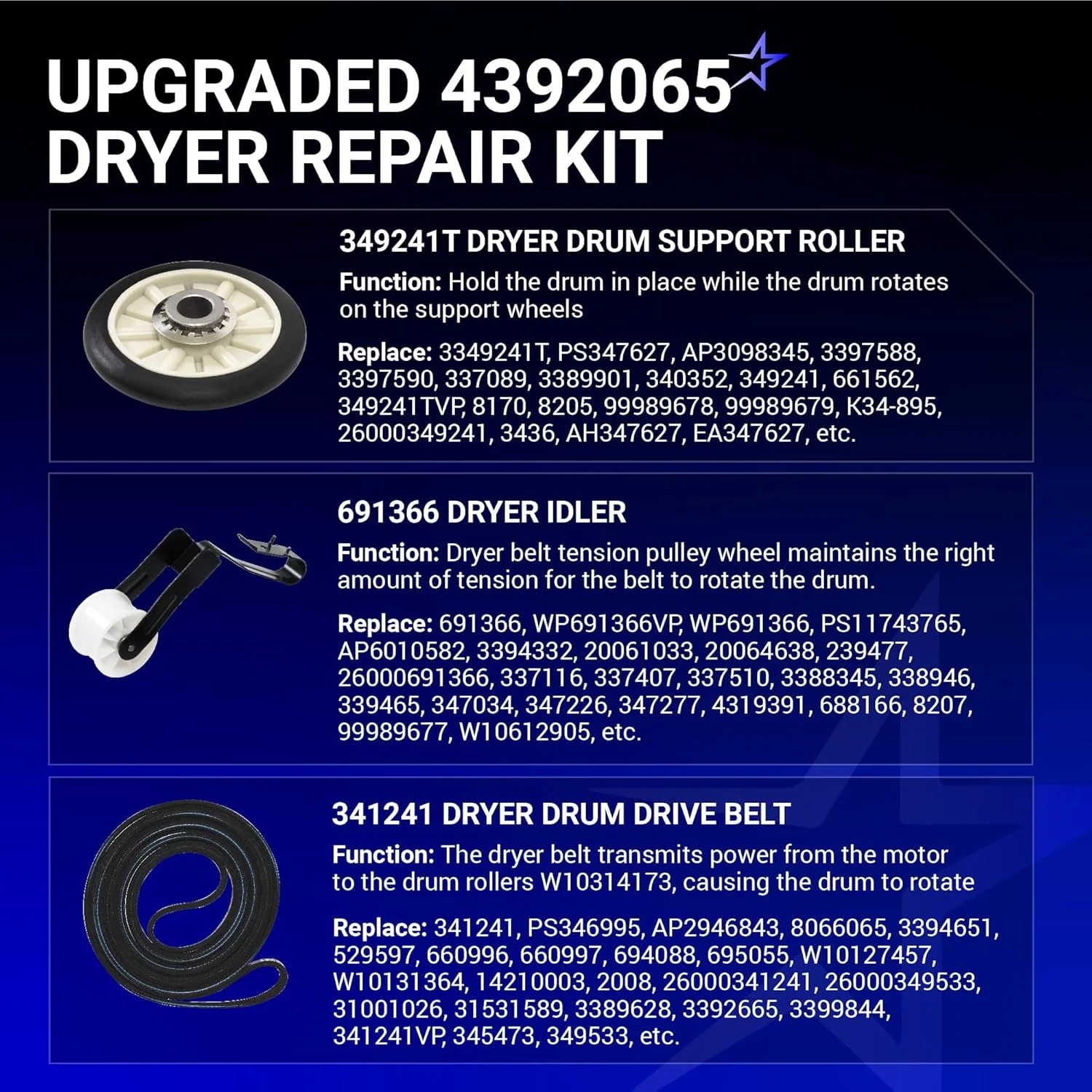

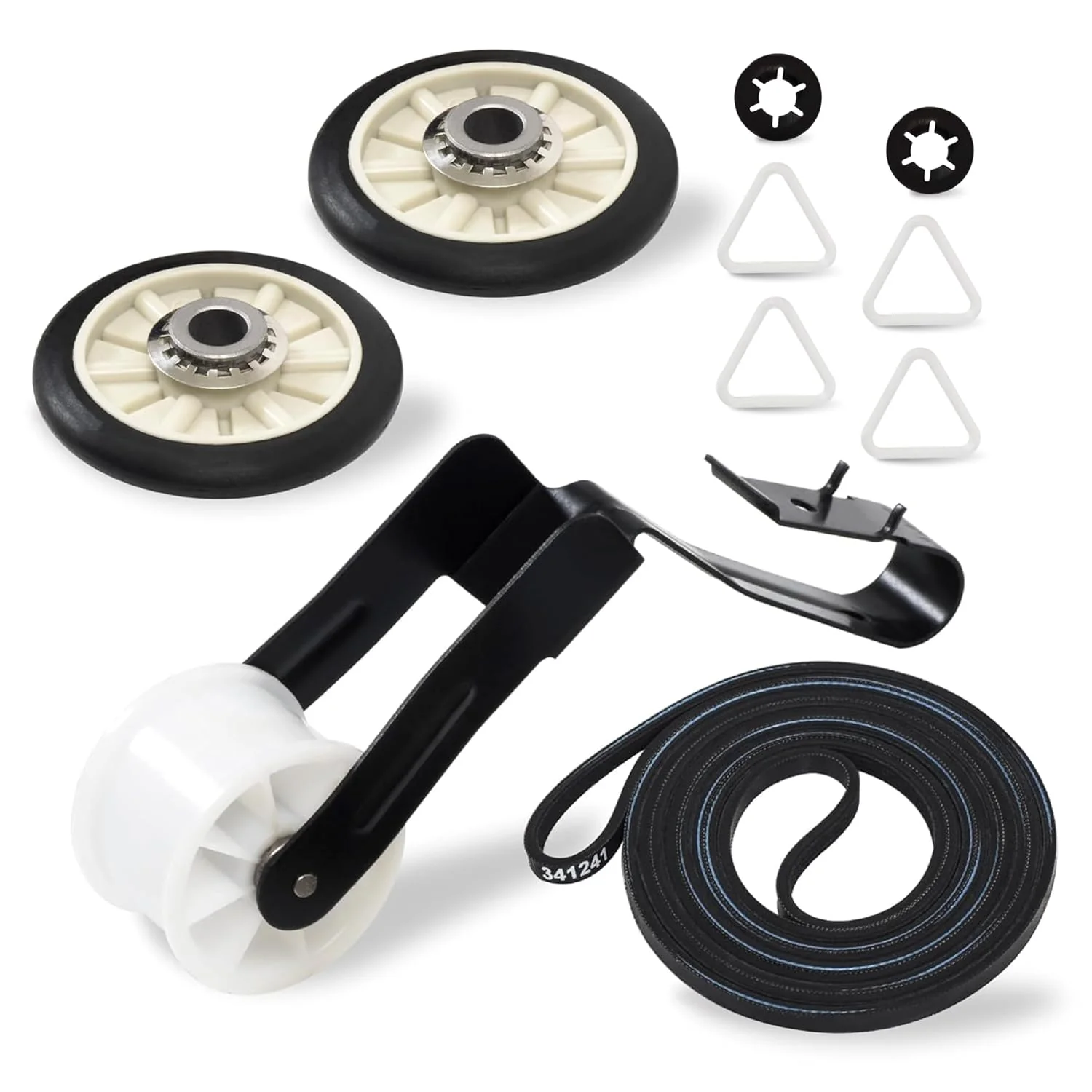

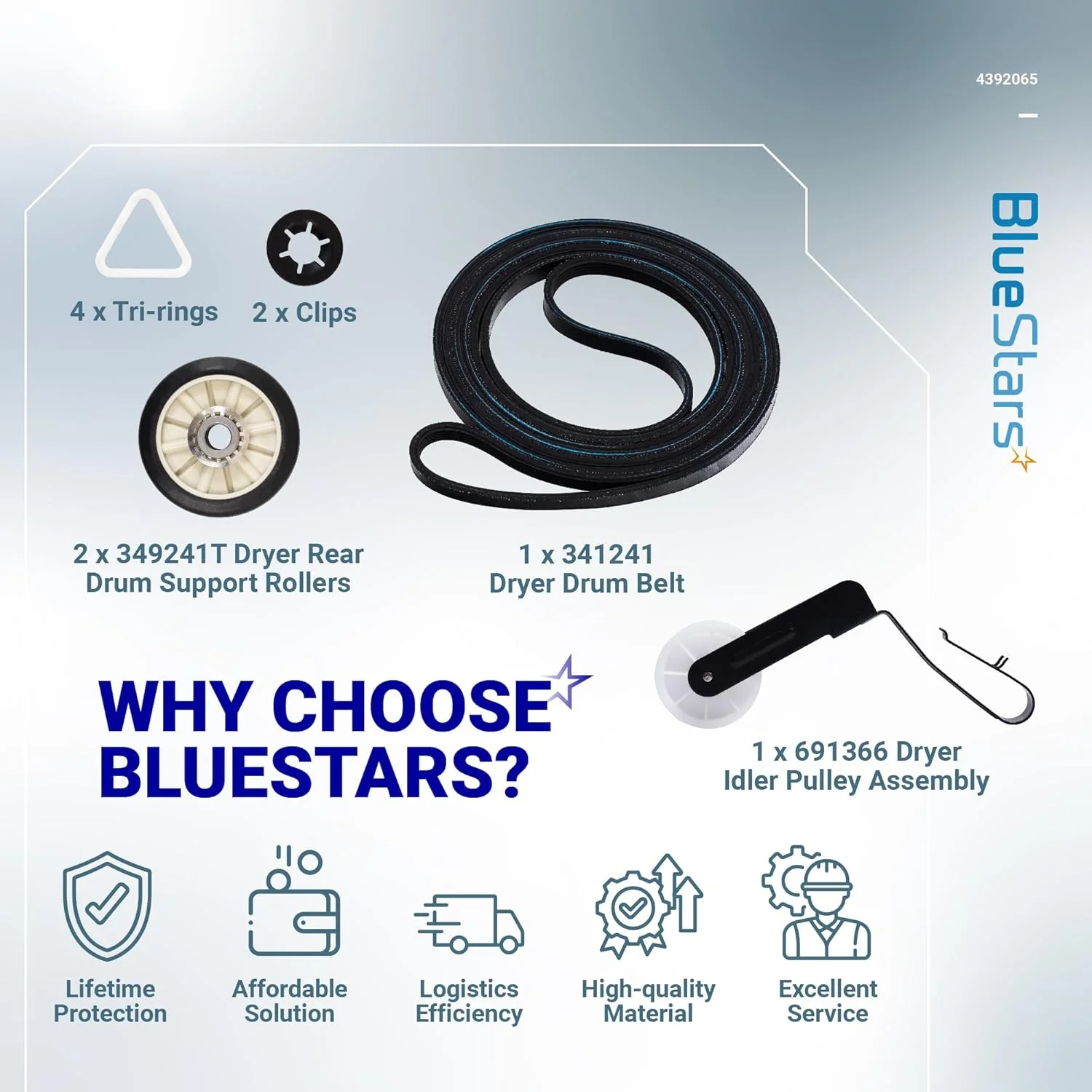

• Includes one 341241 drum belt, one 691366 idler pulley assembly, and two 349241T drum support rollers with hardware.

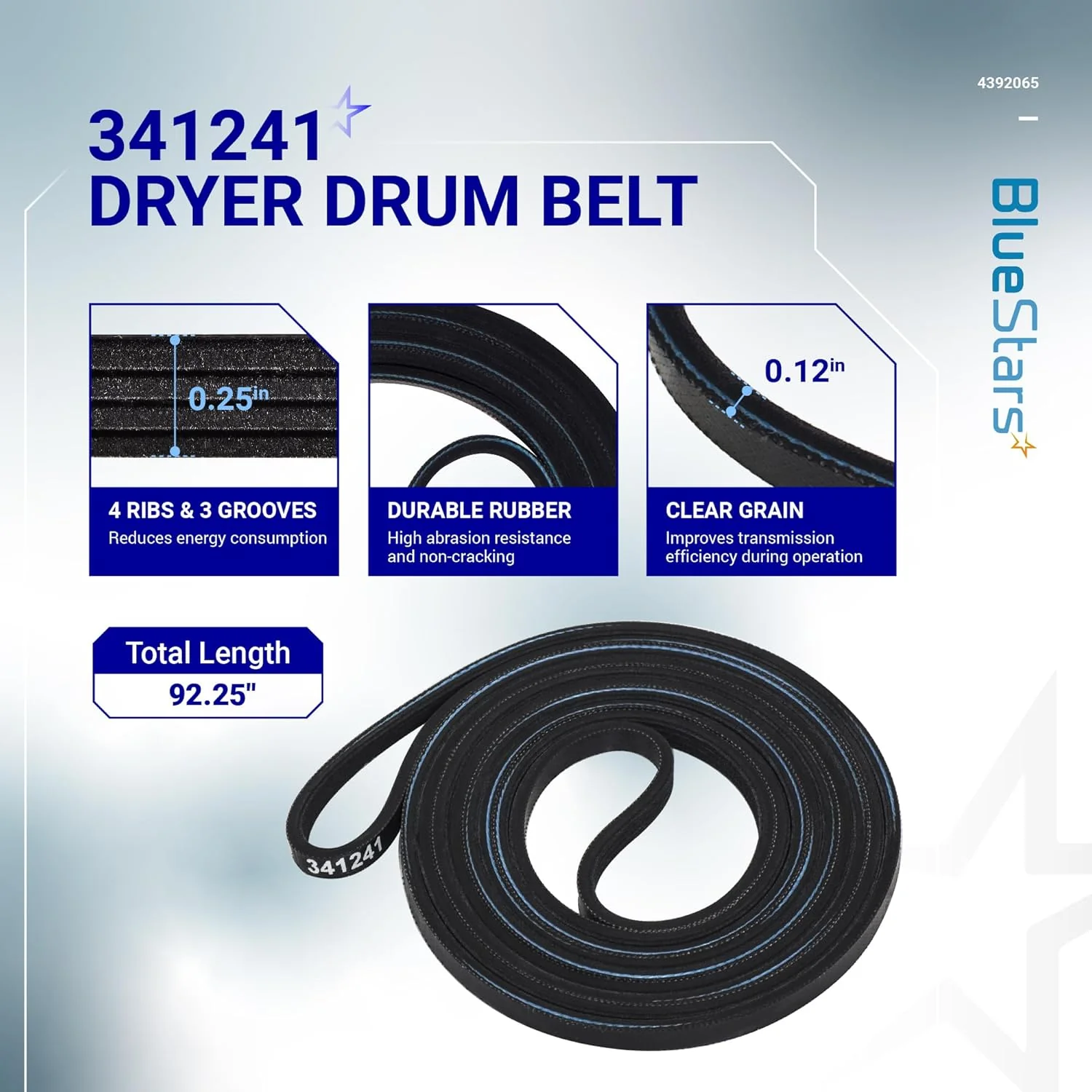

• Drum Belt (341241): 92 1/4 inches long, 1/4 inch wide, 4 ribs.

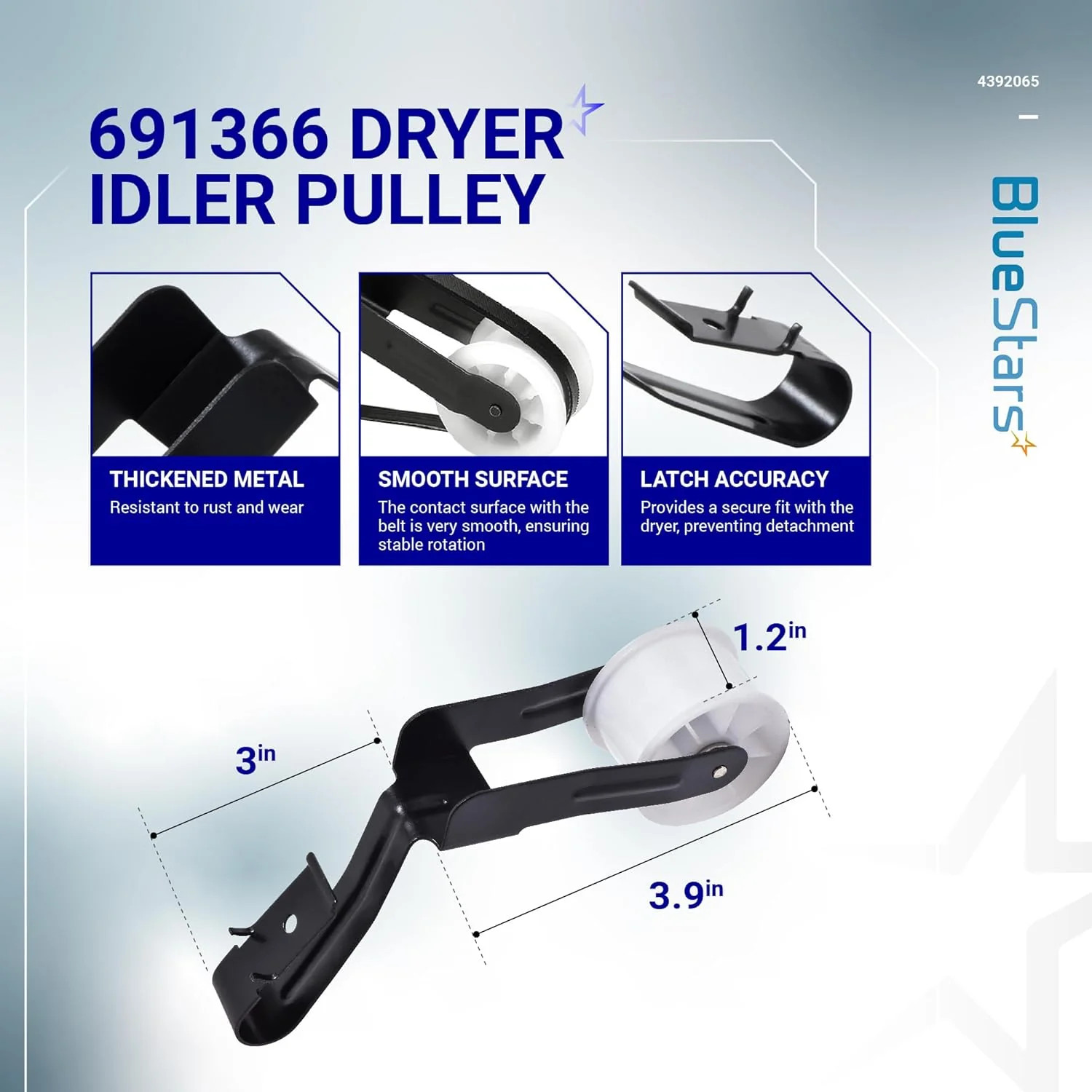

• Idler Pulley (691366): Maintains tension on the drum belt.

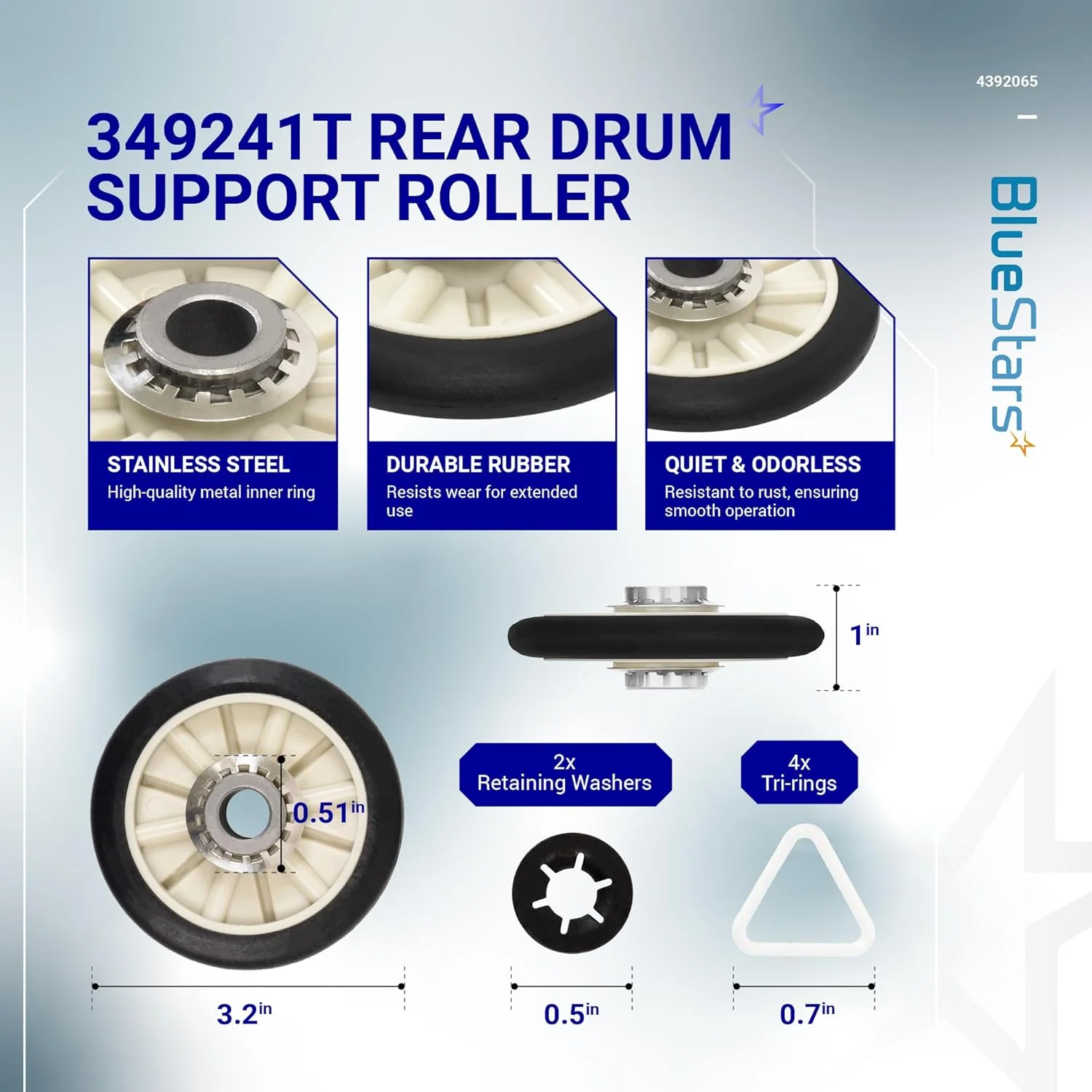

• Drum Rollers (349241T): Support the drum and allow it to rotate smoothly.

Replaces / Cross-Reference Part Numbers

• Kit (4392065): 4392065VP, AP3131942, PS373087, 279948, 587636, 80046, 2014, 279435, 279436, 279708, 279708MS, 279709, 279709MS
• Belt (341241): AP2946843, PS346995, 3394651, 3389628, 3392665, 3399844, 341241VP, 345473, 349533, 8066065, W10127457, W10131364
• Idler (691366): WP691366, AP6010582, PS11743765, W10612905, WP691366VP, 239477, 337116, 337407, 347034, 347226, 688166
• Rollers (349241T): AP6009947, PS11742418, WP349241T, 349241, 691366, 3388067, 6-3088670, 8283, 9503, 99002376

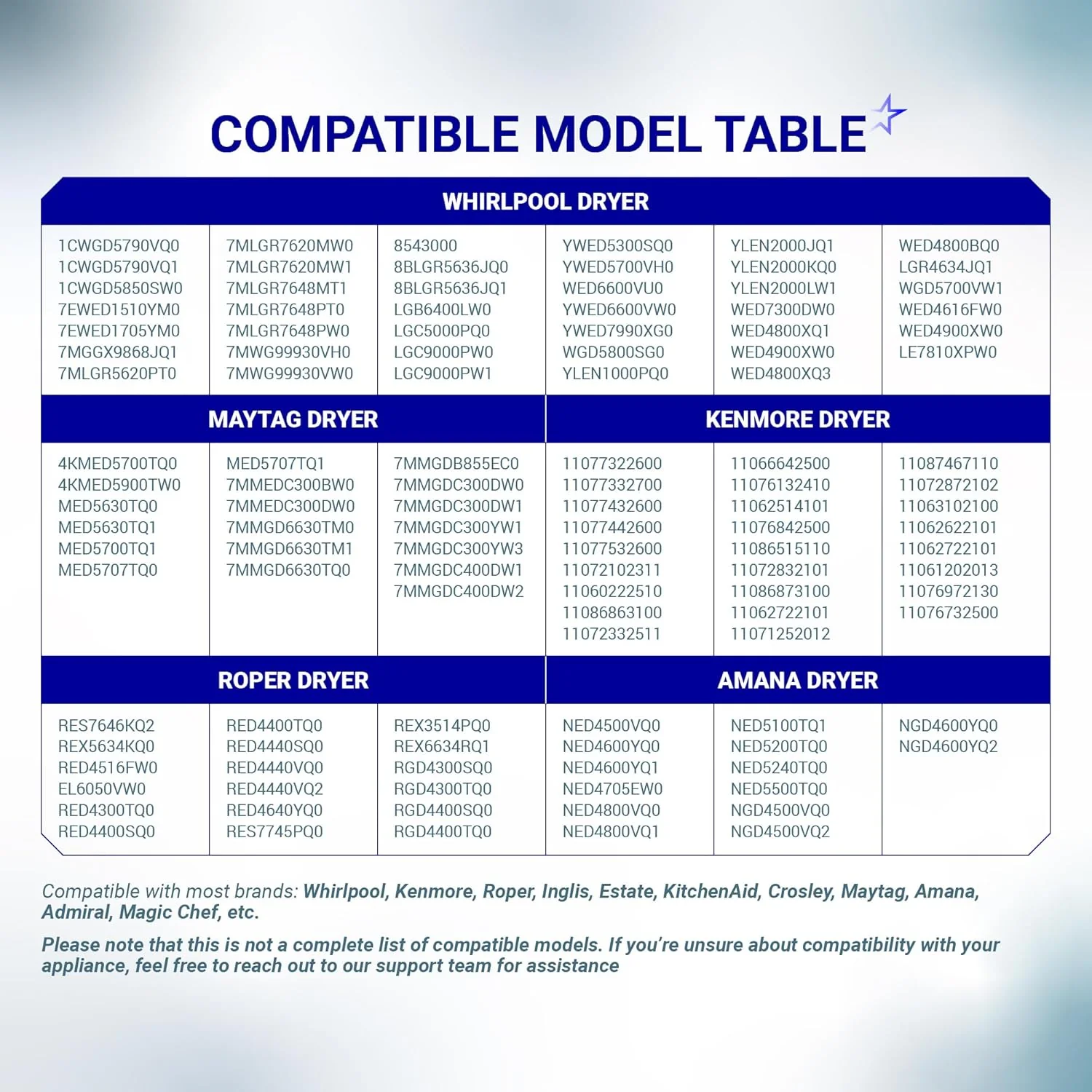

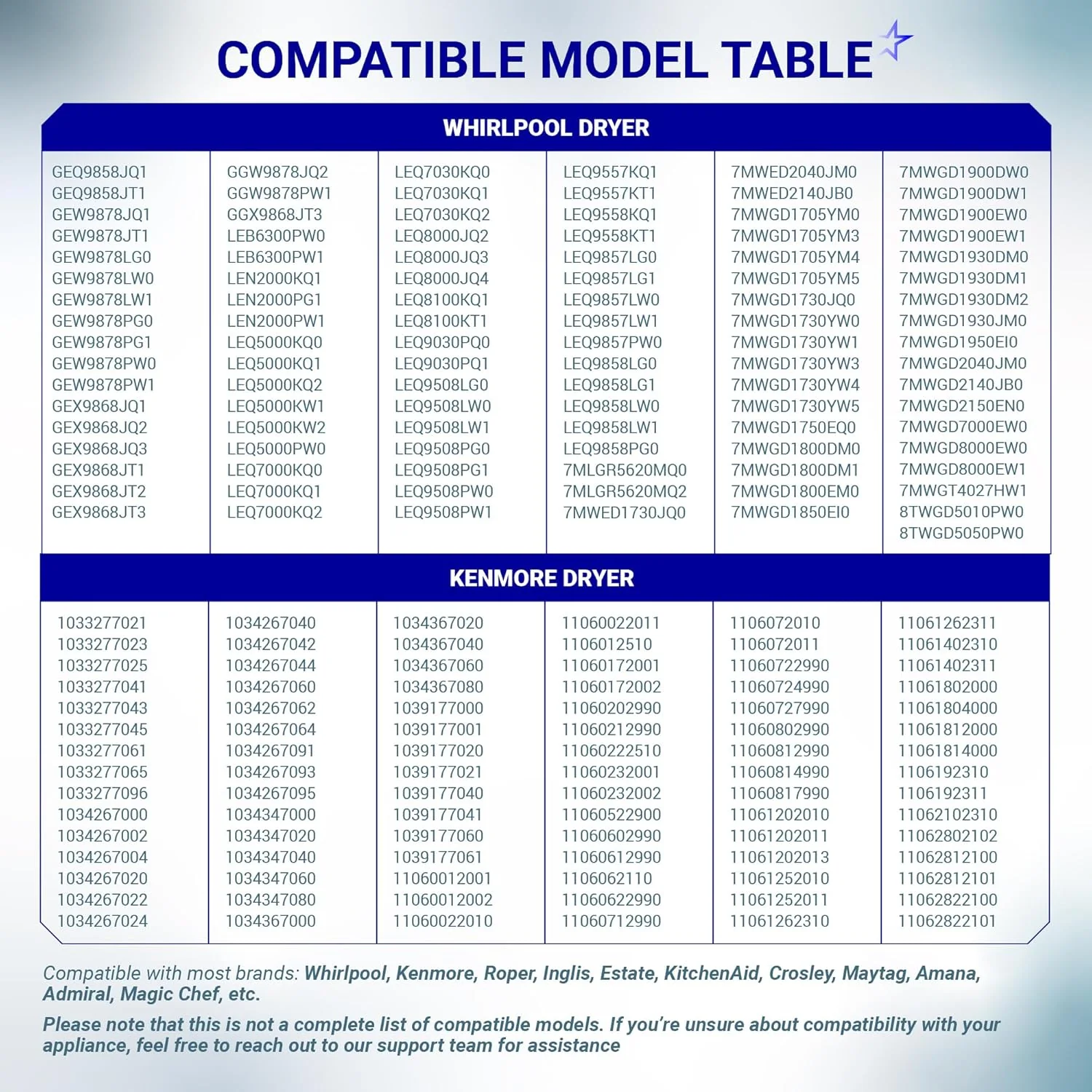

Compatibility & Fitment

• Designed for use with many 29-inch wide dryers with the lint screen located on top.
• Compatible with models from major brands including:
• Whirlpool
• Kenmore
• Sears
• Maytag
• Amana
• Roper


When to Replace

• Dryer produces squeaking, thumping, or rumbling noises.
• Drum fails to tumble or rotates intermittently.
• Dryer will not start.
• Black marks or residue are left on clothing.

Installation Tips

• Disconnect the dryer from its power source before beginning any repairs.
• Wear work gloves for safety.
• Clean any accumulated lint from the dryer cabinet during the repair.
• Ensure the new belt is installed with the ribbed side facing the drum.
