W10619951 Refrigerator Drain Tube for Whirlpool Maytag Kenmore KitchenAid Refrigerator

W10619951 Refrigerator Drain Tube

Key Features

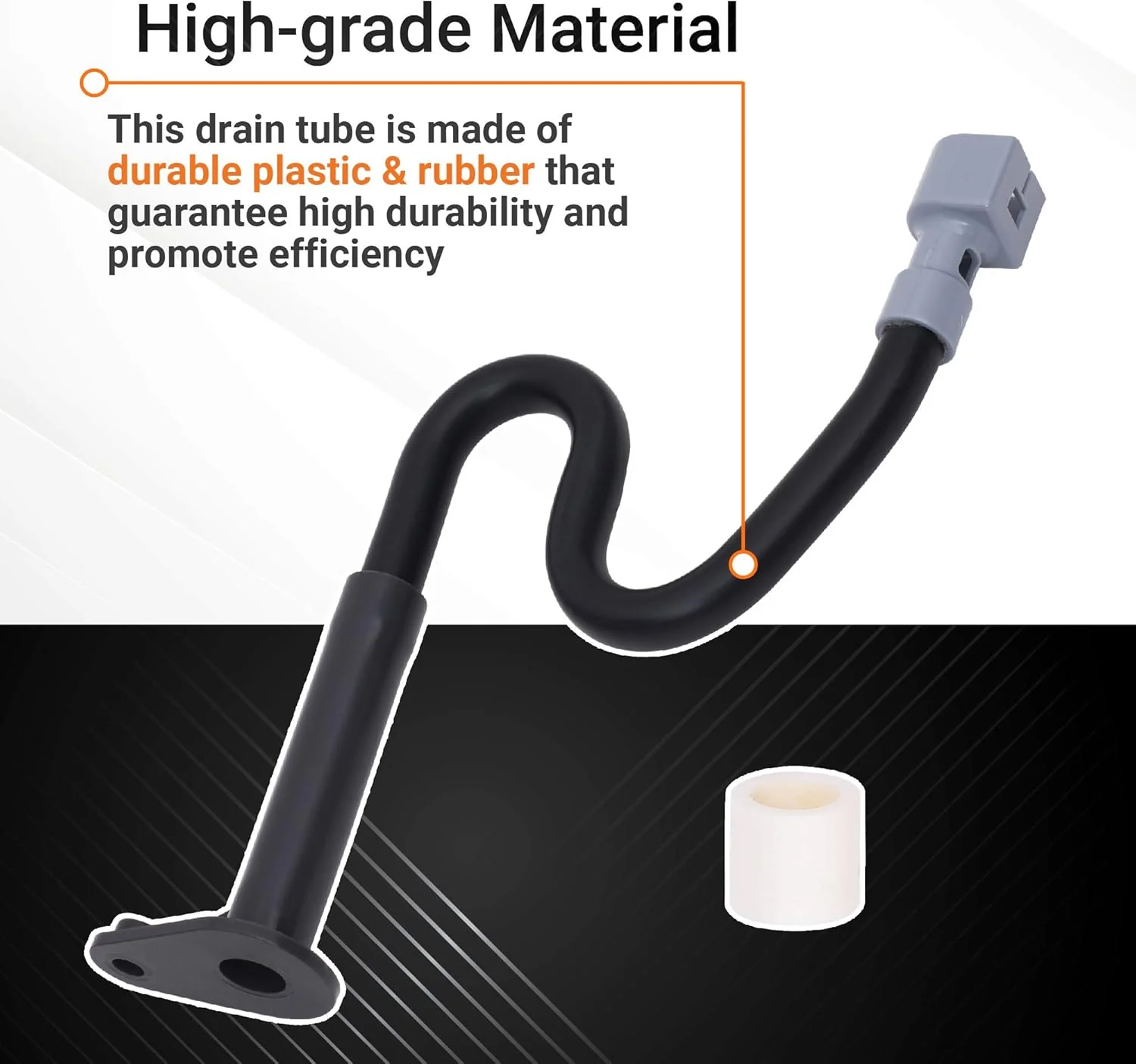

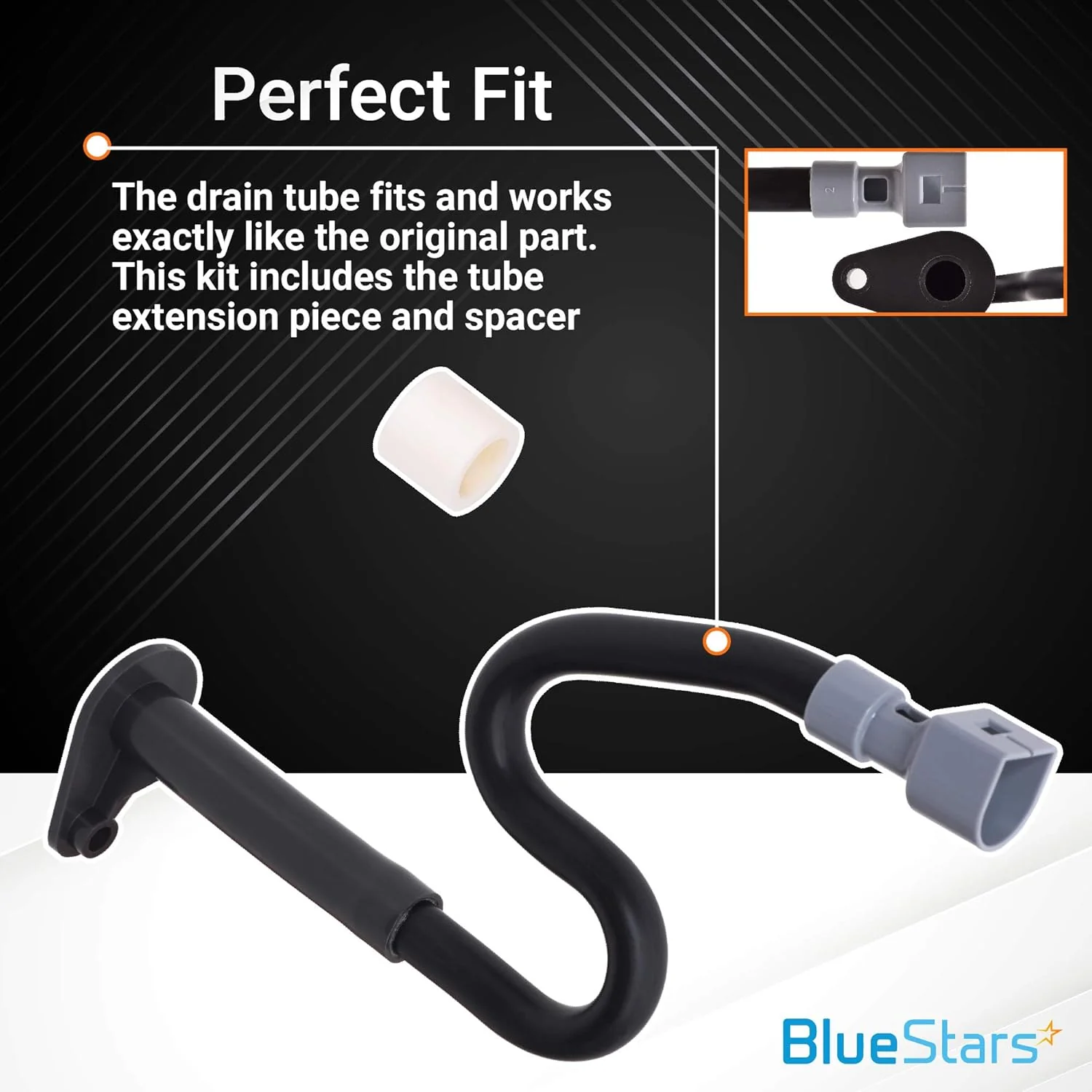

• Direct replacement drain tube assembly for refrigerators.
• Functions as a P-trap to prevent drain line freezing and odors.
• Channels defrost water from the evaporator coils to the drain pan.
• Updated design replaces older style nozzle and trough systems.

Replaces / Cross-Reference Part Numbers

• AP5780744
• PS8691807
• WPW10619951
• W10309238
• W10344402
• W10344401
• W10210987
• W10210988
• 2887289
• W10619972

Compatibility & Fitment

• Fits specific refrigerator models manufactured by Whirlpool, Kenmore, Maytag, and KitchenAid.
• Verify fitment with your refrigerator's model number before ordering.

When to Replace

• Water leaking or pooling inside the refrigerator compartment, often under the crisper drawers.
• Ice accumulation on the floor of the freezer section.
• Visible cracks, blockages, or damage to the existing drain tube.
• The defrost drain line is frequently clogged or frozen.

Installation Tips

• Disconnect the refrigerator from the power source before beginning installation.
• Access the drain tube from inside the refrigerator or freezer compartment.
• Ensure the tube is securely attached to both the defrost pan and the drain port to prevent leaks.
• Clear any ice or debris from the drain hole before installing the new tube.
